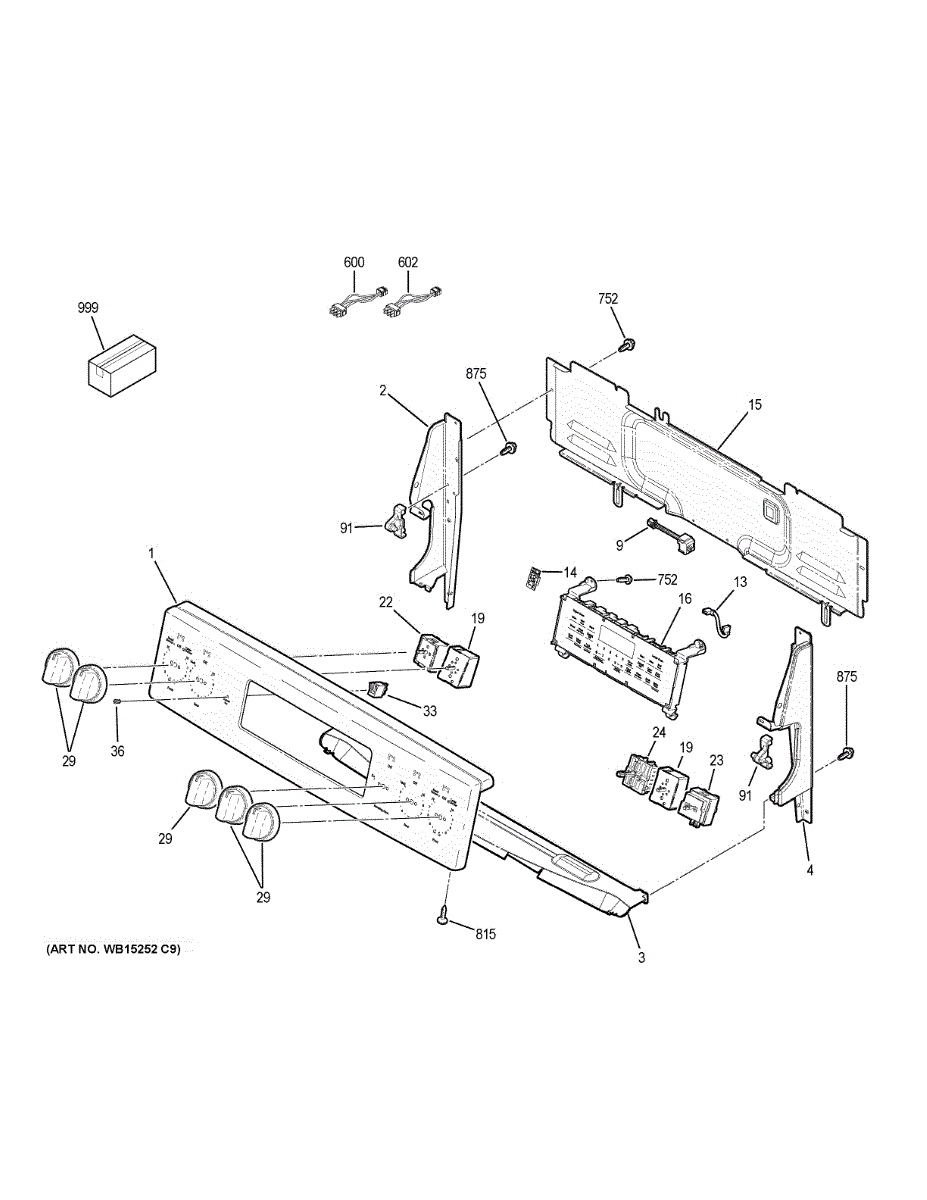

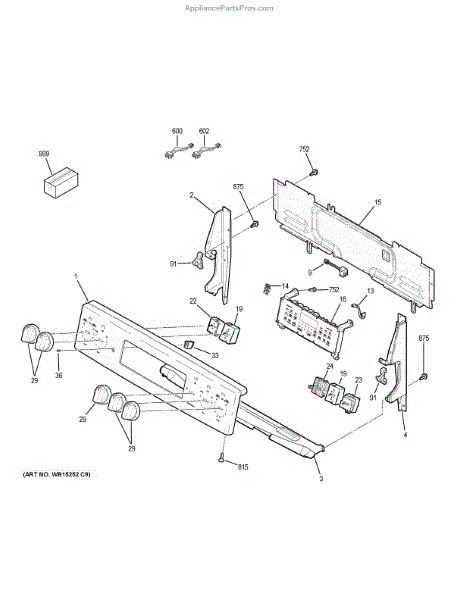

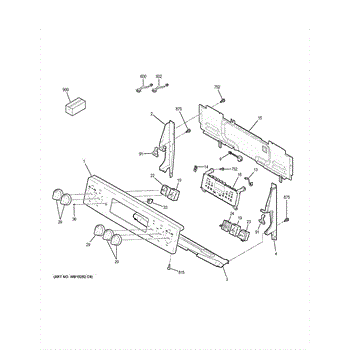

Parts for Ge PB930SJ4SS: Control Panel Parts

This control cover is the replacement trim that protects and finishes the range/oven control console, restoring a clean appearance and shielding the underlying switches and electronics from spills and debris. It fits where the control panel sits and helps keep controls accessible and protected. What it does:

• Covers and protects the control console and underlying switches from spills, food, and dust
• Restores a finished appearance to a damaged, cracked, or missing control trim
• Helps prevent accidental contact with control buttons and electronic components

• One control cover

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Removal/installation typically requires basic hand tools (screwdriver) to unfasten screws or clips
• Handle edges carefully; plastic trim can have sharp edges when damaged

This oven control and overlay assembly replaces the user interface and control board with a white LED display so you can restore oven clock, touchpad input and command display readability. It mounts to the console and connects to the main wiring harness. What it does:

• Provides the touchpad and LED display for setting temperature, timer and oven functions
• Processes user inputs and communicates commands to the oven's main control
• Commonly replaces a cracked/damaged overlay, unresponsive keys or a blank/erratic display
• Restores visible clock and function feedback when original control fails

• One oven control and overlay assembly (white LED)

• Disconnect power at the breaker before starting to avoid shock or damage
• Handle the display and overlay carefully to avoid scratching or bending
• Secure all screws and grounding as removed
• Test the oven functions and display before fully reassembling the console

This oven control and overlay assembly replaces the user interface and control board with a white LED display so you can restore oven clock, touchpad input and command display readability. It mounts to the console and connects to the main wiring harness. What it does:

• Provides the touchpad and LED display for setting temperature, timer and oven functions
• Processes user inputs and communicates commands to the oven's main control
• Commonly replaces a cracked/damaged overlay, unresponsive keys or a blank/erratic display
• Restores visible clock and function feedback when original control fails

• One oven control and overlay assembly (white LED)

• Disconnect power at the breaker before starting to avoid shock or damage
• Handle the display and overlay carefully to avoid scratching or bending
• Secure all screws and grounding as removed
• Test the oven functions and display before fully reassembling the console

The Range Surface Burner Control Switch is an OEM part for GE ranges. This switch manages the temperature of the surface burners on your range, providing the ability to adjust the heat level. Whether you're simmering sauces or boiling water, the control switch ensures precise temperature management, enhancing your cooking experience.

The causes of a faulty burner control switch often include prolonged use leading to wear on the electrical contacts, exposure to moisture causing short circuits, or physical damage from impact or excessive force when turning the knob.

Symptoms of a bad surface burner control switch:

• The burner not turning on or off
• Inability to adjust the heat level, with the burner staying at one temperature regardless of the knob setting.
• Intermittent burner function

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Surface Burner Switch is an OEM part for GE ranges and cooktops, designed to control the heat level of the surface burners. This switch allows users to adjust the temperature of the burners for boiling, simmering, or frying.

Causes for replacement may include electrical issues within the switch, physical damage, or wear and tear from regular use. A faulty switch can lead to cooking frustrations, potential safety hazards due to uncontrolled heat, and increased energy consumption.

Symptoms of a bad Surface Burner Switch include:

• Burner not heating to the set level
• Burner heating inconsistently or not at all
• The switch feeling loose or failing to click into position

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Infinite Switch Control is an OEM component specially designed for GE slide-in electric ranges. Located at the center of the control panel, this switch regulates power to the infinite-style surface heating elements.

Causes of a bad infinite switch control include worn or defective internal contact positions, damaged plastic body from appliance abuse, or disconnected wiring connections.

Symptoms of a bad infinite switch control include:

• Inability to adjust burner temperature settings properly
• Flames remain lit on infinite elements despite adjustments
• Elements failing to power on or heat as expected
• Control switch stuck in a single position

As a high-use component, switch mechanisms endure continuous cycling that can lead to degradation. This genuine GE replacement provides a precise power regulation solution. Compatible GE slide-in ranges include Monogram, Café, and select KitchenAid built-in electric models.


The Switch Infinite Control is an OEM part for GE ranges. It acts as a critical regulator for the temperature settings on electric dual-element burners, allowing users to adjust the heat level accurately. This component ensures that the electric burners heat up to the desired temperature and maintain it consistently for optimal cooking results.

Symptoms of a bad Switch Infinite Control include:

• Burners not heating to the set temperature
• Inability to adjust the heating level of burners
• Burners heating unevenly or excessively

Causes of a bad switch can include internal component failure due to overheating, wear and tear from frequent use, or electrical faults within the switch mechanism.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This pilot indicator light mounts in the control panel and illuminates to show when a heating circuit is active. Replace a failed or damaged pilot light to restore a clear "on" reminder and improve everyday visibility around hot surfaces.

• Provides a visual "ON" signal when the corresponding control is turned on
• Common symptoms: indicator won't light, is dim or flickers, or the lens/housing is damaged
• Restores a clear status cue to help you see when heat is active
• Direct replacement for the original pilot light assembly

• Disconnect power at the breaker before servicing
• Remove back cover or control panel trim to access the light
• Note wire positions and transfer them to the new light one at a time
• Seat the light securely in the panel opening, reassemble, and test

The Light Lens is an OEM part for GE gas ranges. It is the protective glass cover that shields the oven light on the control board.

Causes of a bad light lens include cracks, chips or breaks that compromise its protective function.

Symptoms of a bad light lens include:

• Broken or missing lens exposing the interior light bulb
• Inability to illuminate on the board
• Risk of bulb breakage from impacts or debris on the panel

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models.

This hinge pin secures the rangetop to the cooktop assembly, providing a reliable pivot point for lifting and lowering the top. It restores proper alignment and stable movement for safe, everyday use. What it does

• Replaces a worn or damaged hinge pin that can cause the rangetop to wobble, stick, or sit unevenly.
• Restores smooth pivot action when opening or closing the cooktop/top.
• Helps maintain proper alignment between the rangetop and the range frame to prevent binding.
• Works with the original hinge components to ensure a secure, stable connection.

• One hinge pin for the rangetop.

• Basic hand tools required; follow the range manufacturer's disassembly steps.
• Disconnect power supply and gas and ensure the appliance is cool before beginning work.
• Handle edges and springs cautiously; support the rangetop during removal/installation to prevent injury or damage.

This wire harness connects an oven or cooktop infinite switch to the appliance's power and controls, restoring reliable burner control and electrical continuity. Designed to match the original harness routing and connectors. What it does:

• Provides the electrical connection between the infinite control switch and the appliance wiring
• Restores proper burner control when a worn or damaged harness causes loss of power to a burner
• Can stop intermittent heating, no-heat, or unresponsive burner control symptoms related to broken or shorted wiring
• Uses OEM-style connectors and lengths to align with factory switch and terminal locations

• Disconnect power before beginning any repair
• Compare the new harness to the old one for connector type and routing before installation
• Route wires to avoid pinch points and heat sources; secure with factory clips or ties
• If connector pins are corroded or damaged, replace connectors or the affected components to ensure a solid connection

This wire harness routes signals between the appliance control board and CAT module, restoring reliable electrical connections for control functions. It's a direct-fit replacement when the original harness is damaged or worn. What it does:

• Carries power and signal wires between the control board and CAT module to enable control communication
• Helps resolve intermittent or no-response control panel behavior caused by frayed, burned, or broken harness wiring
• Maintains proper connector alignment and secure electrical contacts for consistent operation
• Replaces a visibly damaged or corroded harness to prevent shorts and restore functionality

• Disconnect power before inspecting or replacing the harness to avoid shock or shorting components
• Inspect connectors and mating pins for damage; replace harness if insulation, terminals, or clips are compromised
• Route harness away from heat sources and moving parts; secure with existing clips or ties

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

This silicon controlled rectifier (SCR) is a replacement power-control semiconductor that helps regulate heating or motor circuits in compatible appliances. Restores controlled switching for stable operation and consistent performance. What it does:

• Controls power delivery to heating elements or motors by switching current on and off
• Helps correct symptoms such as intermittent heating, burners or motors that won't respond, or erratic operation
• Replaces a failed or shorted SCR to restore proper control functionality
• Operates as part of the appliance's control/regulator circuitry to manage current flow safely

• Disconnect power (unplug appliance or switch off circuit breaker) before servicing
• Observe ESD precautions and avoid touching semiconductor contacts; handle by the body or mounting tab
• Verify correct replacement orientation and secure mounting; match wiring/terminal locations exactly

Black. 8-18 AB HXW 3/8
