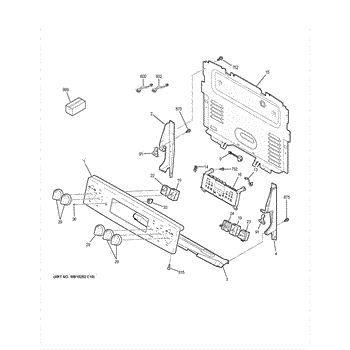

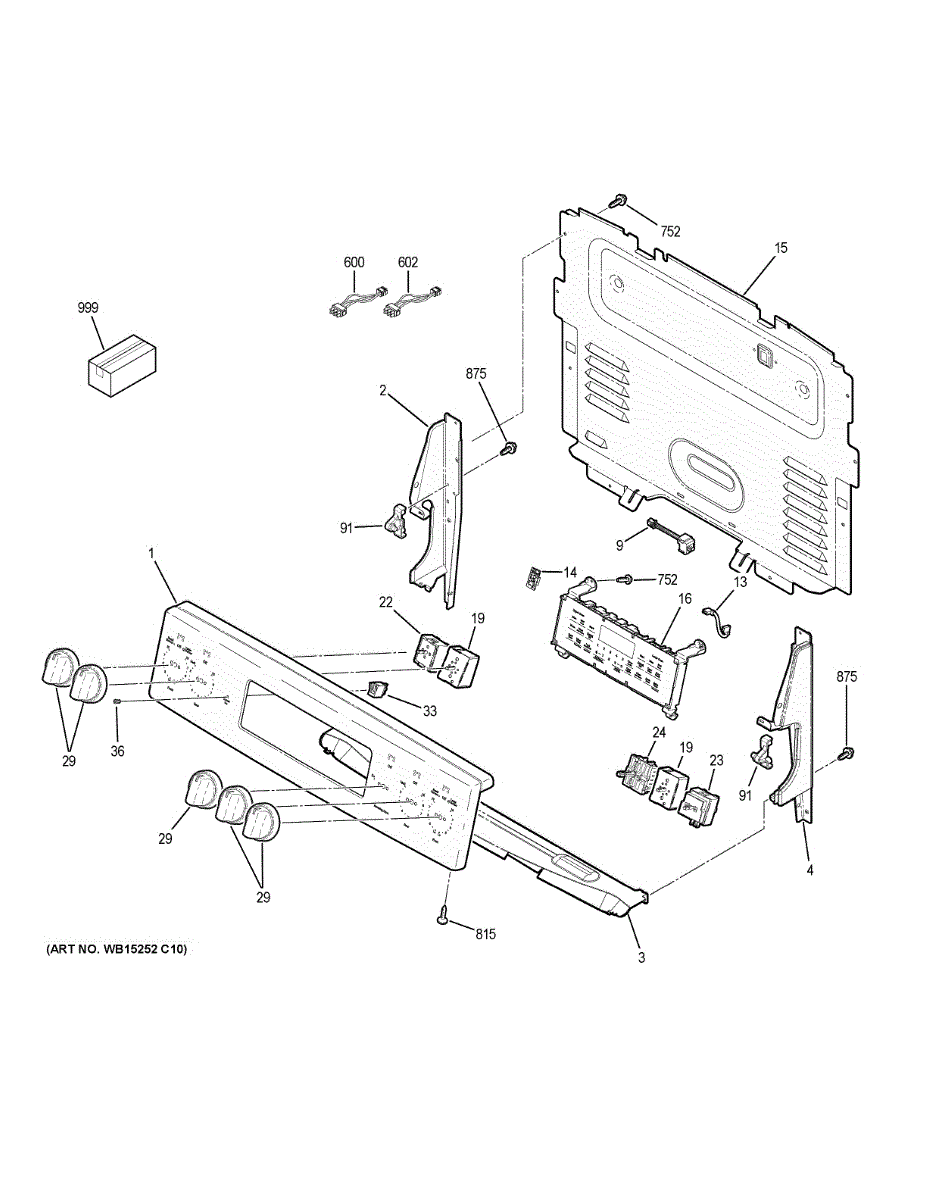

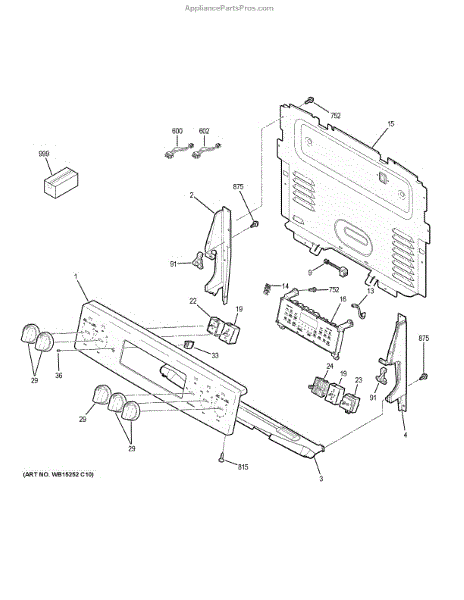

Parts for Ge PB930SL1SS: Control Panel Parts

Trim and cap assembly for electric ranges. Covers and finishes edges around cooktop or control panel. Replace if cracked, chipped, discolored, or missing.

The control panel End Plate (Left) is an OEM part for GE electric ranges. It forms a barrier along the back left edge of the control panel area providing structural reinforcement and protection.

Over time, end plates can sustain damage due to n

Right-hand end panel for electric ranges. Covers and protects the side of your range. Replace if cracked, scratched, or damaged for a clean appearance.

Burner won't adjust temperature or stuck on high? This surface burner control switch restores heat control. Quick 10-minute fix with basic tools.

Burner won't turn off or stays on when set to off? This surface burner infinite switch controls heat levels. Takes 10-15 minutes to replace.

Fix burner stuck on high or won't heat properly. This infinite switch control regulates surface element power. Direct OEM replacement, moderate DIY.

Fix burners stuck on high or won't adjust temperature with this infinite control switch. Controls dual-element burner heat settings. 30-min DIY fix.

Range indicator light signals when heating elements are active. Replace when light fails to illuminate or is damaged to restore visibility and safety.

Clear protective lens for range indicator lights. Replace when cracked, discolored, or missing to restore visibility of cooktop status lights. Verify fit with your range model number.

This hinge pin secures the rangetop to the cooktop assembly, providing a reliable pivot point for lifting and lowering the top. It restores proper alignment and stable movement for safe, everyday use. What it does

• Replaces a worn or damaged hinge pin that can cause the rangetop to wobble, stick, or sit unevenly.
• Restores smooth pivot action when opening or closing the cooktop/top.
• Helps maintain proper alignment between the rangetop and the range frame to prevent binding.
• Works with the original hinge components to ensure a secure, stable connection.

• One hinge pin for the rangetop.

• Basic hand tools required; follow the range manufacturer's disassembly steps.
• Disconnect power supply and gas and ensure the appliance is cool before beginning work.
• Handle edges and springs cautiously; support the rangetop during removal/installation to prevent injury or damage.

This wire harness routes signals between the appliance control board and CAT module, restoring reliable electrical connections for control functions. It's a direct-fit replacement when the original harness is damaged or worn. What it does:

• Carries power and signal wires between the control board and CAT module to enable control communication
• Helps resolve intermittent or no-response control panel behavior caused by frayed, burned, or broken harness wiring
• Maintains proper connector alignment and secure electrical contacts for consistent operation
• Replaces a visibly damaged or corroded harness to prevent shorts and restore functionality

• Disconnect power before inspecting or replacing the harness to avoid shock or shorting components
• Inspect connectors and mating pins for damage; replace harness if insulation, terminals, or clips are compromised
• Route harness away from heat sources and moving parts; secure with existing clips or ties

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance component

This silicon controlled rectifier (SCR) is a replacement power-control semiconductor that helps regulate heating or motor circuits in compatible appliances. Restores controlled switching for stable operation and consistent performance. What it does:

• Controls power delivery to heating elements or motors by switching current on and off
• Helps correct symptoms such as intermittent heating, burners or motors that won't respond, or erratic operation
• Replaces a failed or shorted SCR to restore proper control functionality
• Operates as part of the appliance's control/regulator circuitry to manage current flow safely

• Disconnect power (unplug appliance or switch off circuit breaker) before servicing
• Observe ESD precautions and avoid touching semiconductor contacts; handle by the body or mounting tab
• Verify correct replacement orientation and secure mounting; match wiring/terminal locations exactly

Black. 8-18 AB HXW 3/8
