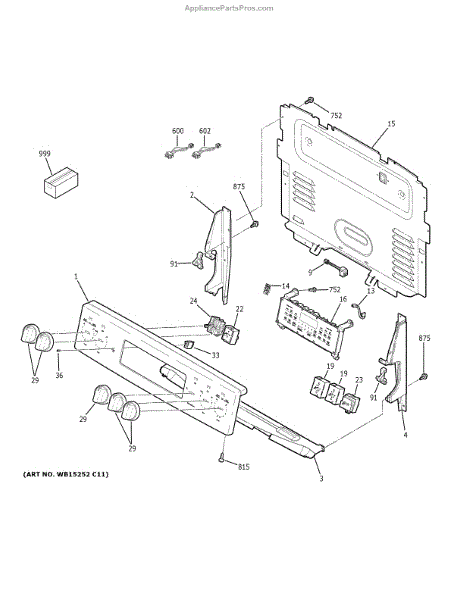

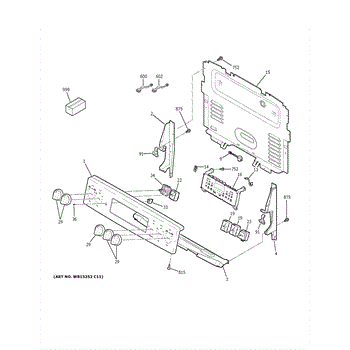

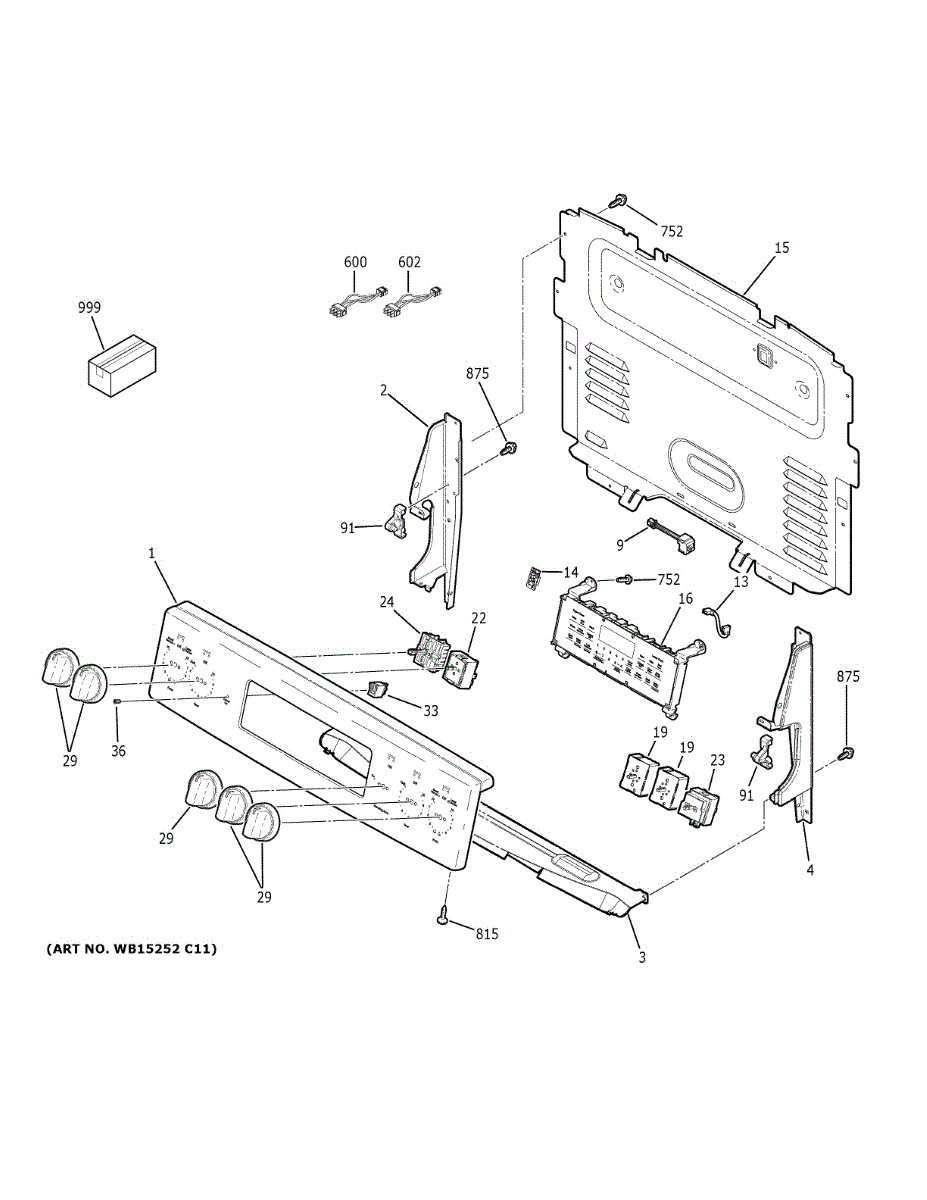

Parts for Ge PB930SL5SS: Control Panel Parts

The control panel End Plate (Left) is an OEM part for GE electric ranges. It forms a barrier along the back left edge of the control panel area providing structural reinforcement and protection.

Over time, end plates can sustain damage due to normal wear and tear of using range buttons/dials daily as well as impacts from accidental bumps. Causes may include operation fatigue plus occasional mishandling.

Causes of a bad end plate include:

• Dents, scratches or cracks in the protective barrier surface
• Loosened mounting fasteners holding it securely
• Reduced control panel integrity and rigidity over long use
• Exposure of fragile internal electronics to potential damage

This exact GE replacement part also fits Hotpoint, RCA and select Kenmore models.

This electrical jumper links two terminals within the appliance's wiring to restore proper continuity for the affected circuit. Replace a burnt, damaged, or missing jumper to bring the related function back to reliable operation.

• Bridges terminals to complete or modify an electrical circuit as designed by the manufacturer
• Helps address symptoms like a specific feature not working, intermittent operation, or no power to a component
• Replace if the original shows heat damage, broken leads, or loose connections
• Direct replacement for the original jumper used in the wiring harness

• Disconnect power at the breaker or unplug the appliance before servicing
• Use your model's wiring diagram to locate the correct jumper
• Label/photograph wire positions and transfer one connection at a time
• Ensure connectors are fully seated; do not alter the factory wiring configuration

The Surface Burner Switch is an OEM part for GE ranges and cooktops, designed to control the heat level of the surface burners. This switch allows users to adjust the temperature of the burners for boiling, simmering, or frying.

Causes for replacement may include electrical issues within the switch, physical damage, or wear and tear from regular use. A faulty switch can lead to cooking frustrations, potential safety hazards due to uncontrolled heat, and increased energy consumption.

Symptoms of a bad Surface Burner Switch include:

• Burner not heating to the set level
• Burner heating inconsistently or not at all
• The switch feeling loose or failing to click into position

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Infinite Switch Control is an OEM component specially designed for GE slide-in electric ranges. Located at the center of the control panel, this switch regulates power to the infinite-style surface heating elements.

Causes of a bad infinite switch control include worn or defective internal contact positions, damaged plastic body from appliance abuse, or disconnected wiring connections.

Symptoms of a bad infinite switch control include:

• Inability to adjust burner temperature settings properly
• Flames remain lit on infinite elements despite adjustments
• Elements failing to power on or heat as expected
• Control switch stuck in a single position

As a high-use component, switch mechanisms endure continuous cycling that can lead to degradation. This genuine GE replacement provides a precise power regulation solution. Compatible GE slide-in ranges include Monogram, Café, and select KitchenAid built-in electric models.


The Switch Infinite Control is an OEM part for GE ranges. It acts as a critical regulator for the temperature settings on electric dual-element burners, allowing users to adjust the heat level accurately. This component ensures that the electric burners heat up to the desired temperature and maintain it consistently for optimal cooking results.

Symptoms of a bad Switch Infinite Control include:

• Burners not heating to the set temperature
• Inability to adjust the heating level of burners
• Burners heating unevenly or excessively

Causes of a bad switch can include internal component failure due to overheating, wear and tear from frequent use, or electrical faults within the switch mechanism.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A stainless infinite knob that replaces a worn or broken range or oven control knob, restoring smooth selection of heat/power settings and a clean stainless look for your appliance controls. What it does:

• Fits onto the stove/range infinite control shaft to set burner or oven power levels.
• Replaces cracked, chipped, or missing knobs that won't turn or slip on the control shaft.
• Restores precise user control when settings are hard to select or the knob is loose.
• Matches stainless control panels for a consistent, refreshed appearance.

• Disconnect power to the appliance before servicing to reduce shock risk.
• Typically installs by hand: pull the old knob straight off, align splines, and press the new knob onto the shaft until seated.
• Do not force the knob; if it won't seat easily, verify spline alignment and shaft condition.

This pilot indicator light mounts in the control panel and illuminates to show when a heating circuit is active. Replace a failed or damaged pilot light to restore a clear "on" reminder and improve everyday visibility around hot surfaces.

• Provides a visual "ON" signal when the corresponding control is turned on
• Common symptoms: indicator won't light, is dim or flickers, or the lens/housing is damaged
• Restores a clear status cue to help you see when heat is active
• Direct replacement for the original pilot light assembly

• Disconnect power at the breaker before servicing
• Remove back cover or control panel trim to access the light
• Note wire positions and transfer them to the new light one at a time
• Seat the light securely in the panel opening, reassemble, and test

The Indicator Light Lens is an OEM component specifically designed for GE ranges. This clear plastic lens surrounds the internal cooktop indicator lights to protect the bulbs.

Causes of a damaged lens can include normal wear from regular usage as well as accidental bumps or spills on the control panel surface.

Symptoms include:

• Cracks, scratches or clouding appearing on the lens material
• The lens detaching from its mounting points
• Obscured visibility of indicator lights below

This genuine GE lens is compatible with Hotpoint, RCA, and Kenmore models too.

This hinge pin secures the rangetop to the cooktop assembly, providing a reliable pivot point for lifting and lowering the top. It restores proper alignment and stable movement for safe, everyday use. What it does

• Replaces a worn or damaged hinge pin that can cause the rangetop to wobble, stick, or sit unevenly.
• Restores smooth pivot action when opening or closing the cooktop/top.
• Helps maintain proper alignment between the rangetop and the range frame to prevent binding.
• Works with the original hinge components to ensure a secure, stable connection.

• One hinge pin for the rangetop.

• Basic hand tools required; follow the range manufacturer's disassembly steps.
• Disconnect power supply and gas and ensure the appliance is cool before beginning work.
• Handle edges and springs cautiously; support the rangetop during removal/installation to prevent injury or damage.

This wire harness routes signals between the appliance control board and CAT module, restoring reliable electrical connections for control functions. It's a direct-fit replacement when the original harness is damaged or worn. What it does:

• Carries power and signal wires between the control board and CAT module to enable control communication
• Helps resolve intermittent or no-response control panel behavior caused by frayed, burned, or broken harness wiring
• Maintains proper connector alignment and secure electrical contacts for consistent operation
• Replaces a visibly damaged or corroded harness to prevent shorts and restore functionality

• Disconnect power before inspecting or replacing the harness to avoid shock or shorting components
• Inspect connectors and mating pins for damage; replace harness if insulation, terminals, or clips are compromised
• Route harness away from heat sources and moving parts; secure with existing clips or ties

This silicon controlled rectifier (SCR) is a replacement power-control semiconductor that helps regulate heating or motor circuits in compatible appliances. Restores controlled switching for stable operation and consistent performance. What it does:

• Controls power delivery to heating elements or motors by switching current on and off
• Helps correct symptoms such as intermittent heating, burners or motors that won't respond, or erratic operation
• Replaces a failed or shorted SCR to restore proper control functionality
• Operates as part of the appliance's control/regulator circuitry to manage current flow safely

• Disconnect power (unplug appliance or switch off circuit breaker) before servicing
• Observe ESD precautions and avoid touching semiconductor contacts; handle by the body or mounting tab
• Verify correct replacement orientation and secure mounting; match wiring/terminal locations exactly
