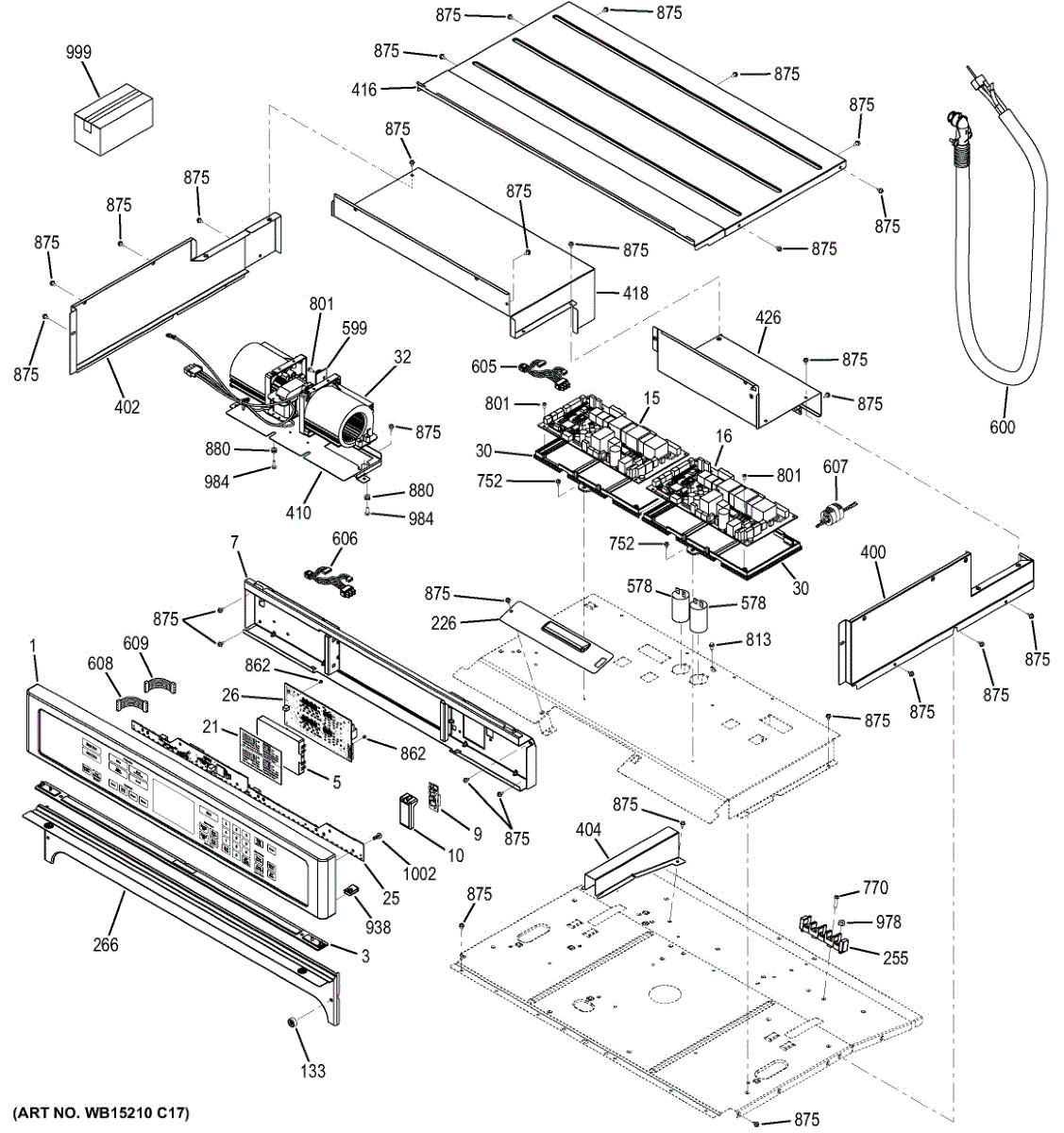

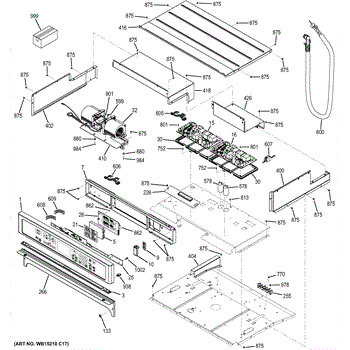

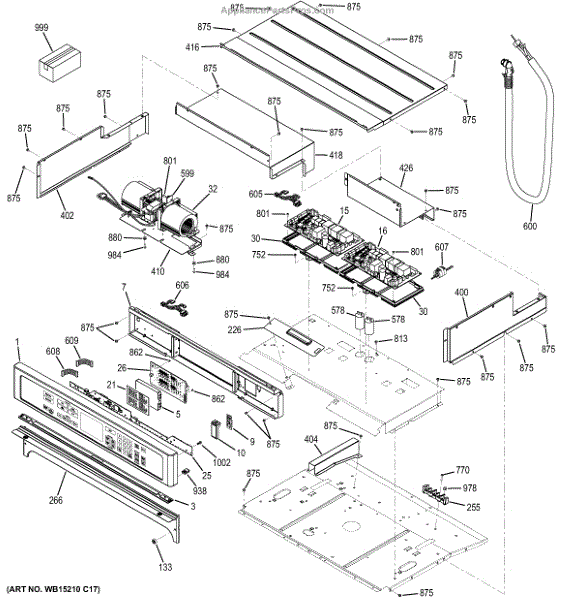

Parts for Ge PT9550DF1BB: Control Panel Parts

Fix an unresponsive control panel or oven that won't start with this control board and overlay assembly. Handles all oven functions and commands.

Can't control your range from your phone or app? This Wi-Fi module restores smart connectivity when remote features stop working or won't connect.

This housing transceiver is the outer mounting enclosure that secures and protects the appliance's transceiver assembly, helping maintain reliable signal and control communication. It replaces cracked or broken housings to restore proper fit and protection. What it does:

• Holds and protects the wireless/transceiver module and related wiring from physical damage
• Helps maintain proper alignment and connection to the appliance control assembly
• Common symptom: damaged or cracked housing that exposes electronics or prevents secure mounting
• Common symptom: intermittent signal or communication issues when the transceiver is loose or misaligned

• One housing transceiver

• Disconnect power to the appliance before beginning any repair to avoid shock or component damage
• Handle the transceiver and circuit connections carefully to avoid bending pins or ESD damage
• Installation typically requires removing the control console or access panel and a few fasteners; keep track of screws and gaskets

This is an oven control board. It manages oven temperature. When this part goes bad, the oven may not be able to maintain an appropriate temperature, or it may not be able to heat at all. If neither element in the oven is working, it's unlikely that they both went bad at the same time. This is an indicator that the control board needs to be replaced. However, if one element continues to work but not the other, it is likely to be the element itself. Be sure to allow plenty of time for the oven to cool before trying to replace this part. Wear gloves for safety during this process.This part is sold individually and is sourced straight from the manufacturer. This upper control board is compatible with wall ovens that are manufactured by GE.

The Machine Control Board is an OEM part for GE electric ovens. This control board regulates oven operations such as temperature selection, cooking timers, and safety features.

Causes of a faulty board can include component failures over time from sustained heat stresses during normal oven usage. Physical damage like accidental drops or impacts may also degrade board integrity.

Symptoms include:

• Oven not reaching or maintaining set temperatures
• Timers malfunctioning or failing to countdown
• Safety components not working properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Fix an unresponsive control panel or oven that won't start with this control board and overlay assembly. Handles all oven functions and commands.

Fix an unresponsive control panel or oven that won't start with this control board and overlay assembly. Handles all oven functions and commands.

Plastic frame board for wall ovens. Replaces cracked, broken, or worn frame components. Essential structural part for proper oven assembly and support.

This cooling fan circulates air through the oven's control compartment and vent path to keep electronics and surrounding surfaces at safe temperatures during and after cooking. Replacing a failing fan helps prevent overheating, shutdowns, and error messages. What it does:

• Draws cooling air across the control area and out the vent to manage internal temperatures
• Protects control boards, wiring, and trim from heat buildup
• Typically runs during use and continues after the oven is turned off to remove residual heat
• Common symptoms of failure: fan not running, slow or intermittent operation, loud squealing/grinding, control panel area becoming excessively hot, or cooling-fan-related error codes/shutdowns

• 1 cooling fan

• Disconnect power at the breaker and allow the appliance to cool completely before servicing
• Access location varies by model (often behind the rear cover or upper panel)
• Note wire positions and fan rotation/airflow direction; transfer any mounting brackets or seals from the original part if required
• After installation, ensure the fan spins freely and verify airflow at the vent during operation

Replace your range's door latch access cover if the oven door won't latch properly or the latch mechanism is exposed. Simple repair restores door function.

Fixes loose power connections and electrical arcing in ranges and ovens. This terminal block secures incoming wiring for safe, reliable operation.

Upper air vent channel for wall ovens. Directs airflow in the vent system. Replace if cracked, broken, or missing to restore proper ventilation.

Upper fan mount bracket for wall ovens and ranges. Secures the cooling fan assembly in place. Replace if bracket is bent, broken, or missing.

Conduit wire assembly for wall ovens. Protects and routes electrical wiring within the oven cavity. Replace if damaged, frayed, or missing.

This 6 ft conduit provides a protective, flexible channel for routing wiring between components, helping keep wiring organized and shielded from damage. It's an optional replacement for appliances that require extended wiring protection. What it does

• Protects and organizes electrical wiring by enclosing wires in a flexible conduit
• Helps reduce wear from abrasion, vibration, or contact with sharp edges
• Useful when original wiring routing needs extension or added protection
• Can reduce the chance of exposed wiring that may lead to shorts or intermittent power issues

• One 6 ft conduit

• Intended for use where an appliance's wiring routing requires a longer protective conduit;
• Use appropriate tools and secure conduit ends to strain reliefs or fittings as originally installed
• Disconnect power to the appliance before attempting any wiring work

Fix wall oven door latch issues with this wire harness assembly. Restores proper door lock function and electronic communication. Moderate DIY repair.

Oven display not responding or WiFi features not working? This wire harness connects the control display to the WiFi module, restoring communication.

Control panel lights not working? This LED jumper wire harness restores connections between your oven's control board and status indicator lights.

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

Replacement mounting screw for ranges and ovens. Secures panels, brackets, and internal components. Order when original screw is missing, stripped, or lost.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Black. 8-18 AB HXW 3/8

Rubber grommet for electric ovens and ranges. Seals and protects wiring or components passing through metal panels. Replace if cracked or missing.

Range burner clip secures burner components in place. Replace if bent, broken, or burners wobble. Verify fit with your model number before ordering.

A replacement hex nut used to secure appliance components and restore proper fastening. Installs quickly and helps stop loose or rattling parts caused by a missing or stripped nut. What it does

• Secures mounting studs, brackets, or components in place
• Prevents parts from shifting, vibrating, or coming loose during operation
• Replaces a missing, damaged, or corroded nut to restore reliable fastening

• One hex nut

• Disconnect power and gas before starting work
• Start threads by hand to avoid cross-threading, then tighten with the proper-size wrench
• Do not overtighten; snug until secure to avoid damaging studs or threads
• Use replacement only where the OEM hex nut is specified

Lubricant cleaner for range and oven control shafts, burner valves, and rack paddles. Dissolves residue and restores smooth operation when parts feel stiff.
