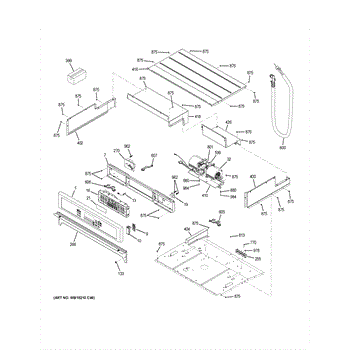

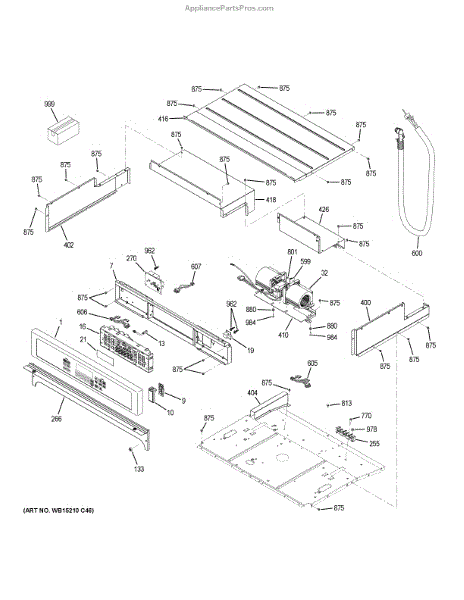

Parts for Ge ZEK7500SH1SS: Control Panel Parts

This Wi-Fi module kit replaces the appliance's wireless communications board to restore smart connectivity and app features. Use it when your appliance can't join your home network or when remote functions stop responding. What it does

• Provides the wireless interface so the appliance can connect to a home Wi-Fi network and communicate with the manufacturer app or cloud services
• Restores remote monitoring and control features that rely on a network connection
• Addresses symptoms such as inability to connect to Wi-Fi, lost smart features, or communication-related error messages
• Works with the appliance's control system to enable firmware updates and remote diagnostics when supported

• One Wi-Fi module kit

• Disconnect power to the appliance before beginning any work to avoid shock or injury
• Follow the OEM service instructions for removal and installation; proper seating and connector alignment are required
• After installation, reconnect to your home network and complete any app/registration steps per the manufacturer's setup guide

This housing transceiver is the outer mounting enclosure that secures and protects the appliance's transceiver assembly, helping maintain reliable signal and control communication. It replaces cracked or broken housings to restore proper fit and protection. What it does:

• Holds and protects the wireless/transceiver module and related wiring from physical damage
• Helps maintain proper alignment and connection to the appliance control assembly
• Common symptom: damaged or cracked housing that exposes electronics or prevents secure mounting
• Common symptom: intermittent signal or communication issues when the transceiver is loose or misaligned

• One housing transceiver

• Disconnect power to the appliance before beginning any repair to avoid shock or component damage
• Handle the transceiver and circuit connections carefully to avoid bending pins or ESD damage
• Installation typically requires removing the control console or access panel and a few fasteners; keep track of screws and gaskets

This electrical jumper links two terminals within the appliance's wiring to restore proper continuity for the affected circuit. Replace a burnt, damaged, or missing jumper to bring the related function back to reliable operation.

• Bridges terminals to complete or modify an electrical circuit as designed by the manufacturer
• Helps address symptoms like a specific feature not working, intermittent operation, or no power to a component
• Replace if the original shows heat damage, broken leads, or loose connections
• Direct replacement for the original jumper used in the wiring harness

• Disconnect power at the breaker or unplug the appliance before servicing
• Use your model's wiring diagram to locate the correct jumper
• Label/photograph wire positions and transfer one connection at a time
• Ensure connectors are fully seated; do not alter the factory wiring configuration

This filter clock display is the replacement display assembly that shows the refrigerator clock and filter status indicators, helping you know when a water filter needs changing and restoring normal display function. What it does:

• Shows the refrigerator clock and elapsed time indicator for the water filter
• Displays filter status prompts so you can tell when a replacement is due
• Restores a blank, faded, or unresponsive filter/clock display
• Helps reset or update the filter life indicator when paired with proper reset steps

• Disconnect power to the appliance before beginning any work to avoid shock or injury.
• Handle the display assembly carefully to avoid scratching or damaging the lens or contacts.
• Small tools may be required to remove the control panel; keep track of screws and retainers.
• Follow model-specific disassembly and reassembly instructions.

This block terminal is the wire-connection block that secures incoming power and internal wiring, restoring a safe, reliable electrical connection for the appliance. Replaces worn or damaged terminal connections to help prevent loose wires and arcing. What it does:

• Provides a secure connection point for incoming power and internal leads
• Replaces cracked, burned, or corroded terminal blocks that cause intermittent power or arcing
• Helps stop loose wires that can produce sparks, burning smells, or blown fuses/breakers
• Restores a stable electrical path so controls and heating elements receive power reliably

• One block terminal

• Always disconnect all power (unplug or shut off circuit breaker) before inspecting or replacing electrical parts
• Take a photo of wire routing and terminal screw positions before removal for correct reassembly
• Tighten terminal screws to secure wires; replace if mounting tabs or insulation are damaged

The GE Board Relay Daughter is an OEM part for GE ranges. It enables relay-based electrical control functions for safe operation.

Causes of a bad board relay can include failures in the circuit components over many power cycles. Moisture or accidental damage could potentially disrupt electrical connections.

Symptoms of a bad board relay include:

• Inability to ignite burners or power oven systems
• Removal of electricity to relevant relays requires diagnostics
• Loose, arcing or burned connections necessitating replacement

This OEM GE part is also compatible with Hotpoint, RCA and select Kenmore ranges.

This is a replacement screw used to secure appliance components and restore proper fit and function. Installing the correct screw prevents loose panels and noisy operation and keeps parts aligned for safe use. What it does:

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Helps stop rattling or vibration caused by missing or stripped fasteners
• Restores secure fit where a screw has been lost or damaged
• Matches the OEM fit so adjoining parts align correctly

• One replacement screw as pictured

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread by hand first, then snug; do not overtighten to avoid cracking plastic or stripping threads
• Replace only with the same type and size screw to ensure proper fit

A small machine screw used to fasten appliance panels and components. This 10-32 x 7/16 screw secures assemblies and replacement parts so panels and brackets stay properly mounted during normal operation. What it does:

• Fastens small panels, brackets, and assemblies that use a 10-32 thread
• Replaces missing or stripped mounting screws to stop rattling and loose parts
• Helps maintain proper alignment of fitted components
• Used where a short 7/16" length is required for a flush fit

• Unplug the appliance before starting any repair
• Use the correct sized screwdriver or nut driver for 10-32 threads
• Hand-start the screw to avoid cross-threading, then snug—do not overtighten
• If threads are damaged, replace with correct fastener; avoid forcing the screw

Black. 8-18 AB HXW 3/8

This standoff secures and isolates the oven power control module from the range chassis, helping keep the control electronics stable and properly spaced for safe operation. Replaces worn or broken mounting standoffs. What it does:

• Provides a stable mounting point for the power control module or control board
• Maintains proper clearance and insulation between the control and metal chassis
• Prevents movement that can cause loose connections, arcing, or intermittent control faults
• Helps reduce vibration and stress on control board components

• Disconnect power to the appliance before inspecting or replacing the standoff
• Use only the exact replacement standoff to maintain insulation and spacing
• If the control board shows damage, inspect the electronic assembly and wiring for additional issues

A replacement hex nut used to secure appliance components and restore proper fastening. Installs quickly and helps stop loose or rattling parts caused by a missing or stripped nut. What it does

• Secures mounting studs, brackets, or components in place
• Prevents parts from shifting, vibrating, or coming loose during operation
• Replaces a missing, damaged, or corroded nut to restore reliable fastening

• One hex nut

• Disconnect power and gas before starting work
• Start threads by hand to avoid cross-threading, then tighten with the proper-size wrench
• Do not overtighten; snug until secure to avoid damaging studs or threads
• Use replacement only where the OEM hex nut is specified
