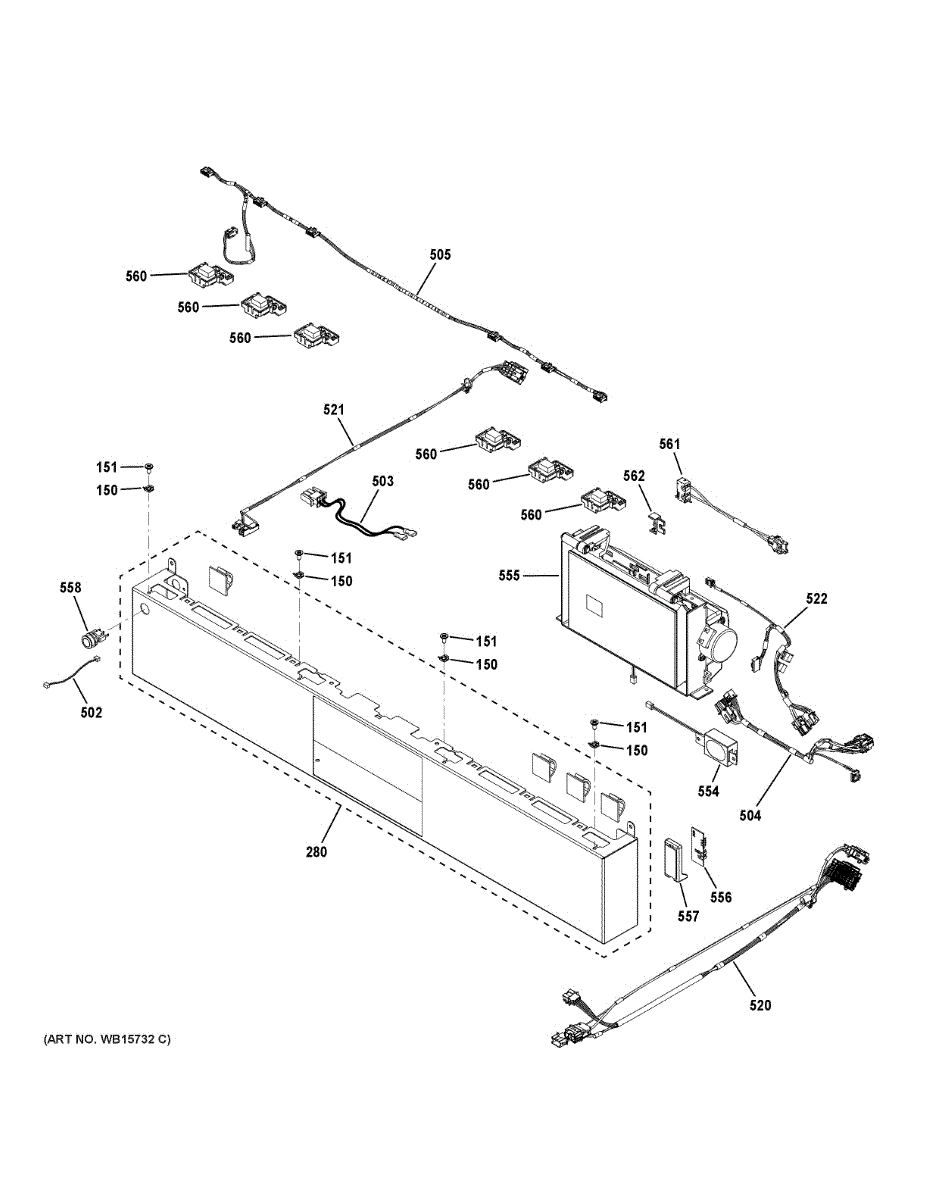

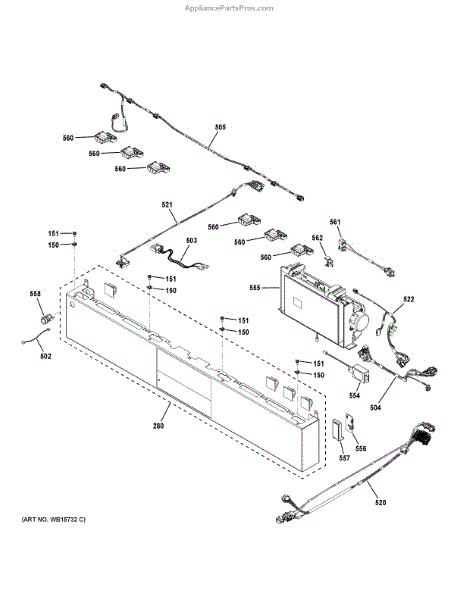

Parts for Ge ZHP365ETV1SS: Control Panel Parts

This wiring harness provides the factory-style electrical connections between the appliance control and its components, restoring reliable signal and power routing for proper operation. What it does:

• Routes power and control signals between the main control and connected components
• Replaces damaged, frayed, or corroded wiring that can cause intermittent operation
• Helps stop symptoms like components not powering on, intermittent cycles, or blown fuses
• Restores secure connector mating to reduce arcing and poor contacts

• One factory-style wiring harness with attached connectors as shown

• Disconnect all power (unplug or shut off breaker) before starting work
• Compare the part to the original to confirm connector types and wire lengths before installing
• Route and secure the harness following the appliance's wiring channels; avoid contact with sharp edges or moving parts

This display harness connects the cooktop/oven control panel to the main control board so the user interface and display receive power and signals. Replacing a damaged harness restores reliable communication between the keypad/display and the control electronics. What it does:

• Carries power and signal wiring between the control board and the console/display assembly
• Restores display illumination, touchpad or button response, and control feedback when wiring is damaged
• Stops intermittent or lost functions caused by frayed, corroded, or broken connector wires
• Prevents shorting or electrical faults from exposed or pinched wiring

• One display harness

• Disconnect power (unplug appliance or shut off breaker) before starting any repair
• Handle connectors gently; align pins before seating to avoid bent terminals
• Route harness along original clips and channels to prevent pinching or heat exposure
• Test the console functions before reassembling trim and covers

This housing transceiver is the outer mounting enclosure that secures and protects the appliance's transceiver assembly, helping maintain reliable signal and control communication. It replaces cracked or broken housings to restore proper fit and protection. What it does:

• Holds and protects the wireless/transceiver module and related wiring from physical damage
• Helps maintain proper alignment and connection to the appliance control assembly
• Common symptom: damaged or cracked housing that exposes electronics or prevents secure mounting
• Common symptom: intermittent signal or communication issues when the transceiver is loose or misaligned

• One housing transceiver

• Disconnect power to the appliance before beginning any repair to avoid shock or component damage
• Handle the transceiver and circuit connections carefully to avoid bending pins or ESD damage
• Installation typically requires removing the control console or access panel and a few fasteners; keep track of screws and gaskets
