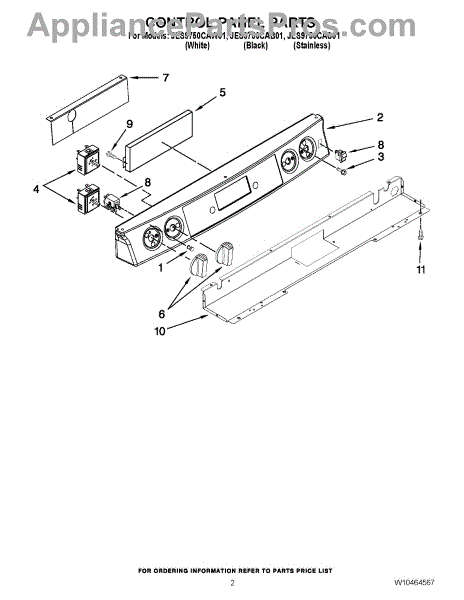

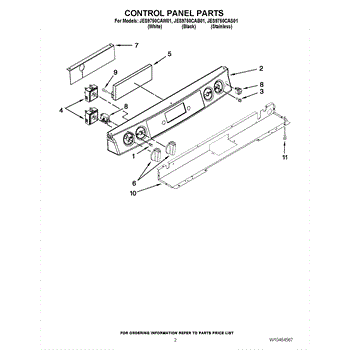

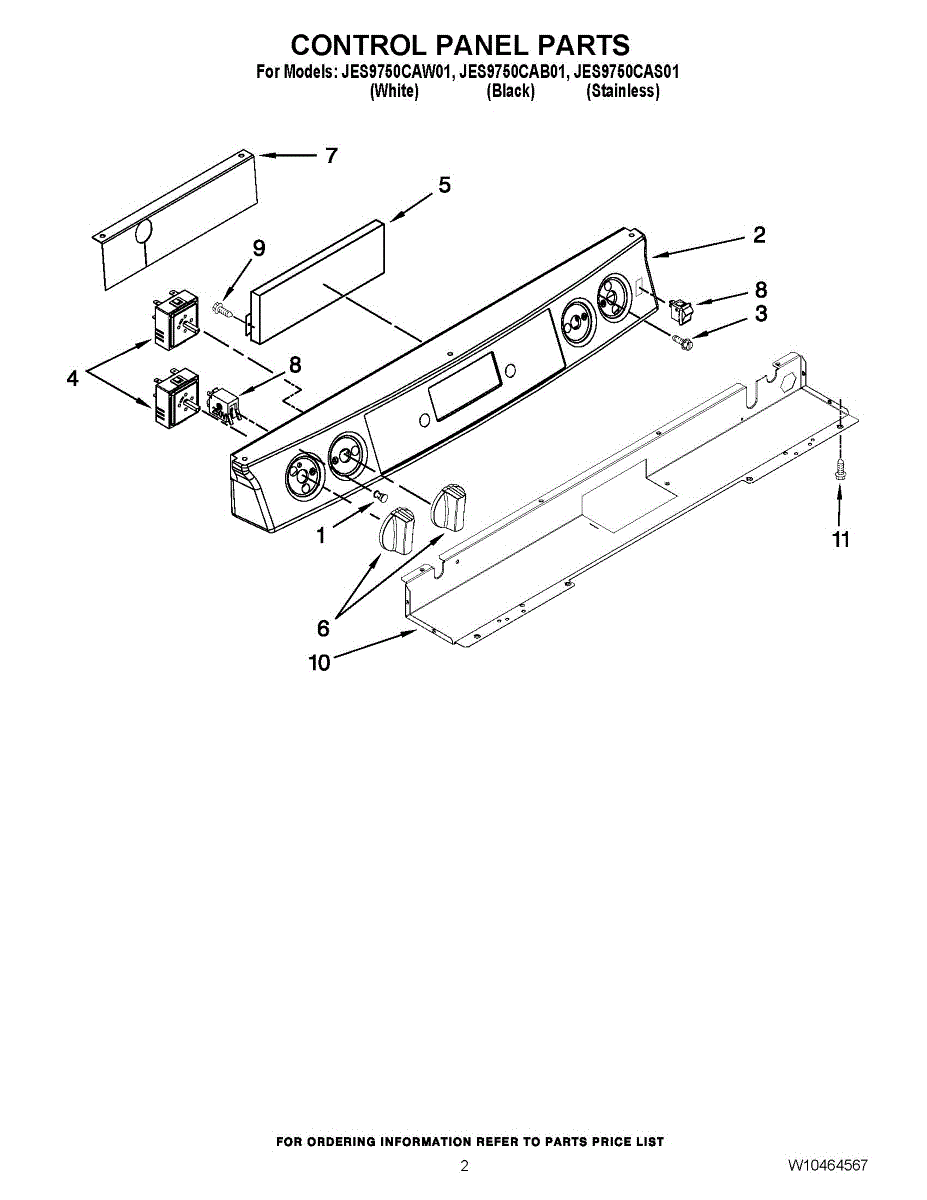

Parts for Jenn-Air JES9750CAB01: 02 - Control Panel Parts

Color: Black

Color: Black

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. It's a direct-fit fastening part used where the original OEM screw is specified. What it does:

• Secures trim, access panels, or internal components to maintain structural fit
• Prevents vibration noise and loose parts by holding assemblies firmly
• Matches OEM fit and threading for correct engagement when used in original locations
• Intended for repairs that require the exact replacement fastener

• Disconnect power and unplug the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; avoid over-tightening which can strip threads or crack plastic

This electronic control board manages the appliance's key functions and user interface. Replacing a failed board restores proper operation, responsive controls, and accurate timing/temperature so cooking cycles start, run, and finish as intended. What it does

• Controls heating outputs and other loads based on selected settings
• Monitors sensor inputs to regulate temperature and timing
• Drives the display and interprets keypad inputs from the control panel
• Common symptoms: won't start or heat, blank/unresponsive display, error codes/beeping, erratic temperature or cycle behavior

• 1 electronic control board

• Disconnect power at the breaker before servicing; verify no voltage is present
• Use ESD precautions and handle the board by its edges
• Access the board behind the control panel; photo wire locations, then move connectors one at a time and reuse mounting hardware
• Restore power and run a test cycle; perform control/temperature calibration if your model supports it

This is a replacement control knob that restores user control of a range/oven setting. It fits onto the appliance control shaft to provide a comfortable grip and clear position selection. What it does

• Replaces a cracked, stripped, or missing control knob so you can set temperature or function accurately.
• Provides a tactile grip and visible pointer to indicate selected setting.
• Restores smooth turning action when the original knob is worn or broken.
• Matches original fit and shaft engagement to secure to the control post.

• One replacement control knob (color: black).

• Fits on the appliance control shaft; pull off the old knob and push the new knob fully onto the shaft until seated.
• Ensure the oven/range is OFF and controls are cool before replacing the knob.
• No tools typically required; use gentle leverage to avoid damaging the control shaft.
• If the knob does not seat or turn correctly, do not force.

This control knob replaces a worn or broken appliance control knob to restore safe, simple temperature and function adjustments. It provides a direct, user-facing interface so settings turn smoothly and stay set during use. What it does:

• Replaces a damaged, cracked, or stripped control knob so you can select heat, cycle, or power settings reliably
• Restores tactile grip and detent feedback for accurate adjustments
• Prevents slipping or loss of control caused by a loose or broken knob
• Fits on splined valve or shaft designs for direct mechanical connection

• Disconnect power to the appliance before servicing for safety
• Most knobs pull straight off the control shaft; no special tools required, though pliers with padded jaws may help for tight fits
• Align splines on the knob and shaft when installing; press firmly until seated

This indicator light installs in the control panel and illuminates when its corresponding function is active. Replace a failed lamp to restore clear status indication, so you can see at a glance when the appliance is operating.

• Lights to indicate a selected function is on (e.g., surface units or oven circuits—varies by model)
• Provides visual confirmation of appliance status during use
• Common symptoms: light will not turn on, stays on constantly, flickers, or the lens is damaged
• Restores proper visual feedback when controls are engaged

• Disconnect power at the breaker before servicing; allow the appliance to cool
• Access the console/control panel and remove the rear cover as needed
• Note wire positions; transfer leads to the new light and secure it in the panel opening
• Reassemble and restore power to test operation

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold
