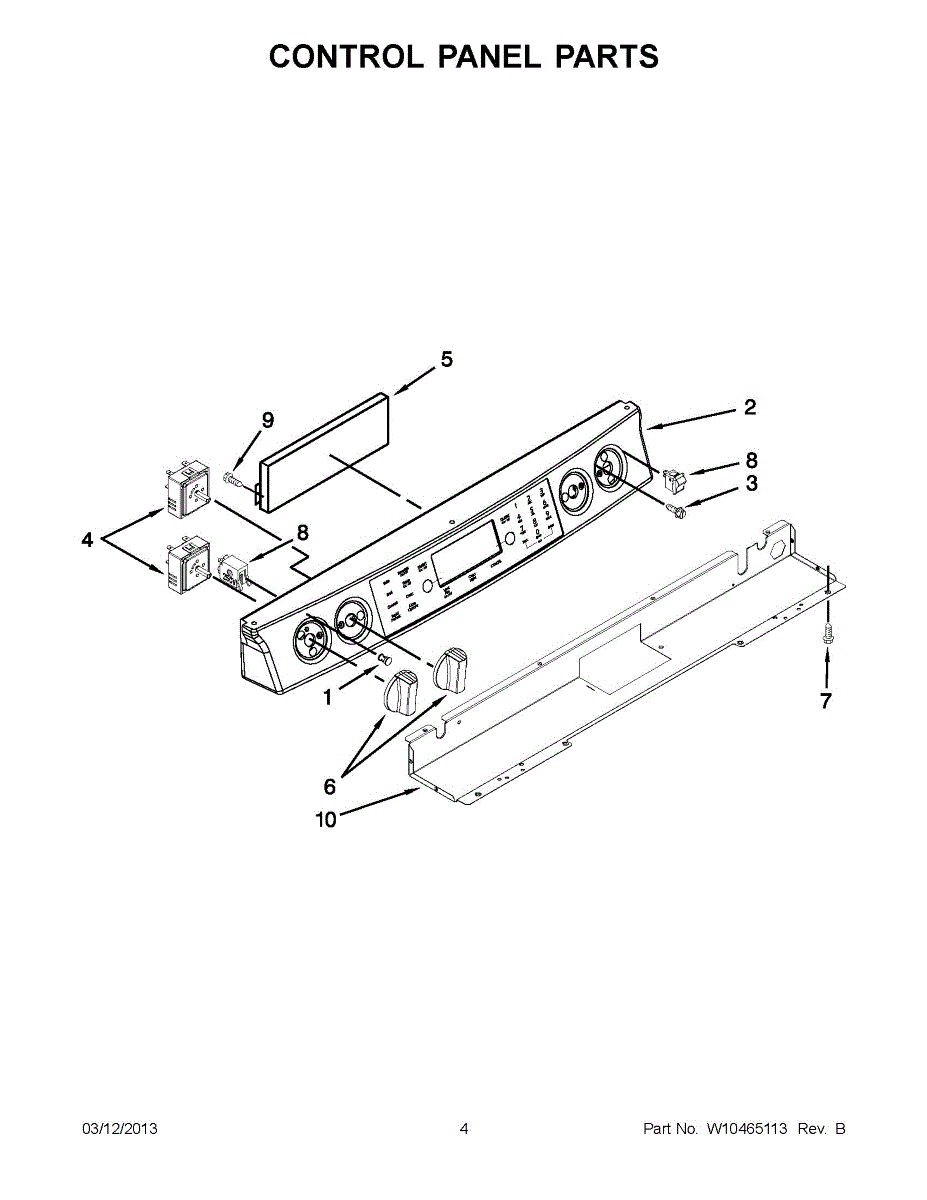

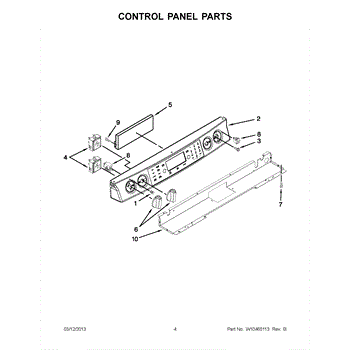

Parts for Jenn-Air JES9860CAB01: 02 - Control Panel Parts

This control panel is the front console fascia that houses your appliance's user interface and display, restoring a clean, functional control surface for selecting cycles and viewing settings. What it does:

• Provides the user interface and display area used to select cycles, options, and monitor status.
• Protects the underlying electronics and touchpad assembly from spills and impact.
• Replaces cracked, faded, or physically damaged control surfaces that make buttons hard to read or press.
• Can resolve symptoms like unresponsive or sticking buttons, missing labels, or visible panel damage.

• One control panel (console) as shown.

• Disconnect power (unplug or shut off breaker) before starting any repair.
• Handle the panel carefully to avoid scratching the finish or damaging attached clips and connectors.
• Some installations require transfer of the keypad/display or disconnecting ribbon cables; note which pieces come attached and which must be moved from the old panel.

This control panel is the front console fascia that houses your appliance's user interface and display, restoring a clean, functional control surface for selecting cycles and viewing settings. What it does:

• Provides the user interface and display area used to select cycles, options, and monitor status.
• Protects the underlying electronics and touchpad assembly from spills and impact.
• Replaces cracked, faded, or physically damaged control surfaces that make buttons hard to read or press.
• Can resolve symptoms like unresponsive or sticking buttons, missing labels, or visible panel damage.

• One control panel (console) as shown.

• Disconnect power (unplug or shut off breaker) before starting any repair.
• Handle the panel carefully to avoid scratching the finish or damaging attached clips and connectors.
• Some installations require transfer of the keypad/display or disconnecting ribbon cables; note which pieces come attached and which must be moved from the old panel.

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. It's a direct-fit fastening part used where the original OEM screw is specified. What it does:

• Secures trim, access panels, or internal components to maintain structural fit
• Prevents vibration noise and loose parts by holding assemblies firmly
• Matches OEM fit and threading for correct engagement when used in original locations
• Intended for repairs that require the exact replacement fastener

• Disconnect power and unplug the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; avoid over-tightening which can strip threads or crack plastic

This is a replacement control knob that restores user control of a range/oven setting. It fits onto the appliance control shaft to provide a comfortable grip and clear position selection. What it does

• Replaces a cracked, stripped, or missing control knob so you can set temperature or function accurately.
• Provides a tactile grip and visible pointer to indicate selected setting.
• Restores smooth turning action when the original knob is worn or broken.
• Matches original fit and shaft engagement to secure to the control post.

• One replacement control knob (color: black).

• Fits on the appliance control shaft; pull off the old knob and push the new knob fully onto the shaft until seated.
• Ensure the oven/range is OFF and controls are cool before replacing the knob.
• No tools typically required; use gentle leverage to avoid damaging the control shaft.
• If the knob does not seat or turn correctly, do not force.

This indicator light installs in the control panel and illuminates when its corresponding function is active. Replace a failed lamp to restore clear status indication, so you can see at a glance when the appliance is operating.

• Lights to indicate a selected function is on (e.g., surface units or oven circuits—varies by model)
• Provides visual confirmation of appliance status during use
• Common symptoms: light will not turn on, stays on constantly, flickers, or the lens is damaged
• Restores proper visual feedback when controls are engaged

• Disconnect power at the breaker before servicing; allow the appliance to cool
• Access the console/control panel and remove the rear cover as needed
• Note wire positions; transfer leads to the new light and secure it in the panel opening
• Reassemble and restore power to test operation

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold
