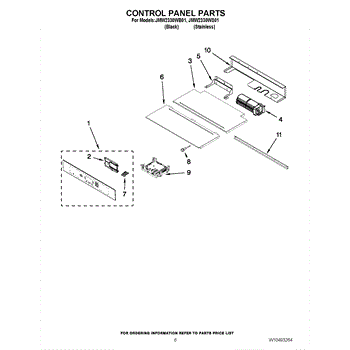

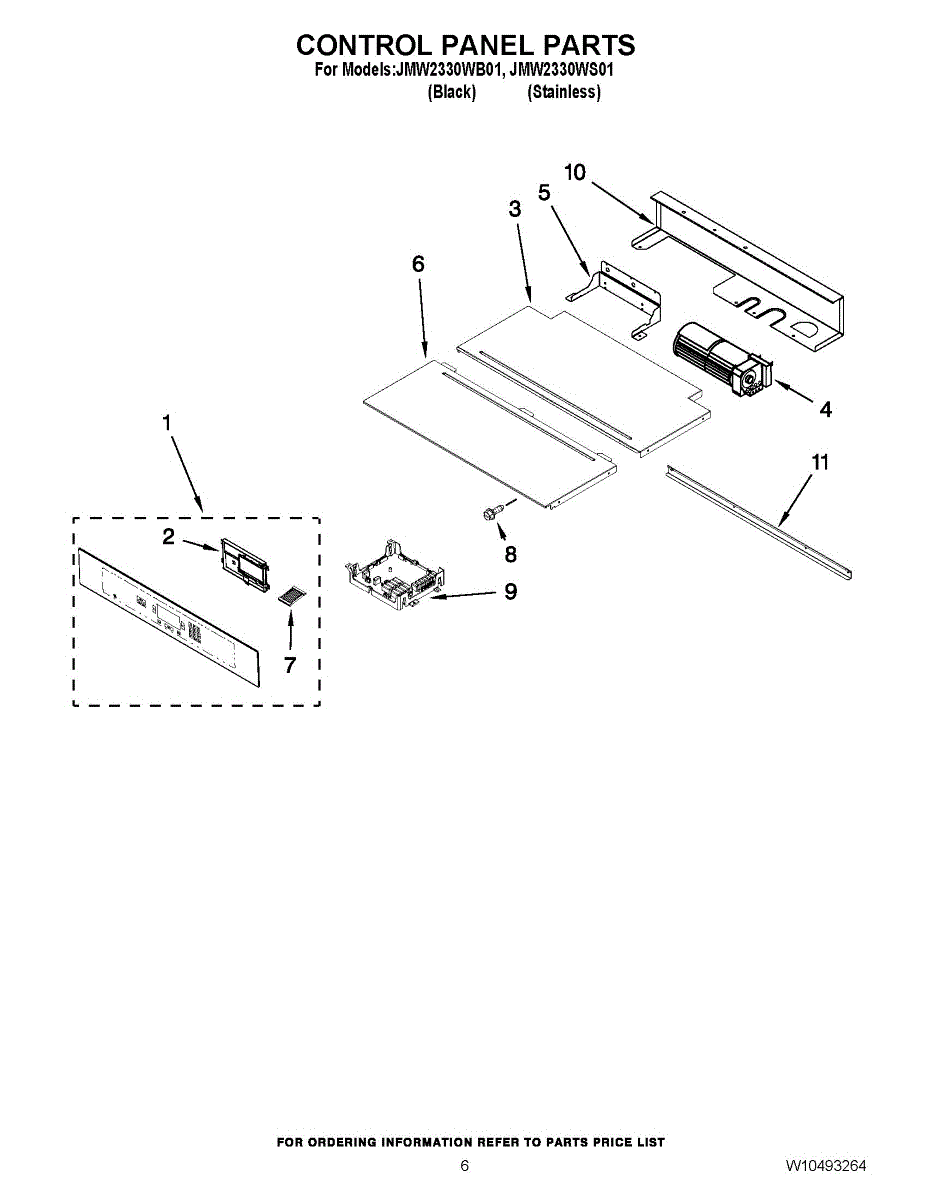

Parts for Jenn-Air JMW2330WS01: 04 - Control Panel Parts

This control panel is the user interface assembly that lets you select oven/cooktop functions, set temperatures and timers, and view status messages—restoring responsive controls and clear display feedback. What it does

• Provides the touchpad/buttons and display that let you choose bake, broil, timers and other cycle options
• Sends user commands to the range/oven control so selections are executed
• Displays time, temperature and mode information for easy monitoring
• Common symptom: unresponsive or missing displays, non-working buttons, or inability to select cycles

• One control panel assembly

• Disconnect power at the breaker before starting to avoid shock risk
• Some installs require removing the oven/range backguard or console trim; keep screws and retainers organized
• Handle the display and ribbon/connectors carefully; avoid bending contacts

This right-side blower moves air through the appliance to maintain proper airflow and temperature balance. Replacing a noisy, seized, or damaged blower restores smooth air movement and helps protect nearby components during operation.

• Provides forced airflow on the right side of the unit as designed
• Helps move heat away from critical areas to support reliable performance
• Typical symptoms include loud rattling/squealing, vibration, weak or no airflow, or the fan not running
• Orientation-specific part; correct side placement is required for proper airflow

• Disconnect power and allow the appliance to cool completely before servicing
• Access may require removing panels or sliding the unit partway out; note wire positions and airflow direction
• Transfer any reusable brackets or seals from the old blower, secure fasteners, and test for smooth, quiet operation

This metal mounting bracket secures internal components so assemblies stay aligned and stable during normal use. Replacing a damaged or missing bracket restores proper fit and reduces noise, vibration, or part movement. What it does:

• Secures and supports appliance components or assemblies to the cabinet or frame
• Keeps parts aligned to prevent rubbing, misalignment, or binding
• Reduces rattling, vibration, and loose-part noises caused by a worn or broken bracket
• Provides a stable attachment point for screws or fasteners

• One mounting bracket

• Disconnect power (and water if applicable) before starting any repair
• Use basic hand tools (screwdriver, socket set) and keep fasteners from the old part for reuse if undamaged
• Align bracket carefully and tighten screws snugly—do not overtighten to avoid stripping or distortion
• Wear gloves to protect against sharp edges and follow all safety instructions in your appliance manual
