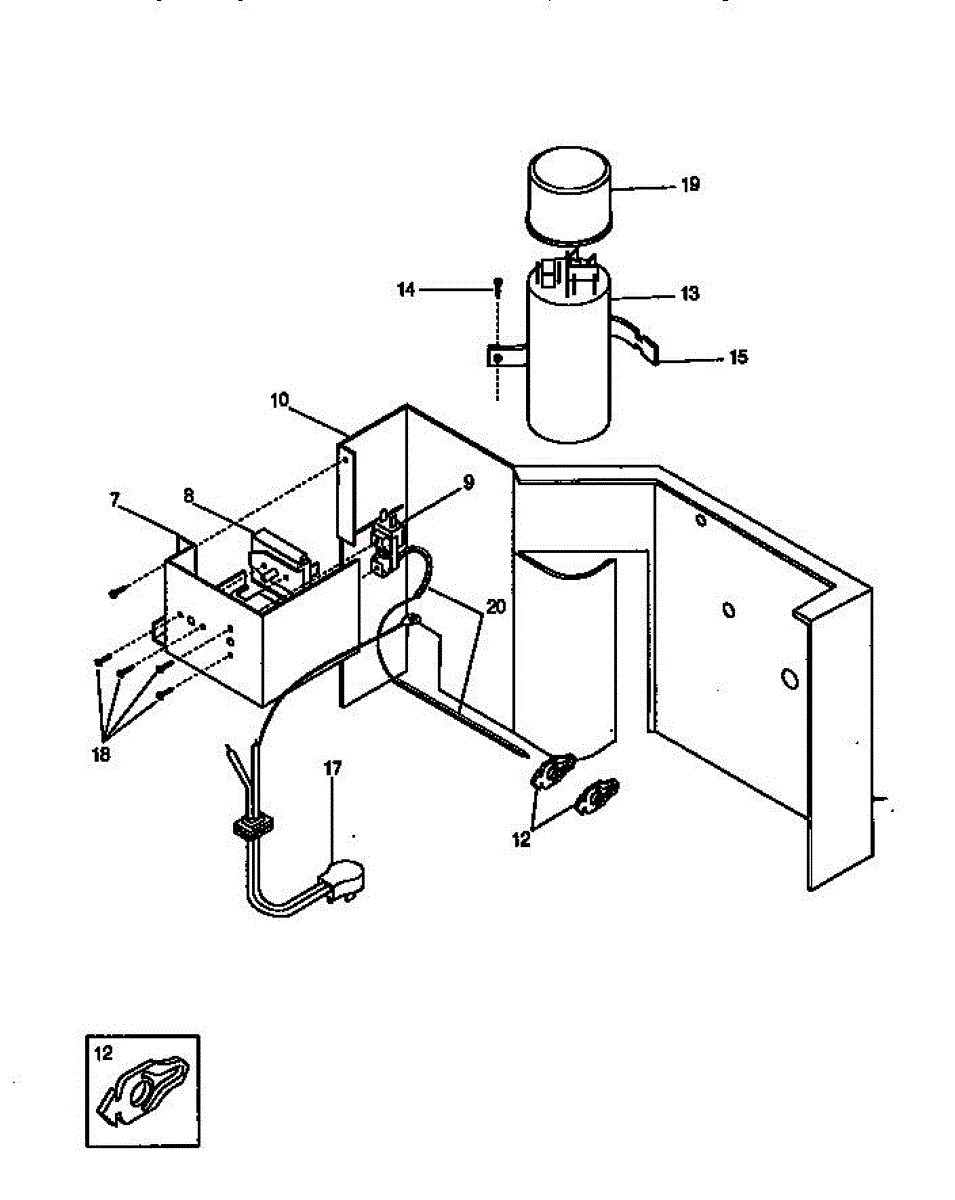

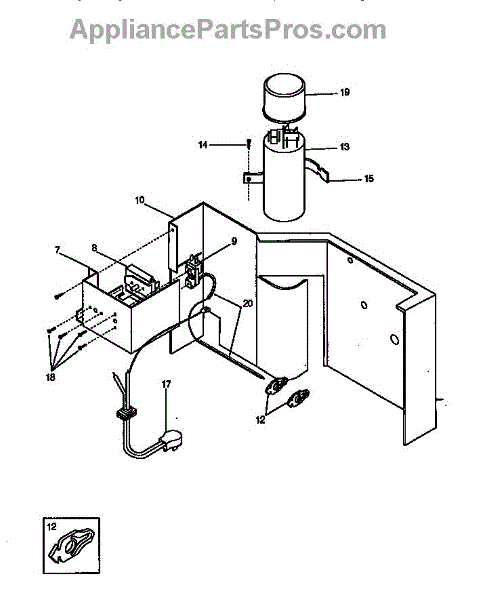

Parts for Kenmore 253.78055890 (25378055890, 253 78055890): Control Panel Parts

Air conditioner not responding to controls or stuck on one setting? The selector switch lets you choose modes and fan speeds. DIY repair in 30-45 minutes.

Metal sheet-metal screw secures panels, brackets, and internal components. Replace when missing, stripped, or damaged to restore proper fit.

This printed service data sheet supplies official manufacturer service information to help identify components and troubleshoot basic faults. Keeps wiring diagrams and service notes handy for DIYers. What it does:

• Provides original equipment service information commonly used for diagnosis
• Shows wiring diagrams, component locations, and electrical connections for reference
• Useful for technicians to follow manufacturer service procedures and notes

• This is a reference document, not a replaceable mechanical part; no installation required
• Keep the sheet with the appliance or service records for future troubleshooting
• Always disconnect power and follow safety procedures before servicing the appliance
