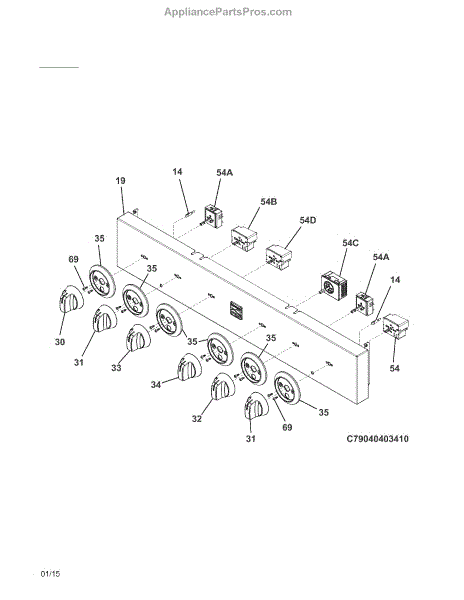

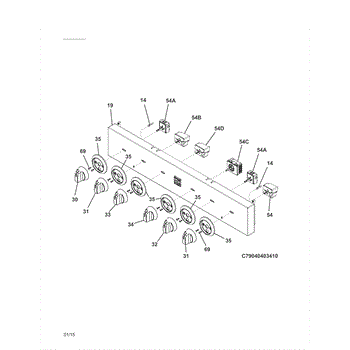

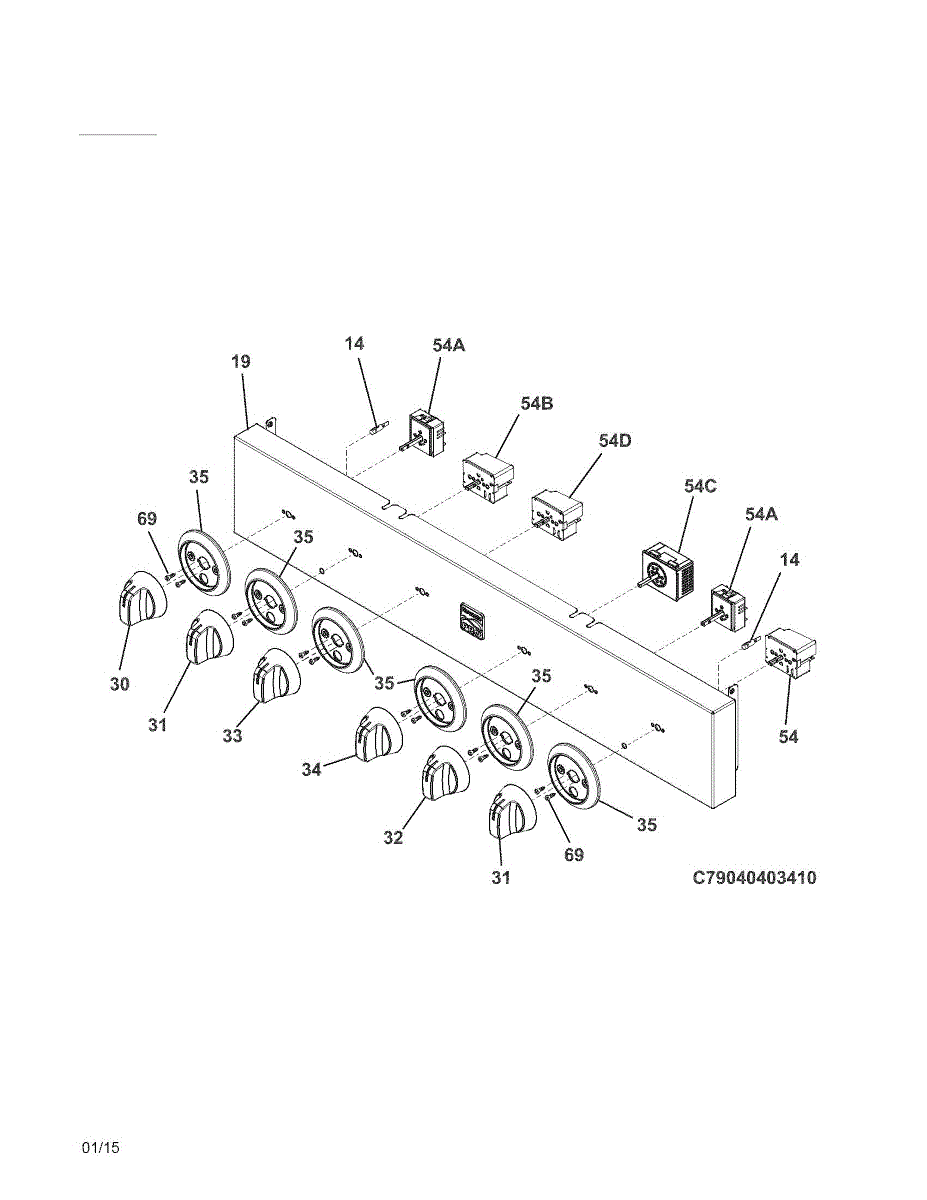

Parts for Kenmore 790.40403410 (79040403410, 790 40403410): Control Panel Parts

This replacement control panel is the console fascia that houses a range's user controls and display, restoring a responsive interface and clear readout for oven functions. It replaces damaged or worn panels that cause unresponsive buttons or missing display segments. What it does

• Provides the front console surface and mounting points for control buttons and the display.
• Restores tactile button response and visible readout when the original panel is cracked, faded, or delaminated.
• Helps resolve intermittent or non-responsive touchpads and stuck keys when the panel surface is the failure point.
• Secures the control electronics and provides the correct openings for knobs, keys, and the display window.

• Disconnect power (unplug or shut off breaker) before starting to avoid shock.
• Remove surrounding trim and mounting screws to access and transfer any overlays, button pads, or electronic modules as required.
• Handle the display window and any attached delicate components carefully to avoid scratching or damage.

Replacement control knob for your cooktop. Installs on the front control panel to operate burner settings. Order a new knob if yours is cracked or missing.

Refrigerator light won't turn off when door closes? This door switch detects door position to control the interior light. Simple DIY fix in 15 minutes.

Fix burner won't heat or stuck on high. This infinite switch controls temperature settings. Requires electrical skills, about 1 hour to install.

If your cooktop burner won't heat, stays on high, or won't turn off, a faulty burner control switch is often the cause. DIY repair in 15-30 minutes.

Element won't heat or overheats? This infinite switch kit restores precise temperature control to your cooktop's burners. Fixes erratic heating issues.

Burner not heating or stuck on? This surface element switch controls power to individual cooking elements. Moderate DIY repair requires lifting cooktop.

This printed wiring diagram is the factory schematic for the appliance's electrical system, giving a clear, labeled layout to help identify circuits and components during diagnosis and repair. Keeps wiring information readable and accessible. What it does:

• Shows electrical connections, wire colors, and component locations to aid troubleshooting
• Helps identify proper circuit routing and terminal hookups for repairs
• Useful when original diagram is missing, damaged, or unreadable
• Supports safe, accurate service by clarifying wiring before power-up

• Disconnect power to the appliance before accessing wiring or removing covers
• Replace the old or damaged diagram in the console or service area where original was located
• Handle the sheet carefully to avoid tearing; store away from moisture and heat
