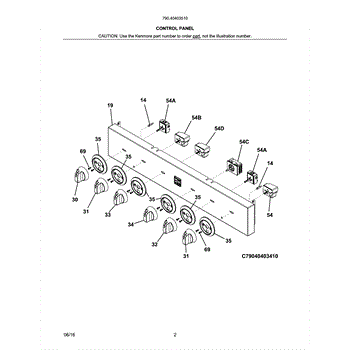

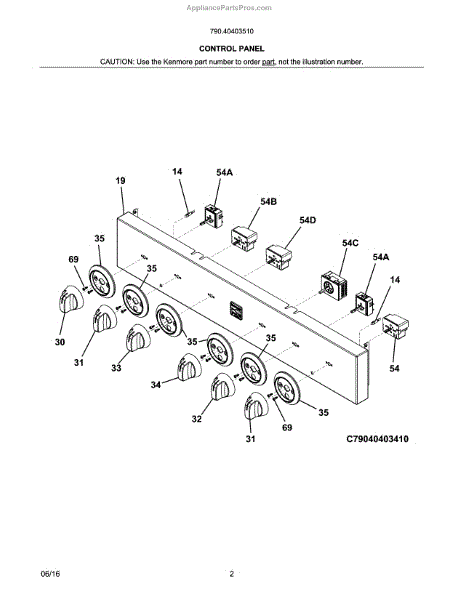

Parts for Kenmore 790.40403510 (79040403510, 790 40403510): Control Panel Parts

This replacement control panel is the console fascia that houses a range's user controls and display, restoring a responsive interface and clear readout for oven functions. It replaces damaged or worn panels that cause unresponsive buttons or missing display segments. What it does

• Provides the front console surface and mounting points for control buttons and the display.
• Restores tactile button response and visible readout when the original panel is cracked, faded, or delaminated.
• Helps resolve intermittent or non-responsive touchpads and stuck keys when the panel surface is the failure point.
• Secures the control electronics and provides the correct openings for knobs, keys, and the display window.

• Disconnect power (unplug or shut off breaker) before starting to avoid shock.
• Remove surrounding trim and mounting screws to access and transfer any overlays, button pads, or electronic modules as required.
• Handle the display window and any attached delicate components carefully to avoid scratching or damage.

This push-button door switch detects when the refrigerator door opens and closes to control the interior light and door-activated functions. It replaces a worn or failed switch to restore reliable light operation and door sensing. What it does:

• Activates the interior light when the door opens and turns it off when closed
• Prevents the light from staying on or failing to illuminate
• Restores proper door-sensing for door-activated controls and features
• Helps avoid excess energy use from a light that stays on

• One door push-button switch

• Disconnect power to the appliance before beginning any work
• Access usually requires removing the light housing or door trim; handle panels carefully to avoid damage
• Verify wiring orientation and connector fit before final assembly

This push-button door switch detects when the appliance door is closed and allows normal operation. It replaces a worn or failed door interlock to restore reliable start/stop response and user safety. What it does

• Acts as the door-closed sensor that permits the appliance to start when the door is latched.
• Interrupts power to drive/heating circuits when the door opens, preventing operation with an open door.
• Stops intermittent starting or running caused by a faulty or stuck switch.
• Helps resolve symptoms like the appliance not starting, stopping mid-cycle, or not responding to door closure.

• One door switch (push-button type)

• Disconnect power (unplug or shut off breaker) before accessing electrical components.
• Remove door trim or control panel as needed to access and replace the switch; keep track of screws and clips.
• Verify switch operation with a continuity meter before and after installation.

This electrical microswitch opens or closes a circuit when its actuator is engaged, allowing the control to sense position or enable a function. Replacing a worn switch restores reliable signaling and prevents intermittent faults in select ranges and wall ovens. What it does

• Changes state (open/closed) when actuated to complete or break a circuit
• Sends feedback to the control or enables power to a related component
• Helps ensure operations start/stop only when the mechanism is in the correct position
• Failure signs can include intermittent operation, cycles that won't start or finish, or related error codes/alarms

• 1 switch

• Disconnect power at the breaker before servicing
• Note/photograph wire positions and transfer one at a time to the new switch
• Match actuator orientation to the original and secure the switch firmly
• Verify function with a multimeter (continuity changes when actuated) before reassembly and testing

This genuine replacement switch kit restores reliable electrical switching for your appliance's control or component circuit. Replacing a worn or failed switch helps bring back consistent on/off or mode selection response and prevents intermittent operation.

• Opens and closes the electrical circuit to control a function or component
• Helps resolve no response when actuating the switch or intermittent operation
• Useful when the switch sticks, feels loose, or shows signs of arcing or heat damage
• Can address issues like inability to turn a function on/off or erratic behavior

• Disconnect power and allow components to cool before servicing
• Photograph or label wiring to ensure correct reconnection
• Transfer any brackets or terminals from the old switch if applicable
• Secure connections firmly; avoid overtightening and verify proper operation after reassembly

The Surface Element Switch is an OEM part for Frigidaire electric cooktops and ranges. It is an electronic component that controls the power supply to individual cooking elements on the surface.

Causes can be normal wear and tear over time, exposure to moisture, food spills or other contaminants on the cooktop. Physical damage from impacts could also cause switch failure.

Symptoms of a bad surface element switch include:

• Elements failing to heat up or staying hot even when controls are set to off
• Inconsistent or intermittent power to surface elements
• Loose, cracked, or non-responsive switches

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This printed wiring diagram is the factory schematic for the appliance's electrical system, giving a clear, labeled layout to help identify circuits and components during diagnosis and repair. Keeps wiring information readable and accessible. What it does:

• Shows electrical connections, wire colors, and component locations to aid troubleshooting
• Helps identify proper circuit routing and terminal hookups for repairs
• Useful when original diagram is missing, damaged, or unreadable
• Supports safe, accurate service by clarifying wiring before power-up

• Disconnect power to the appliance before accessing wiring or removing covers
• Replace the old or damaged diagram in the console or service area where original was located
• Handle the sheet carefully to avoid tearing; store away from moisture and heat
