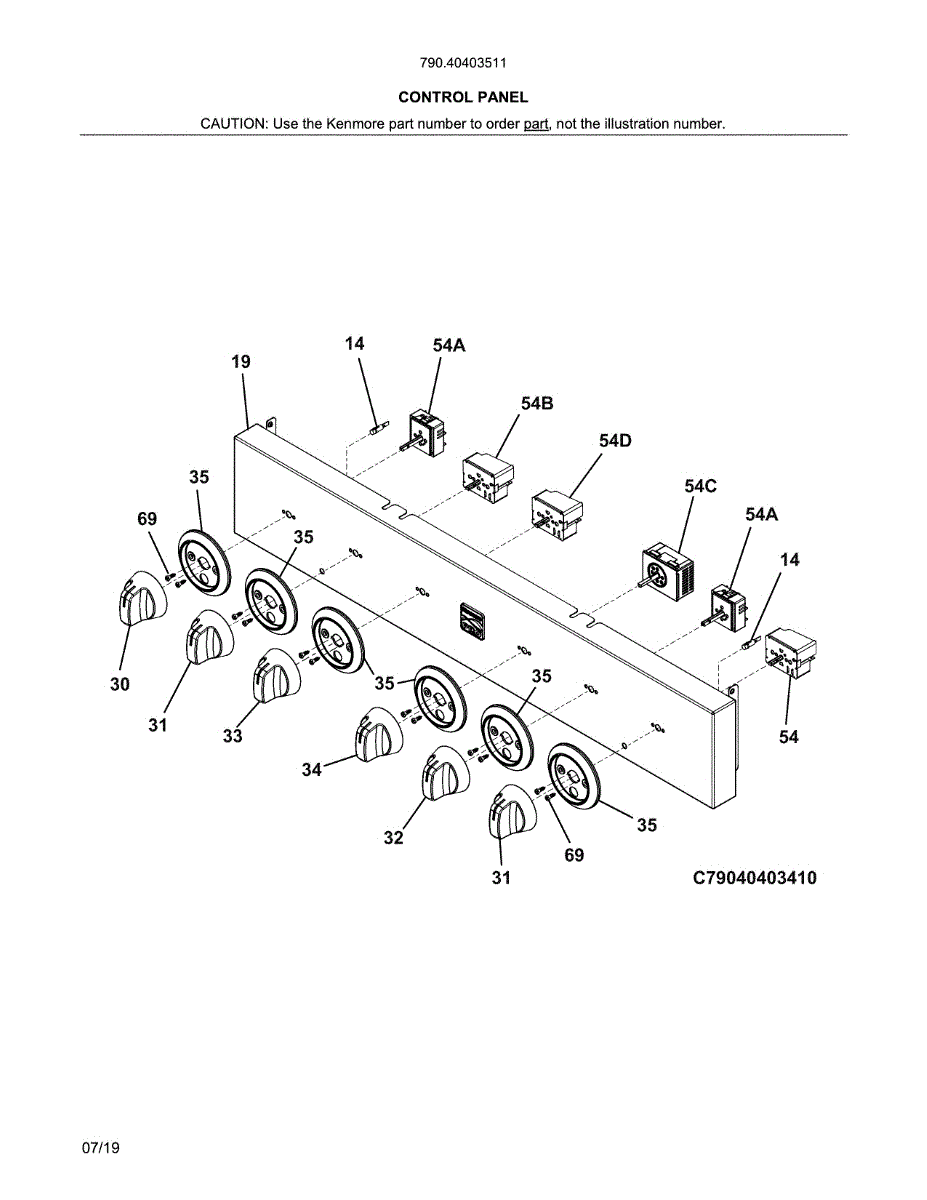

Parts for Kenmore 790.40403511 (79040403511, 790 40403511): Control Panel Parts

This replacement control panel is the console fascia that houses a range's user controls and display, restoring a responsive interface and clear readout for oven functions. It replaces damaged or worn panels that cause unresponsive buttons or missing display segments. What it does

• Provides the front console surface and mounting points for control buttons and the display.
• Restores tactile button response and visible readout when the original panel is cracked, faded, or delaminated.
• Helps resolve intermittent or non-responsive touchpads and stuck keys when the panel surface is the failure point.
• Secures the control electronics and provides the correct openings for knobs, keys, and the display window.

• Disconnect power (unplug or shut off breaker) before starting to avoid shock.
• Remove surrounding trim and mounting screws to access and transfer any overlays, button pads, or electronic modules as required.
• Handle the display window and any attached delicate components carefully to avoid scratching or damage.

Replacement control knob for your cooktop. Installs on the front control panel to operate burner settings. Order a new knob if yours is cracked or missing.

This push-button door switch detects when the refrigerator door opens and closes to control the interior light and door-activated functions. It replaces a worn or failed switch to restore reliable light operation and door sensing. What it does:

• Activates the interior light when the door opens and turns it off when closed
• Prevents the light from staying on or failing to illuminate
• Restores proper door-sensing for door-activated controls and features
• Helps avoid excess energy use from a light that stays on

• One door push-button switch

• Disconnect power to the appliance before beginning any work
• Access usually requires removing the light housing or door trim; handle panels carefully to avoid damage
• Verify wiring orientation and connector fit before final assembly

This push-button door switch detects when the appliance door is closed and allows normal operation. It replaces a worn or failed door interlock to restore reliable start/stop response and user safety. What it does

• Acts as the door-closed sensor that permits the appliance to start when the door is latched.
• Interrupts power to drive/heating circuits when the door opens, preventing operation with an open door.
• Stops intermittent starting or running caused by a faulty or stuck switch.
• Helps resolve symptoms like the appliance not starting, stopping mid-cycle, or not responding to door closure.

• One door switch (push-button type)

• Disconnect power (unplug or shut off breaker) before accessing electrical components.
• Remove door trim or control panel as needed to access and replace the switch; keep track of screws and clips.
• Verify switch operation with a continuity meter before and after installation.

If your cooktop burner won't heat, stays on high, or won't turn off, a faulty burner control switch is often the cause. DIY repair in 15-30 minutes.

Element won't heat or overheats? This infinite switch kit restores precise temperature control to your cooktop's burners. Fixes erratic heating issues.

Burner not heating or stuck on? This surface element switch controls power to individual cooking elements. Moderate DIY repair requires lifting cooktop.

This printed wiring diagram is the factory schematic for the appliance's electrical system, giving a clear, labeled layout to help identify circuits and components during diagnosis and repair. Keeps wiring information readable and accessible. What it does:

• Shows electrical connections, wire colors, and component locations to aid troubleshooting
• Helps identify proper circuit routing and terminal hookups for repairs
• Useful when original diagram is missing, damaged, or unreadable
• Supports safe, accurate service by clarifying wiring before power-up

• Disconnect power to the appliance before accessing wiring or removing covers
• Replace the old or damaged diagram in the console or service area where original was located
• Handle the sheet carefully to avoid tearing; store away from moisture and heat
