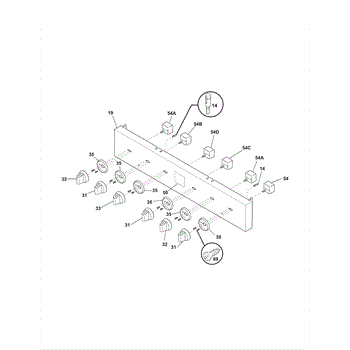

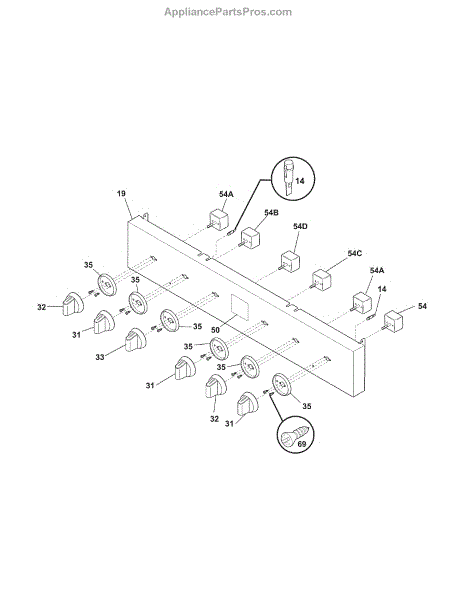

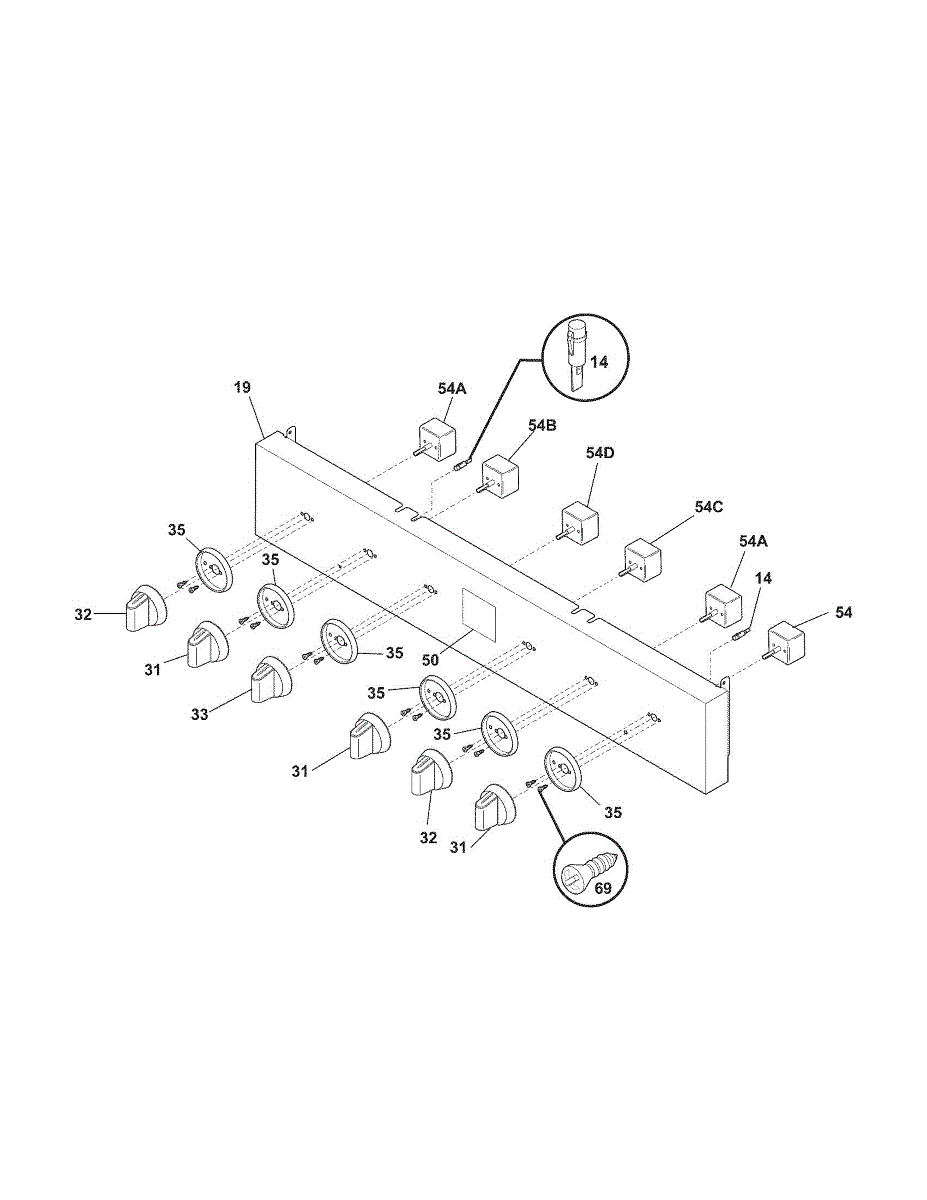

Parts for Kenmore 790.40503602 (79040503602, 790 40503602): Control Panel Parts

Indicator light replaces the control-panel lamp that signals power or active functions, restoring visible status feedback for safer, more confident operation. Use this when the original lamp is dim, cracked, or fails to illuminate. What it does:

• Provides visible indication of power, cycle status, or selected functions on the appliance control panel.
• Restores clear status feedback when the original lamp is burned out or flickering.
• Helps troubleshoot whether a control or circuit is receiving power by showing when the indicator should be lit.
• Improves usability so settings and operating states are easy to confirm at a glance.

• Disconnect power to the appliance (unplug or turn off the breaker) before beginning work.
• Access may require removing the control panel or console.
• Handle the lamp carefully and avoid touching bulb surfaces; use gloves to prevent oil transfer.
• After installation, restore power and verify the indicator lights as expected; if it still does not light, further electrical diagnosis may be needed.

This push-button door switch detects when the appliance door is closed and allows normal operation. It replaces a worn or failed door interlock to restore reliable start/stop response and user safety. What it does

• Acts as the door-closed sensor that permits the appliance to start when the door is latched.
• Interrupts power to drive/heating circuits when the door opens, preventing operation with an open door.
• Stops intermittent starting or running caused by a faulty or stuck switch.
• Helps resolve symptoms like the appliance not starting, stopping mid-cycle, or not responding to door closure.

• One door switch (push-button type)

• Disconnect power (unplug or shut off breaker) before accessing electrical components.
• Remove door trim or control panel as needed to access and replace the switch; keep track of screws and clips.
• Verify switch operation with a continuity meter before and after installation.

This replacement switch restores dependable on/off control for the appliance function it serves. Replacing a worn or heat-damaged switch helps eliminate intermittent operation and ensures the selected feature powers correctly and safely. What it does:

• Opens and closes the electrical circuit to the assigned component when actuated
• Can resolve issues where a feature will not turn on or will not shut off
• Helps correct intermittent operation caused by worn or pitted contacts
• Addresses damage such as melting, arcing, discoloration, or a loose/"spongy" feel

• 1 switch

• Disconnect power at the breaker before servicing to avoid electrical shock
• Note or photograph wire positions; transfer leads one-for-one to the new switch
• Ensure terminals are fully seated; do not force or stretch connectors
• Inspect wiring for heat damage and correct loose connections before reassembly

This electrical microswitch opens or closes a circuit when its actuator is engaged, allowing the control to sense position or enable a function. Replacing a worn switch restores reliable signaling and prevents intermittent faults in select ranges and wall ovens. What it does

• Changes state (open/closed) when actuated to complete or break a circuit
• Sends feedback to the control or enables power to a related component
• Helps ensure operations start/stop only when the mechanism is in the correct position
• Failure signs can include intermittent operation, cycles that won't start or finish, or related error codes/alarms

• 1 switch

• Disconnect power at the breaker before servicing
• Note/photograph wire positions and transfer one at a time to the new switch
• Match actuator orientation to the original and secure the switch firmly
• Verify function with a multimeter (continuity changes when actuated) before reassembly and testing

A replacement hex-head screw used to secure appliance regulator brackets and similar small components. Restores proper fastener fit so panels and brackets stay firmly attached. What it does

• Fastens regulator bracket and related sheet-metal components
• Provides a secure threaded connection for components where an 8-18 thread is specified
• Helps eliminate looseness or rattling caused by a missing or damaged screw
• Matches the nickel/chrome finish commonly used on interior mounting locations

• One hex head screw (8-18 x 3/8), nickel finish

• Intended for use where an 8-18 x 3/8 hex screw is specified by the manufacturer
• Tighten to snug; avoid over-torquing which can strip sheet-metal threads
• Turn off power to the appliance before accessing internal components
• If the original screw used a lock washer or threadlocker, replace or reapply as appropriate
