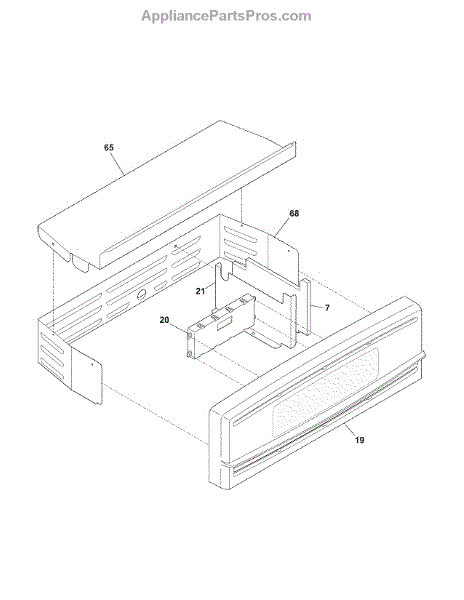

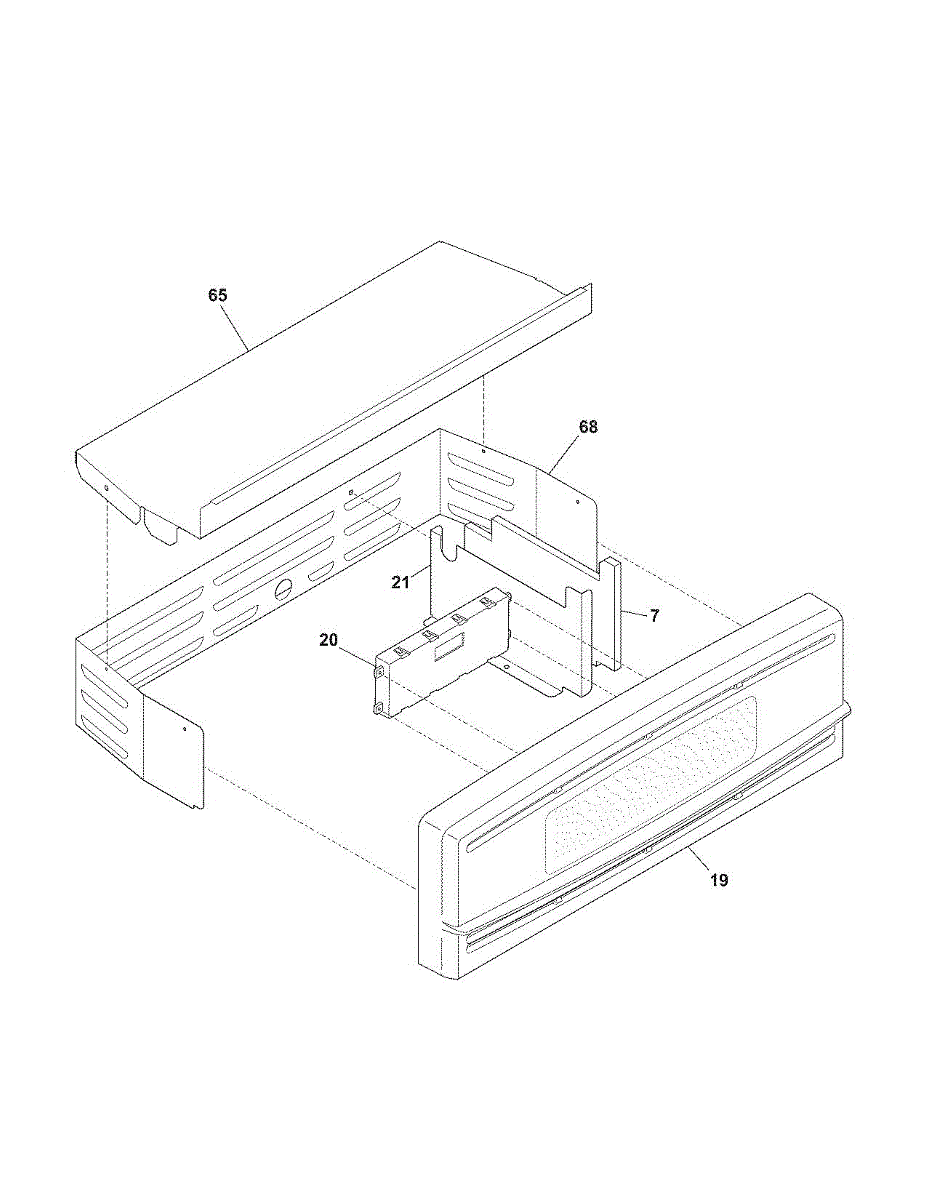

Parts for Kenmore 790.40522400 (79040522400, 790 40522400): Control Panel Parts

Touch pad control panel for wall ovens. Replaces cracked, worn, or unresponsive touch pad panels. Essential when buttons are damaged or missing.

This control board manages your oven's timing functions, temperature settings, and cooking modes. It controls when heating elements activate and maintains proper cooking temperatures throughout the baking process. Replace this board if your oven won't heat properly, the timer doesn't work, or if the display shows error messages.

This printed service parts list provides exploded diagrams and part numbers to help identify and order replacement components for your appliance. Handy for technicians and DIYers who need an accurate parts reference. What it does:

• Shows exploded diagrams and part numbers for major assemblies and components
• Helps identify worn or broken parts when an appliance has leaks, strange noises, or won't run
• Simplifies ordering by matching the correct part numbers to the component you need
• Serves as a technician reference for repair planning and troubleshooting

• This is a reference document, not a replacement hardware part; no electrical or mechanical installation required
• Keep the booklet dry and store with your appliance records for future repairs
• If you need a digital copy or service manual, contact the manufacturer or an authorized service provider

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

A replacement hex-head screw used to secure appliance regulator brackets and similar small components. Restores proper fastener fit so panels and brackets stay firmly attached. What it does

• Fastens regulator bracket and related sheet-metal components
• Provides a secure threaded connection for components where an 8-18 thread is specified
• Helps eliminate looseness or rattling caused by a missing or damaged screw
• Matches the nickel/chrome finish commonly used on interior mounting locations

• One hex head screw (8-18 x 3/8), nickel finish

• Intended for use where an 8-18 x 3/8 hex screw is specified by the manufacturer
• Tighten to snug; avoid over-torquing which can strip sheet-metal threads
• Turn off power to the appliance before accessing internal components
• If the original screw used a lock washer or threadlocker, replace or reapply as appropriate
