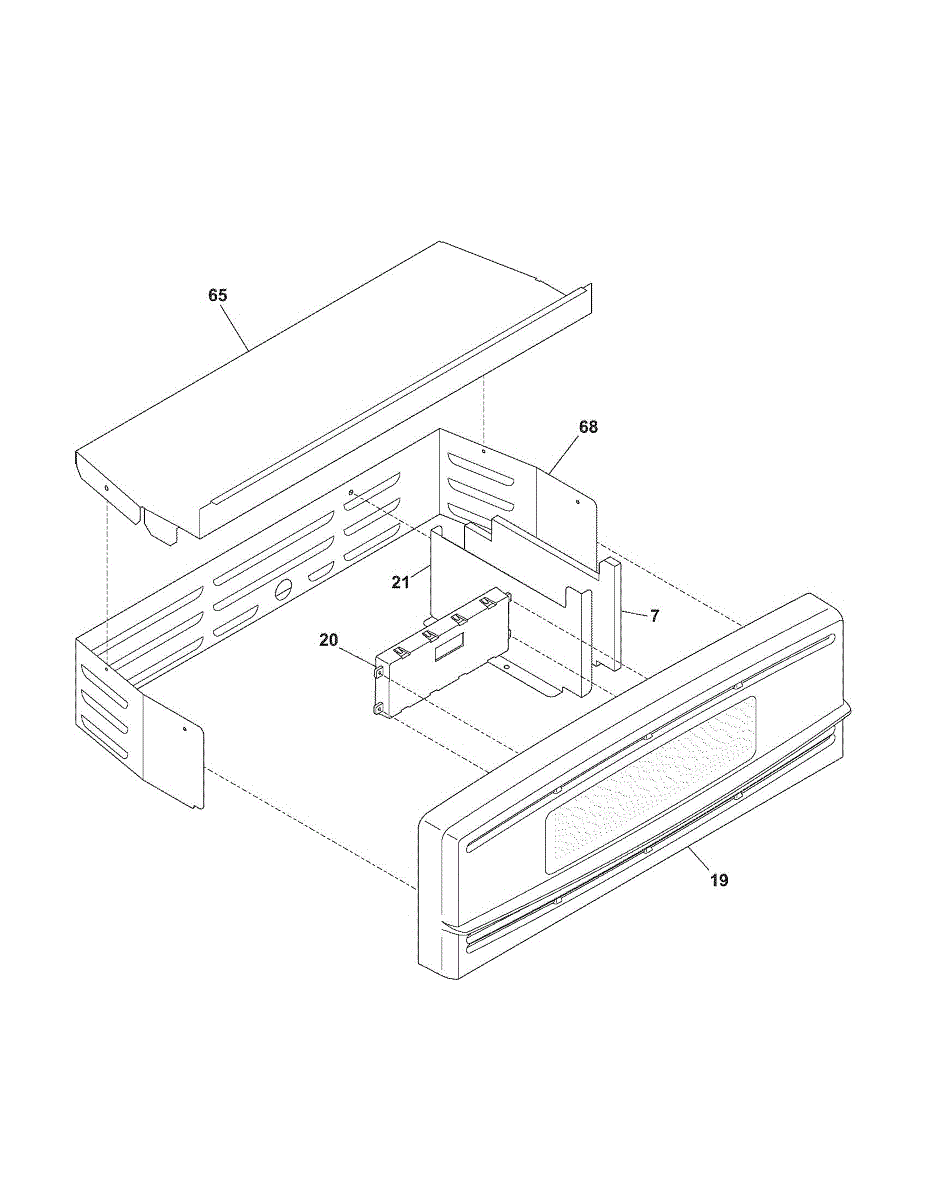

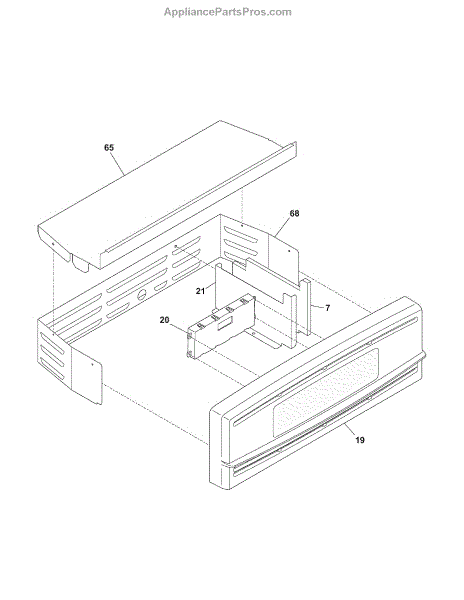

Parts for Kenmore 790.40522402 (79040522402, 790 40522402): Control Panel Parts

Touch pad control panel for wall ovens. Replaces cracked, worn, or unresponsive touch pad panels. Essential when buttons are damaged or missing.

This wiring diagram is the original OEM schematic sheet that shows the appliance's electrical circuits in plain terms to help identify component connections and trace power paths for troubleshooting. What it does:

• Shows wire colors, connector locations and circuit routing so you can locate and identify electrical components.
• Helps diagnose symptoms like intermittent power, no power to controls, blown fuses or tripped breakers by tracing the affected circuit.
• Clarifies control board, motor, heater and sensor wiring relationships to reduce guesswork during repairs.
• Useful when replacing harnesses or verifying proper reassembly after service.

• One wiring diagram (schematic sheet) as shipped by the manufacturer.

• Always disconnect power to the appliance before inspecting or using the diagram to work on electrical components.
• This is a reference document only; follow all safety procedures and manufacturer service instructions when repairing.
• Handle the sheet carefully—store with the appliance model paperwork for future troubleshooting or use.

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

A replacement hex-head screw used to secure appliance regulator brackets and similar small components. Restores proper fastener fit so panels and brackets stay firmly attached. What it does

• Fastens regulator bracket and related sheet-metal components
• Provides a secure threaded connection for components where an 8-18 thread is specified
• Helps eliminate looseness or rattling caused by a missing or damaged screw
• Matches the nickel/chrome finish commonly used on interior mounting locations

• One hex head screw (8-18 x 3/8), nickel finish

• Intended for use where an 8-18 x 3/8 hex screw is specified by the manufacturer
• Tighten to snug; avoid over-torquing which can strip sheet-metal threads
• Turn off power to the appliance before accessing internal components
• If the original screw used a lock washer or threadlocker, replace or reapply as appropriate
