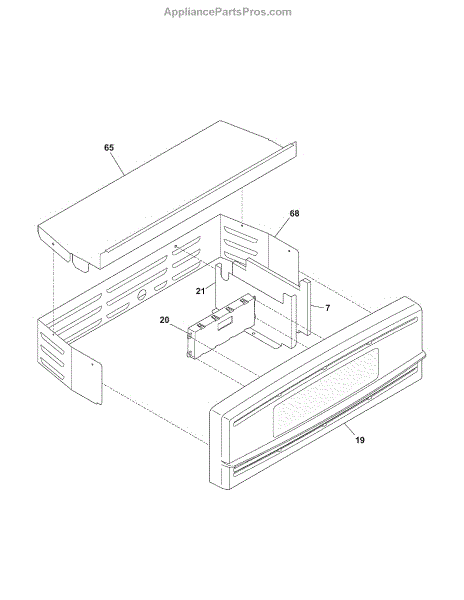

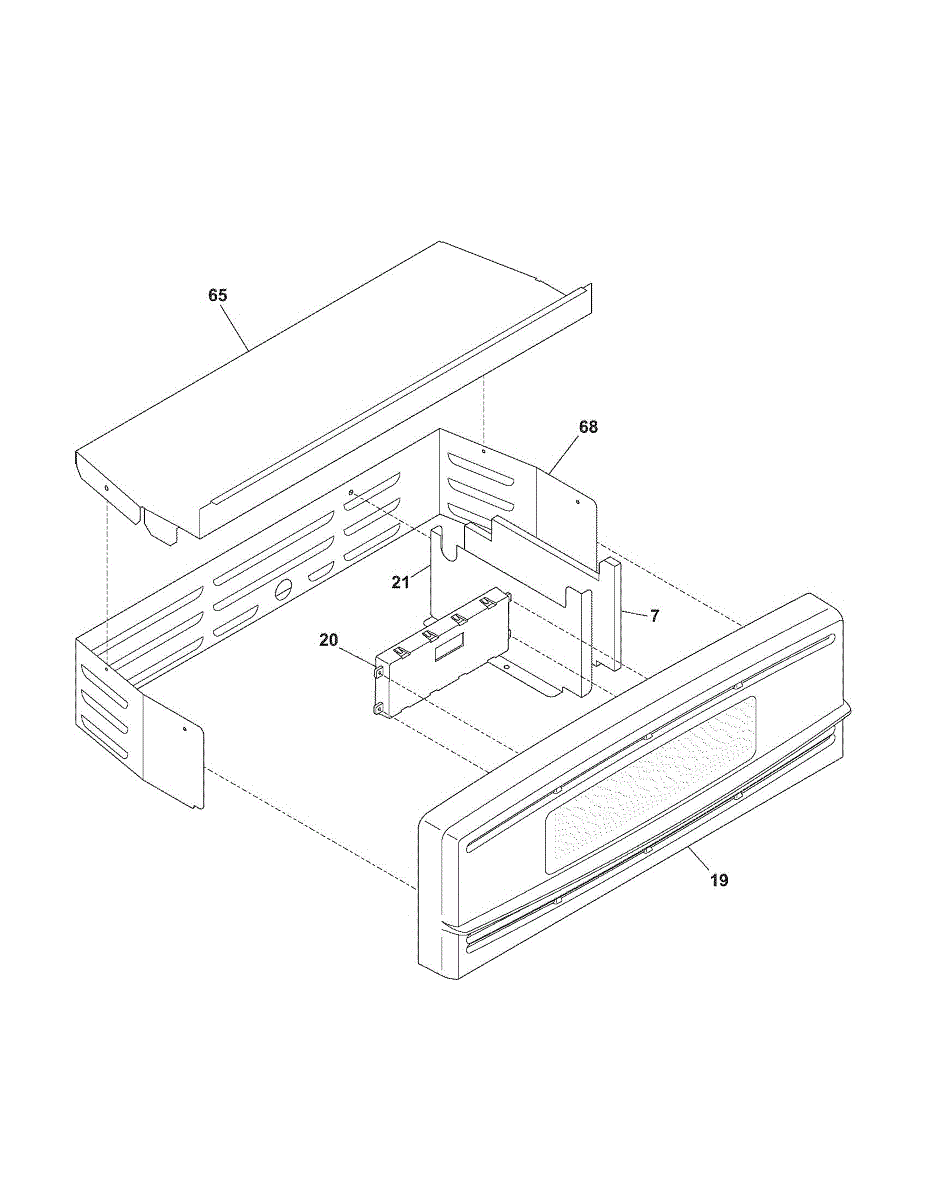

Parts for Kenmore 790.40523402 (79040523402, 790 40523402): Control Panel Parts

This control board manages your oven's timing functions, temperature settings, and cooking modes. It controls when heating elements activate and maintains proper cooking temperatures throughout the baking process. Replace this board if your oven won't heat properly, the timer doesn't work, or if the display shows error messages.

This wiring diagram is the original OEM schematic sheet that shows the appliance's electrical circuits in plain terms to help identify component connections and trace power paths for troubleshooting. What it does:

• Shows wire colors, connector locations and circuit routing so you can locate and identify electrical components.
• Helps diagnose symptoms like intermittent power, no power to controls, blown fuses or tripped breakers by tracing the affected circuit.
• Clarifies control board, motor, heater and sensor wiring relationships to reduce guesswork during repairs.
• Useful when replacing harnesses or verifying proper reassembly after service.

• One wiring diagram (schematic sheet) as shipped by the manufacturer.

• Always disconnect power to the appliance before inspecting or using the diagram to work on electrical components.
• This is a reference document only; follow all safety procedures and manufacturer service instructions when repairing.
• Handle the sheet carefully—store with the appliance model paperwork for future troubleshooting or use.

This stainless steel cleaner restores and protects stainless surfaces, removing fingerprints, smudges and light soils to improve appearance and make routine cleaning easier. Safe for finished stainless when used as directed. What it does:

• Cleans away fingerprints, grease, and light residue from stainless surfaces
• Restores a streak-free shine and improves overall appearance
• Helps reduce visible smudges for easier routine maintenance
• Leaves a light protective finish that helps resist fingerprints between applications

• Read and follow the product label before use; test on an inconspicuous area first
• Apply to a soft cloth and wipe with the grain of the stainless; avoid abrasive pads
• Do not use on hot surfaces, painted finishes, or unsealed metals unless manufacturer approves
• Keep out of reach of children and avoid contact with eyes; if contact occurs, rinse thoroughly

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.
