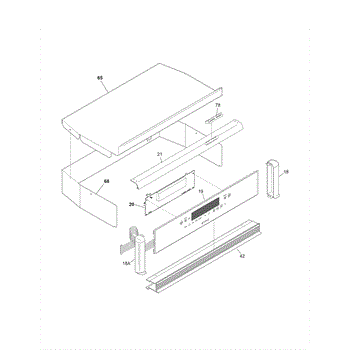

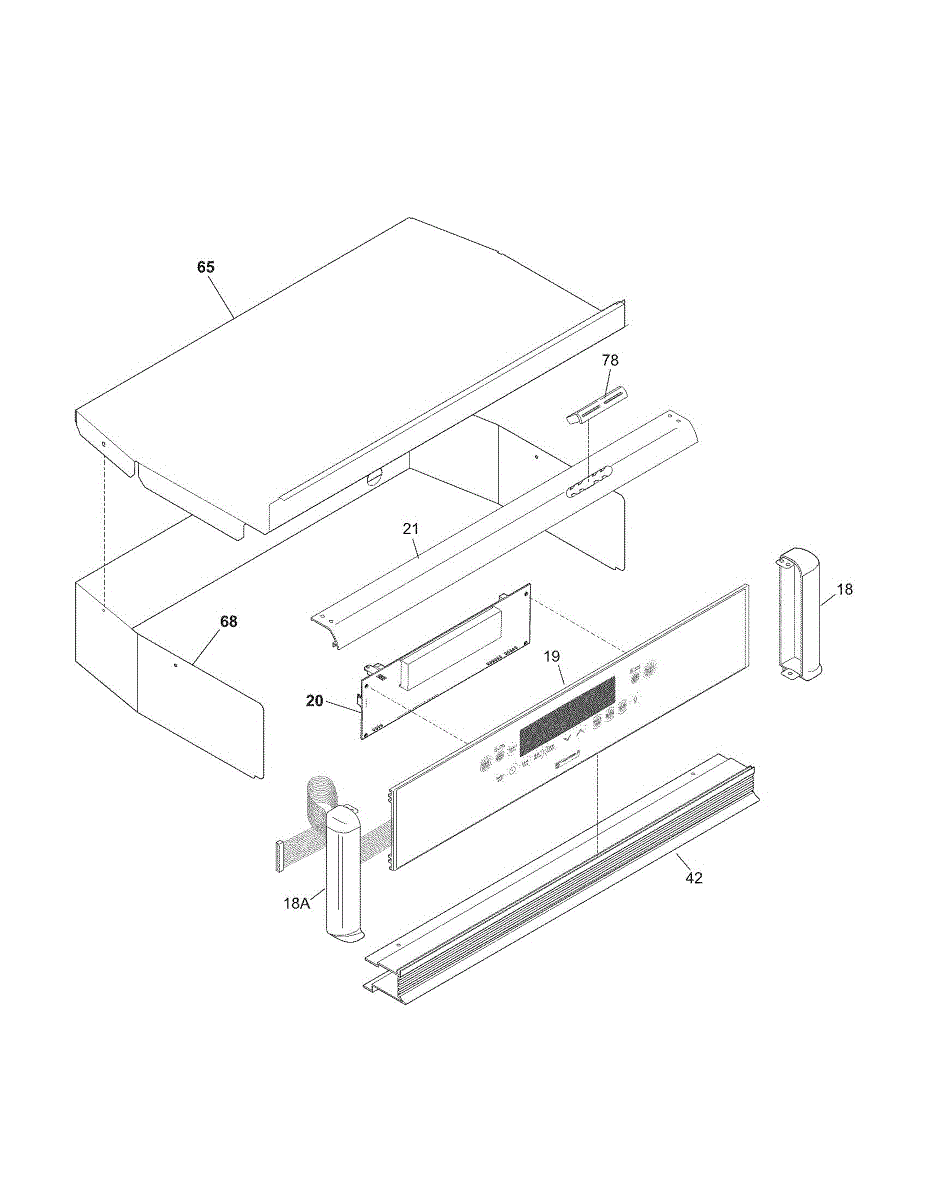

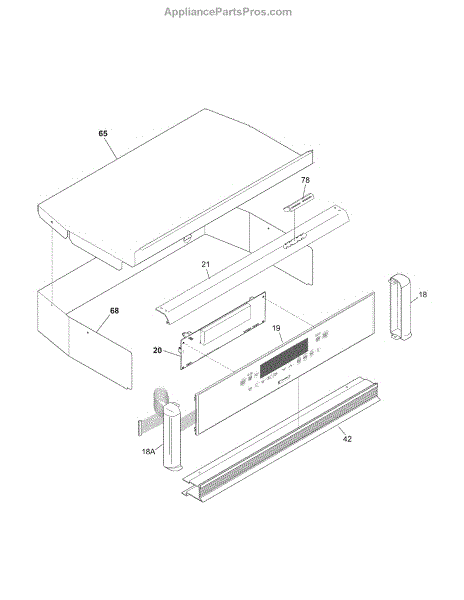

Parts for Kenmore 790.40619803 (79040619803, 790 40619803): Control Panel Parts

Replacement endcap for your oven. This trim piece installs on the control panel or frame to cover exposed edges. Order a new cap if yours is cracked or missing.

Replacement endcap for your oven. This trim piece installs on the control panel or frame to cover exposed edges. Order a new cap if yours is cracked or missing.

Replacement control panel for wall ovens. Restores the exterior console that secures knobs, buttons, and display. Replaces cracked, warped, or damaged panels.

Wall oven not responding to buttons or displaying error codes? This electronic control board restores proper operation and timing control.

Decorative trim piece for wall ovens. Replaces cracked, chipped, or missing trim around the oven frame. Restores the finished look of your appliance.

Replacement door trim for wall ovens. Covers the gap between oven door and frame. Order if original trim is cracked, broken, or missing.

This genuine front control panel replaces a worn or damaged console face to restore original appearance and button access. It keeps controls protected and provides a clean, functional surface for operating the appliance. What it does:

• Replaces the front control surface so buttons and display are properly exposed and protected
• Restores a secure mounting surface for switches, buttons, or overlays to ensure reliable user input
• Helps eliminate cosmetic damage such as scratches, cracks, or faded finishes that interfere with operation
• Useful when the existing panel is broken, warped, or no longer holds controls straight

• One front control panel

• Intended for users comfortable with basic disassembly of the console; refer to your model's service manual or IPL for exact steps
• Disconnect power (unplug or shut off breaker) before starting to avoid electrical shock
• Keep screws and small parts organized during removal; some panels attach behind trim or under bezels

This repair parts list is the manufacturer's parts diagram used to identify components and part numbers for service and ordering. It helps technicians and DIYers the correct replacement parts before ordering. What it does:

• Shows the appliance's component breakdown so you can identify the exact parts needed
• Matches illustrated part numbers to physical components for faster ordering
• Helps avoid ordering incorrect or incompatible replacement parts
• Useful reference when diagnosing which part may be failing

• This is an informational parts diagram — no installation hardware or tools included
• Use the diagram to before ordering replacements
• Keep the sheet with service records for future reference

Replacement mounting screw for ovens and ranges. Secures panels, trim, or brackets to the appliance frame. Needed when original is stripped or missing.

Wire harness for electric wall ovens. Connects electrical components within the oven cavity. Replace if wires are frayed, damaged, or connectors are broken.

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

Mounting screw for electric range, oven, or wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.
