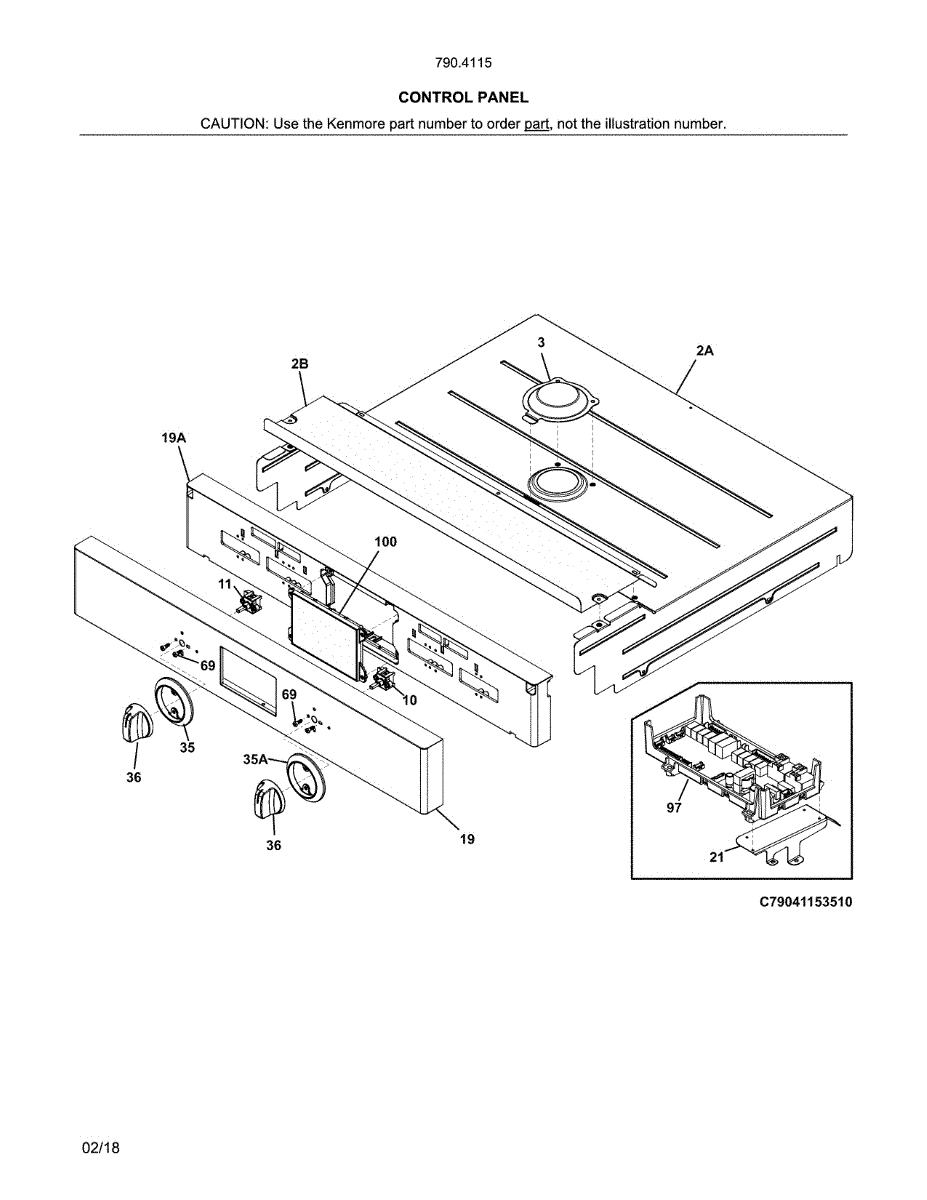

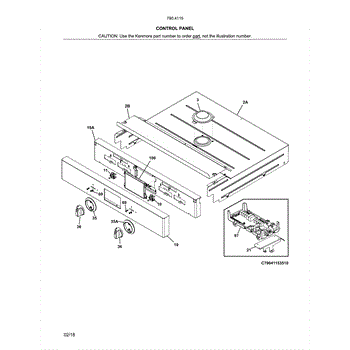

Parts for Kenmore 790.41153513 (79041153513, 790 41153513): Control Panel Parts

This shield is a small protective trim piece used on select Frigidaire appliances to cover and protect openings and mounting areas from debris and wear. It helps maintain proper airflow and keeps internal components shielded. What it does:

• Covers exposed openings or fasteners to prevent debris buildup and reduce wear
• Helps direct airflow and protect seals or insulation from damage
• Reduces the chance of contact with moving or hot components
• Commonly replaced when cracked, warped, or missing

• Designed for a simple replacement; usually secured with screws or snap-fit tabs
• Turn off and unplug the appliance before servicing
• Handle gently to avoid bending tabs; align mounting holes before fastening

This replacement shield is a molded protective cover that shields internal components from debris and directs airflow for reliable operation. It restores proper component protection and helps reduce noise from loose or damaged covers. What it does

• Protects wiring, sensors, and nearby components from contact, dirt, and debris
• Helps maintain correct airflow routing around internal parts
• Reduces rattles or vibration noises caused by a broken or loose shield
• Prevents accidental contact with moving or hot parts during use

• One replacement shield

• Disconnect power before attempting any service to avoid shock or injury
• Inspect mounting tabs and fasteners; replace any damaged clips for secure fit
• Use basic hand tools; avoid forcing the part to prevent breakage

This potentiometer is a rotary control that changes resistance to the appliance's control circuit, restoring accurate user adjustment of settings. It replaces a worn or faulty knob control for responsive, reliable input. What it does:

• Varies electrical resistance as the knob is turned to change settings
• Restores proper control response when a knob no longer adjusts levels
• Stops intermittent or erratic changes caused by worn internal contacts
• Provides a direct, mechanical replacement for a failed rotary control

• Disconnect power to the appliance before starting any repair
• Remove the control knob and any trim to access the mounting screws or clips
• Handle the control and any circuit board connections carefully to avoid damage

Replacement potentiometer that restores smooth, variable control for a range of appliance front-panel settings. Installs in the control console to return predictable adjustment of temperature, speed, or other user-selected functions. What it does:

• Converts knob rotation into a changing electrical signal so the control board can vary output.
• Replaces worn or noisy rotary resistance controls that cause erratic or imprecise settings.
• Can help with symptoms such as unresponsive knobs, intermittent changes in output, or inconsistent control behavior.
• Matches the original electrical interface to maintain proper control-system function.

• Always disconnect power to the appliance before servicing to avoid shock or injury.
• Basic electrical and mechanical skills required.
• Replacement typically requires removing the control panel or console; keep track of fasteners and wire orientation.
• Verify the part number on your appliance before ordering to ensure correct fit.

A replacement control panel bezel that restores the finished trim around the appliance's user controls. Replaces damaged, cracked or worn trim to improve appearance and help keep the control area protected from spills and debris. What it does:

• Covers and protects the edges of the appliance control panel and user interface
• Hides mounting points and gives the front of the appliance a finished look
• Helps prevent liquids and crumbs from getting into the control assembly
• Commonly replaced for visible cracks, chips, warping or paint wear

• Disconnect power to the appliance before any service
• Remove control knobs and any mounting screws or clips to free the old bezel
• Handle edges carefully — trim pieces can have sharp metal or plastic edges
• Reinstall using original fasteners; replace with OEM-specified hardware if fasteners are missing

This replacement control knob restores safe, reliable control of a range or oven function by giving you a solid grip for selecting settings. It replaces a worn, cracked, or loose knob so you can operate the appliance properly. What it does:

• Mounts onto the appliance control shaft to allow smooth selection of temperature or function
• Provides a tactile grip and visible pointer for accurate setting changes
• Common symptom: knob is cracked, loose, or spins without engaging the control
• Common symptom: missing knob prevents changing heat or function settings

• Disconnect power to the appliance before removing or installing the knob.
• Pull the old knob straight off the control shaft; align the new knob's splines and push on firmly.
• Do not force a knob that doesn't align—check shaft shape and orientation first.
• After installation, restore power and test the control functions.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This electronic oven control board is the brain of your range or wall oven. Replacing a failed board restores the display and keypad response and allows the appliance to heat and run bake/broil cycles reliably again.

• Controls relays for bake and broil circuits
• Uses oven sensor feedback to regulate and maintain temperature
• Powers the time/temperature display and reads keypad inputs
• Common symptoms: blank or erratic display, unresponsive buttons, F-code errors, oven won't heat or shuts off mid-cycle

• Disconnect power at the breaker before servicing; allow the appliance to cool
• Static-sensitive component—handle by the edges and avoid touching circuitry
• Note/photograph wire locations; transfer connectors one at a time to the new board
• Mount the board in the control panel, secure connections, restore power, and test

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

This wiring harness connects and routes power and signals between appliance components, restoring reliable electrical connections and resolving intermittent or non-working circuits. It's a direct-fit replacement designed to match OEM wiring layouts. What it does:

• Replaces worn or damaged wiring to restore power and signal paths
• Helps fix intermittent operation, components not receiving power, or burned/shorted wiring symptoms
• Maintains correct plug/connector locations and wire lengths for proper fit
• Keeps control and component circuits isolated and organized to prevent shorts

• One complete wiring harness assembly with factory-style connectors

• Disconnect power before starting any repair to avoid shock or injury
• Handle connectors by the housings; do not pull on individual wires
• Route harness following original wire clips and mounting points for secure fit
• If connectors are corroded or terminals are damaged, replace them before reassembly

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
