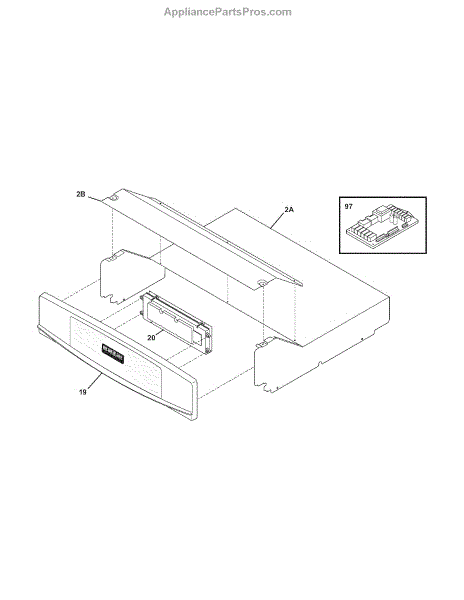

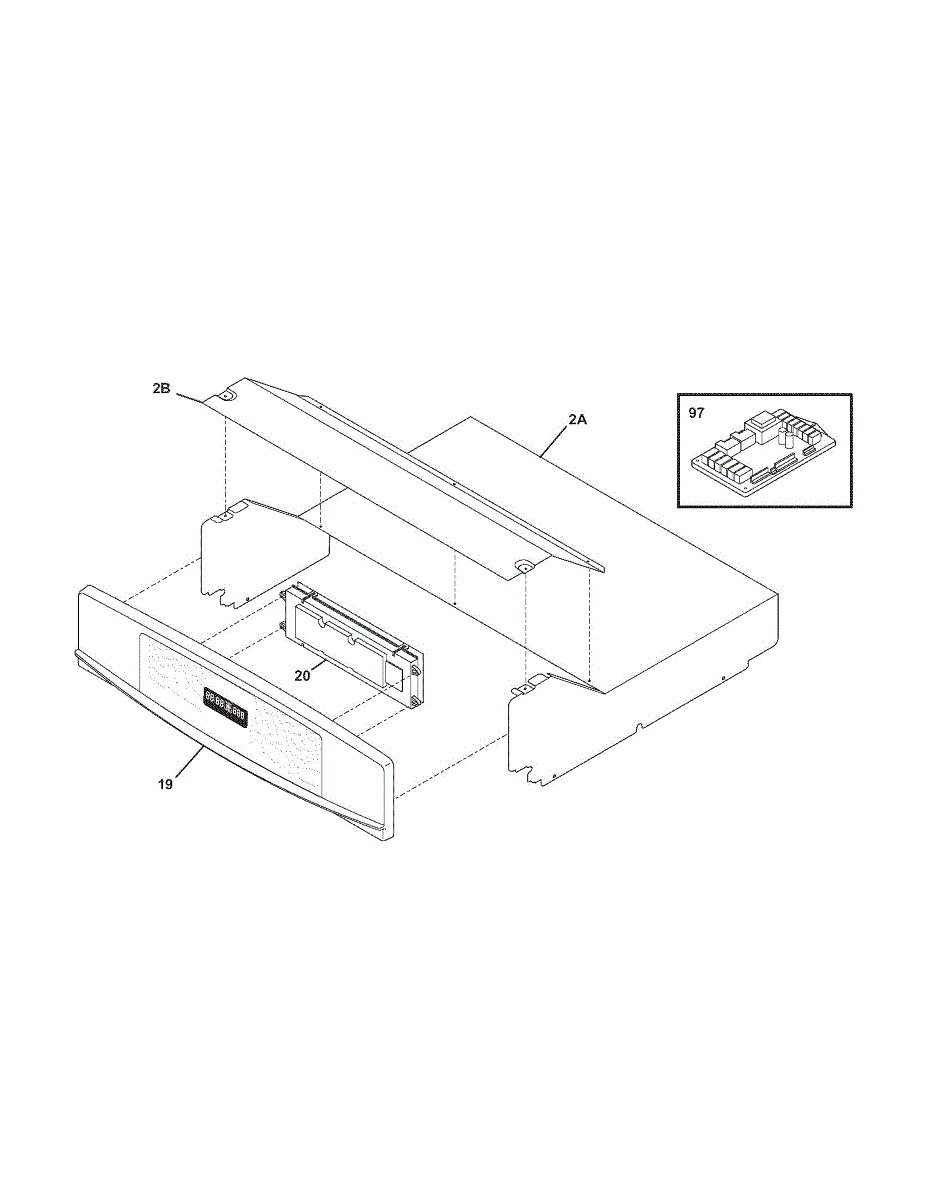

Parts for Kenmore 790.47732406 (79047732406, 790 47732406): Control Panel Parts

Oven not heating or broil element staying on constantly? The relay control board regulates temperature by receiving signals from the main control board.

This repair parts list is the technician parts diagram and item index used to identify service parts and assembly locations. It helps identify the correct replacement parts and where each part fits on the appliance. What it does:

• Shows exploded diagrams and part numbers for assemblies and components
• Helps identify the correct replacement part by location and reference number
• Supports accurate parts ordering and quicker repairs
• Useful for service techs and knowledgeable DIYers verifying parts

• This item is a reference document, not a physical hardware component to install
• Use the diagram and part numbers to order the correct replacement parts only
• Keep the document with service records for future maintenance

Wire harness for electric wall ovens. Connects electrical components within the oven cavity. Replace if wires are frayed, damaged, or connectors are broken.

Replacement instruction sheet for your wall oven. Includes operating guidelines and care information. Ideal if your original manual is lost or damaged.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation
