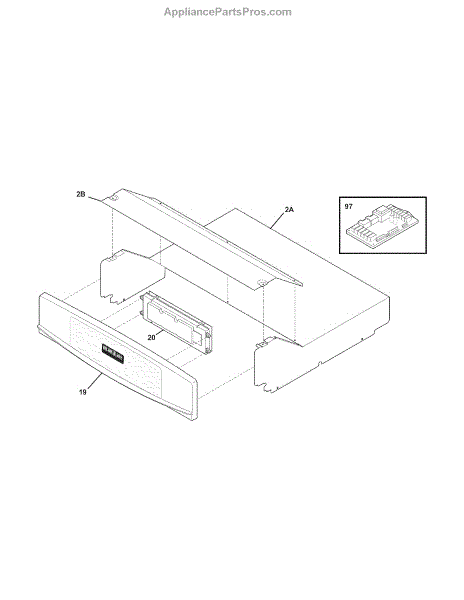

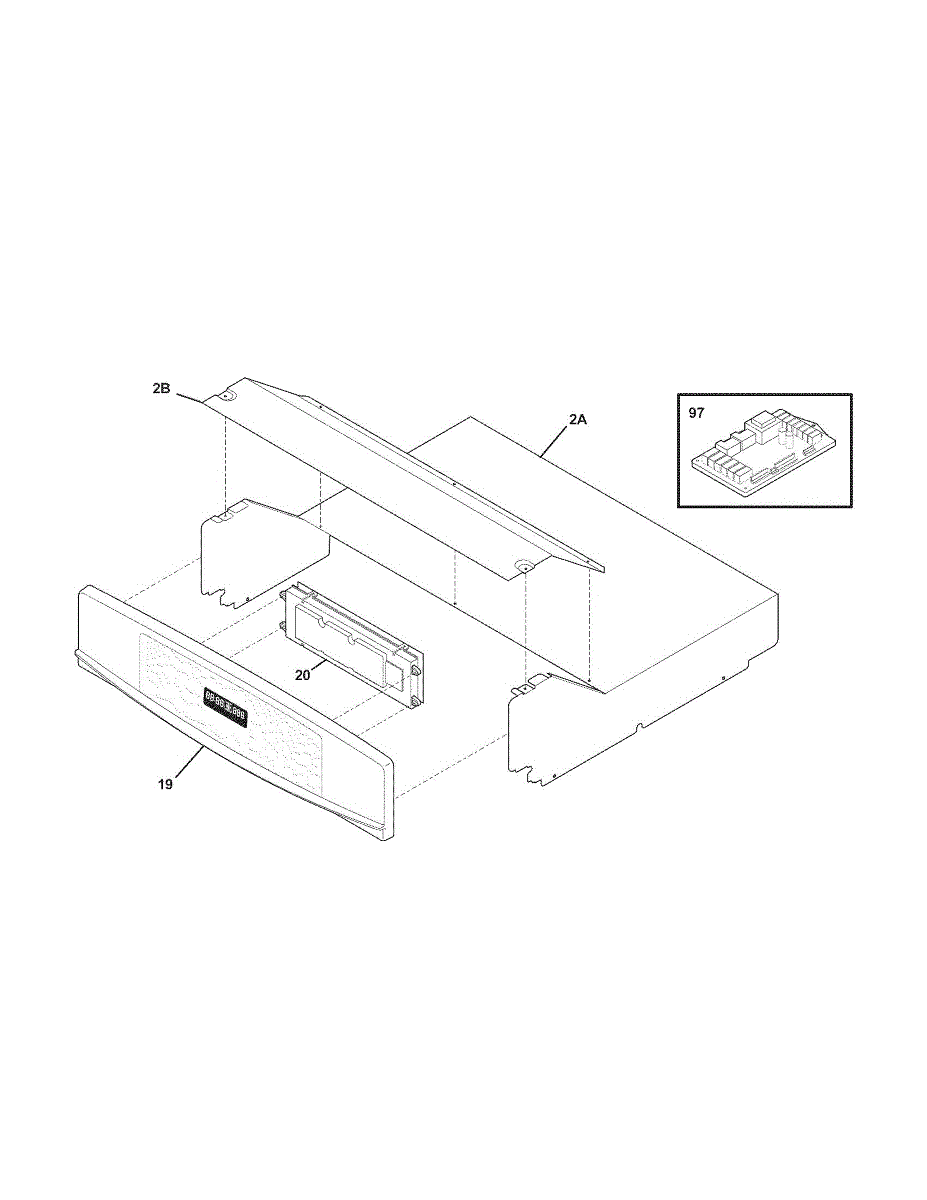

Parts for Kenmore 790.47732407 (79047732407, 790 47732407): Control Panel Parts

Oven not heating or broil element staying on constantly? The relay control board regulates temperature by receiving signals from the main control board.

This repair parts list is a printed literature insert that shows the appliance's parts breakdown to help identify replacement components and simplify ordering. Keep it handy during diagnostics and parts replacement. What it does:

• Provides a visual exploded diagram and parts-identification list for quick reference
• Speeds up troubleshooting by showing component locations and relationships
• Reduces ordering errors by matching part names and quantities to the assembly

• This is reference literature only; no tools or hardware are included
• Use the parts list during repair—keep a copy with your service documentation
• Handle printed pages carefully to avoid tearing or smudging critical information

Wire harness for electric wall ovens. Connects electrical components within the oven cavity. Replace if wires are frayed, damaged, or connectors are broken.

Replacement instruction sheet for your wall oven. Includes operating guidelines and care information. Ideal if your original manual is lost or damaged.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation
