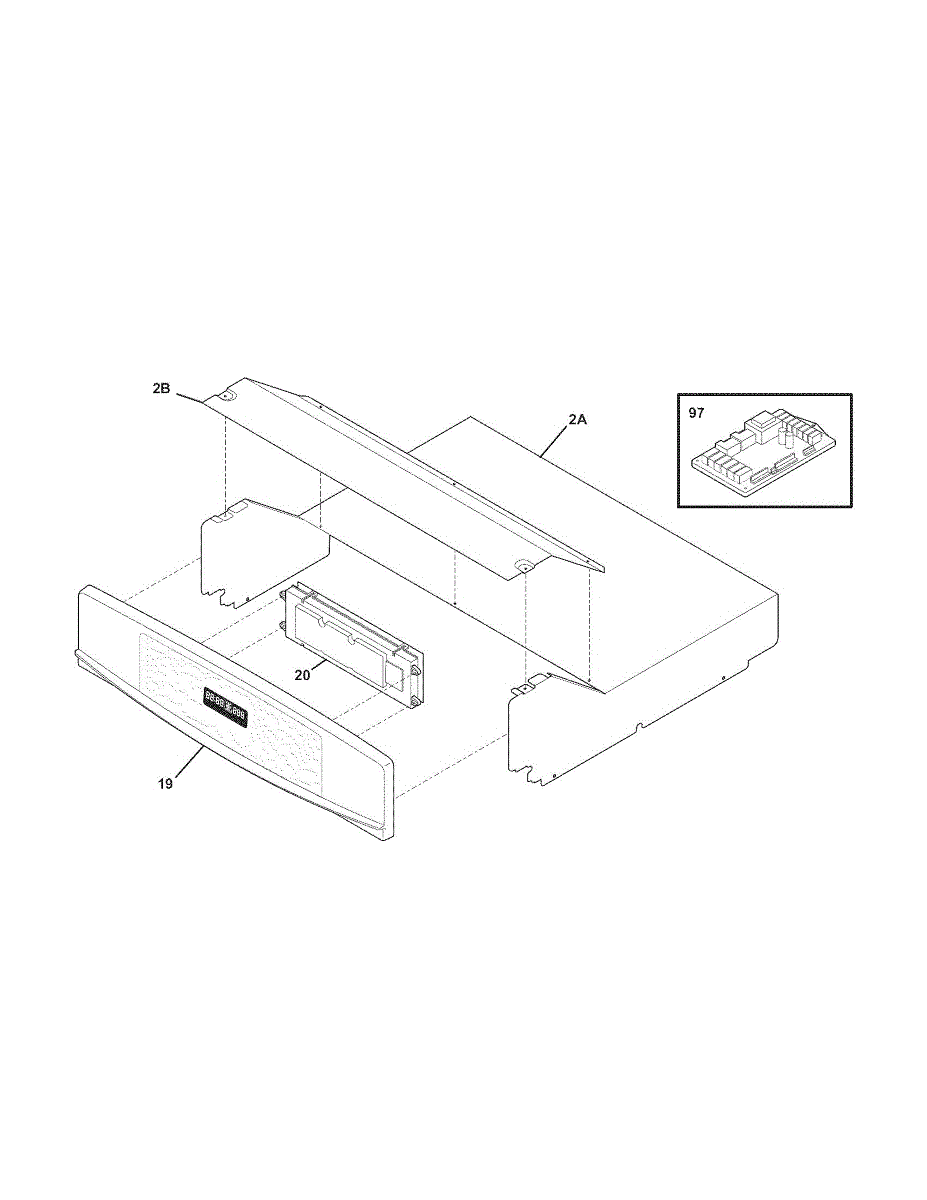

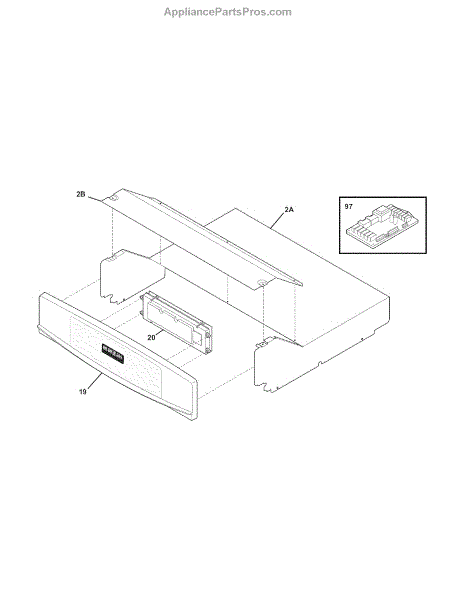

Parts for Kenmore 790.47763407 (79047763407, 790 47763407): Control Panel Parts

Oven not heating or broil element staying on constantly? The relay control board regulates temperature by receiving signals from the main control board.

This repair parts list is the exploded-view diagram and parts index used to identify service parts and their locations for repair. It helps you find the exact replacement component before ordering. What it does:

• Shows the appliance's components in an exploded diagram so you can locate parts visually
• Lists part names and reference numbers used by parts suppliers
• Helps prevent ordering the wrong component by confirming exact part location and ID
• Useful for planning a repair or communicating needed parts

• This item is a reference document, not a wearable or replaceable component; use it to identify parts before repair
• Have your appliance model and serial number available when matching parts from the list
• Keep the document dry and store with other appliance service information
• For safety, disconnect power and follow manufacturer instructions when performing any repairs

Wire harness for electric wall ovens. Connects electrical components within the oven cavity. Replace if wires are frayed, damaged, or connectors are broken.

Replacement instruction sheet for your wall oven. Includes operating guidelines and care information. Ideal if your original manual is lost or damaged.

This stainless steel cleaner restores and protects stainless surfaces, removing fingerprints, smudges and light soils to improve appearance and make routine cleaning easier. Safe for finished stainless when used as directed. What it does:

• Cleans away fingerprints, grease, and light residue from stainless surfaces
• Restores a streak-free shine and improves overall appearance
• Helps reduce visible smudges for easier routine maintenance
• Leaves a light protective finish that helps resist fingerprints between applications

• Read and follow the product label before use; test on an inconspicuous area first
• Apply to a soft cloth and wipe with the grain of the stainless; avoid abrasive pads
• Do not use on hot surfaces, painted finishes, or unsealed metals unless manufacturer approves
• Keep out of reach of children and avoid contact with eyes; if contact occurs, rinse thoroughly

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation
