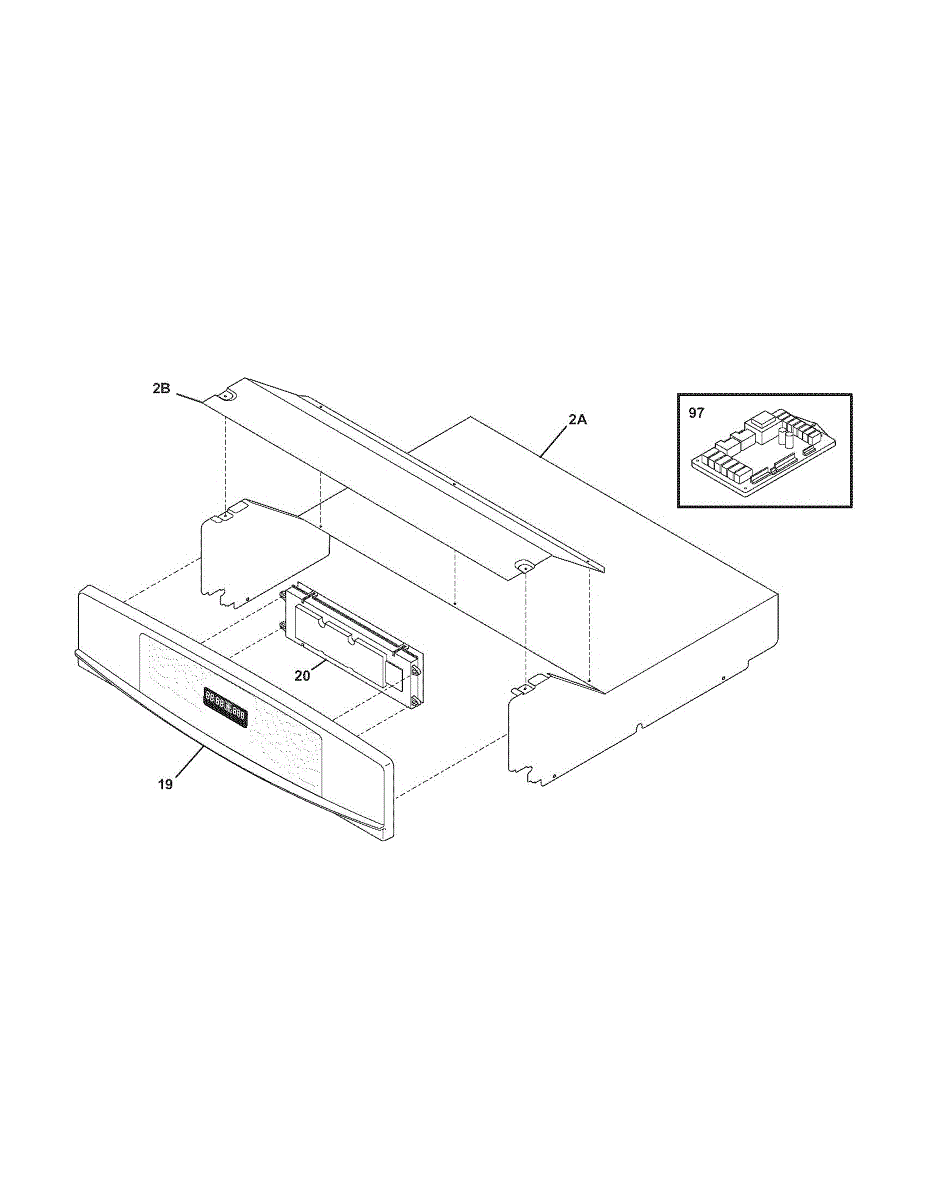

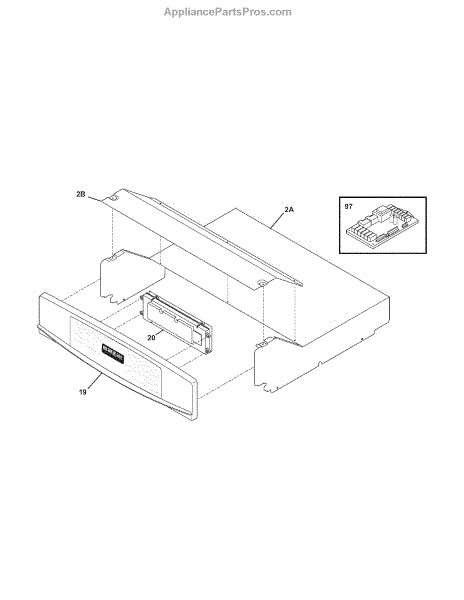

Parts for Kenmore 790.47764405 (79047764405, 790 47764405): Control Panel Parts

This control panel assembly houses the oven's main user interface and electronic controls so you can set temperatures, timers and cooking modes reliably. Replaces a worn or non-responsive panel to restore normal oven control operation. What it does:

• Provides the touchpad/buttons and display circuitry for oven functions and settings
• Sends user commands to the oven control board so cycles, temperature and timers run as selected
• Commonly replaces panels that are cracked, unresponsive, or showing display/errors
• Helps resolve symptoms like unresponsive buttons, blank or garbled displays, and incorrect control behavior

• One control panel assembly (complete electronic user interface as shown)

• High-level swap; disconnect power at the breaker before any service to avoid shock
• Some models require removing the oven door or inner trim for panel access—keep fasteners organized
• Handle the assembly by its edges to avoid damaging the display or touch components

Oven not heating or broil element staying on constantly? The relay control board regulates temperature by receiving signals from the main control board.

This repair parts list is the factory parts diagram and reference sheet used to identify replacement components for service and ordering. It helps technicians and owners locate parts and components before repair. What it does:

• Shows the parts diagram and reference numbers for the appliance
• Helps identify the correct replacement parts and quantities
• Streamlines ordering by matching component locations to part numbers
• Useful reference during troubleshooting and repairs

• This item is a reference document only; it does not replace or repair mechanical components
• Keep the sheet with the appliance service records for future reference
• Protect from moisture and damage to preserve legibility
• Recycle or dispose of according to local regulations when no longer needed

Wire harness for electric wall ovens. Connects electrical components within the oven cavity. Replace if wires are frayed, damaged, or connectors are broken.

Replacement instruction sheet for your wall oven. Includes operating guidelines and care information. Ideal if your original manual is lost or damaged.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation
