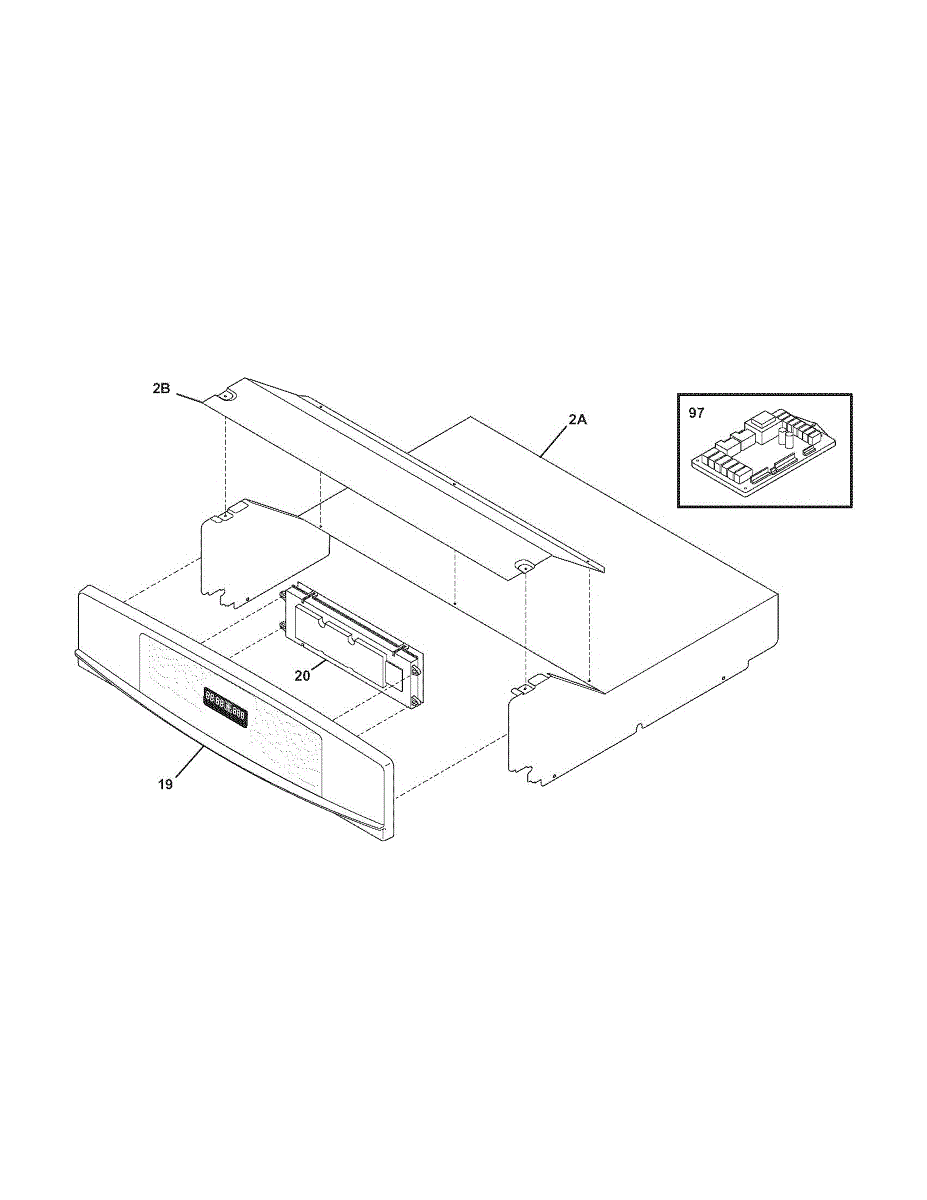

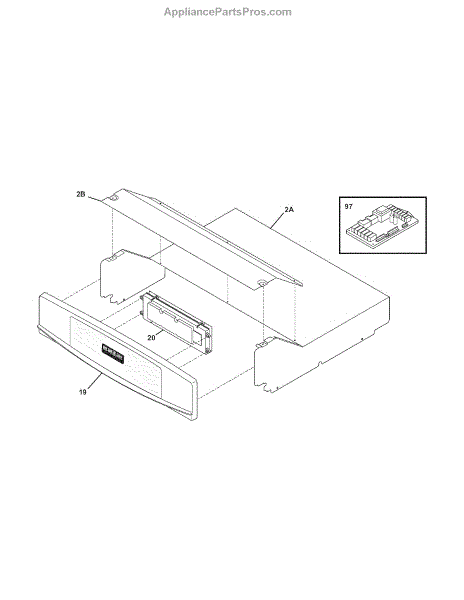

Parts for Kenmore 790.47769404 (79047769404, 790 47769404): Control Panel Parts

This control panel assembly houses the oven's main user interface and electronic controls so you can set temperatures, timers and cooking modes reliably. Replaces a worn or non-responsive panel to restore normal oven control operation. What it does:

• Provides the touchpad/buttons and display circuitry for oven functions and settings
• Sends user commands to the oven control board so cycles, temperature and timers run as selected
• Commonly replaces panels that are cracked, unresponsive, or showing display/errors
• Helps resolve symptoms like unresponsive buttons, blank or garbled displays, and incorrect control behavior

• One control panel assembly (complete electronic user interface as shown)

• High-level swap; disconnect power at the breaker before any service to avoid shock
• Some models require removing the oven door or inner trim for panel access—keep fasteners organized
• Handle the assembly by its edges to avoid damaging the display or touch components

Oven not heating or broil element staying on constantly? The relay control board regulates temperature by receiving signals from the main control board.

Wire harness for electric wall ovens. Connects electrical components within the oven cavity. Replace if wires are frayed, damaged, or connectors are broken.

Replacement instruction sheet for your wall oven. Includes operating guidelines and care information. Ideal if your original manual is lost or damaged.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.
