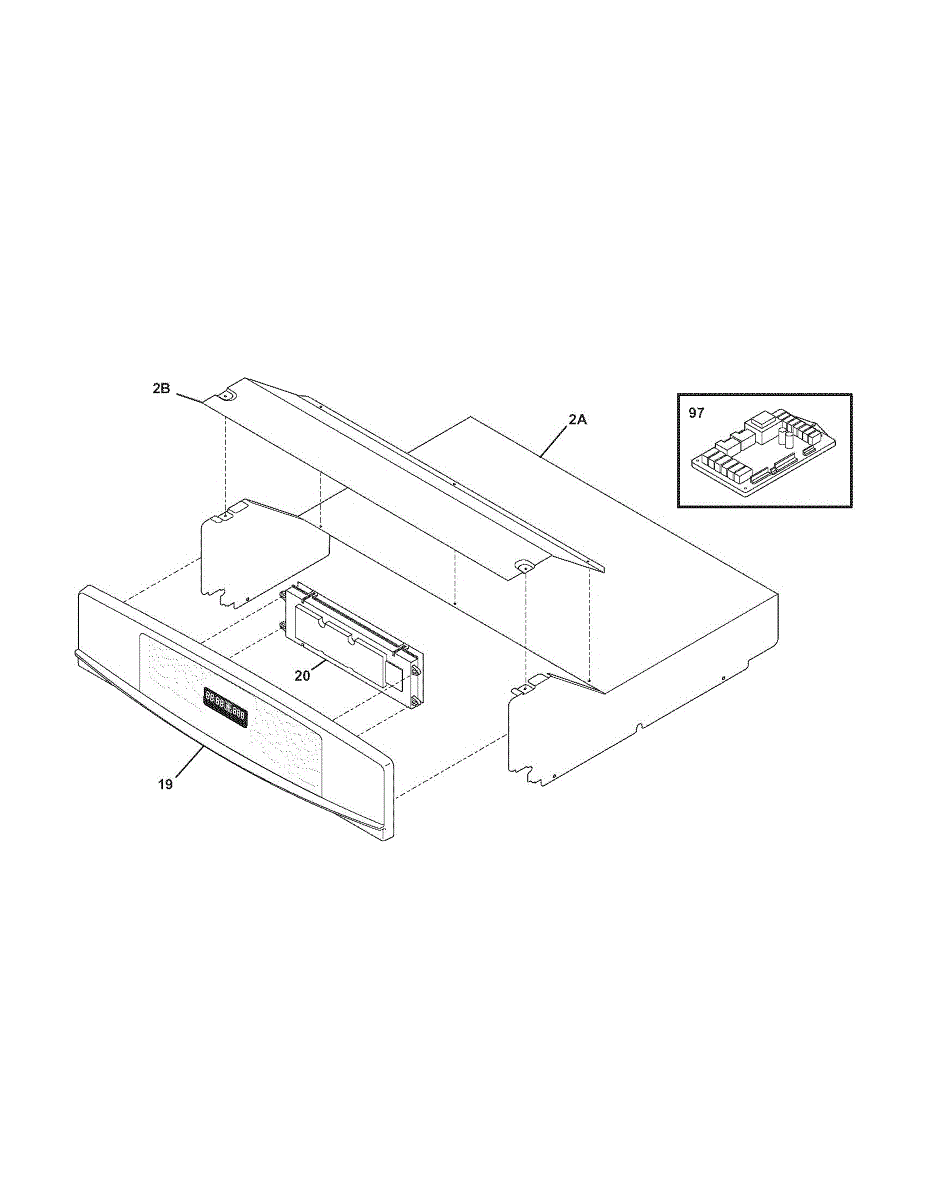

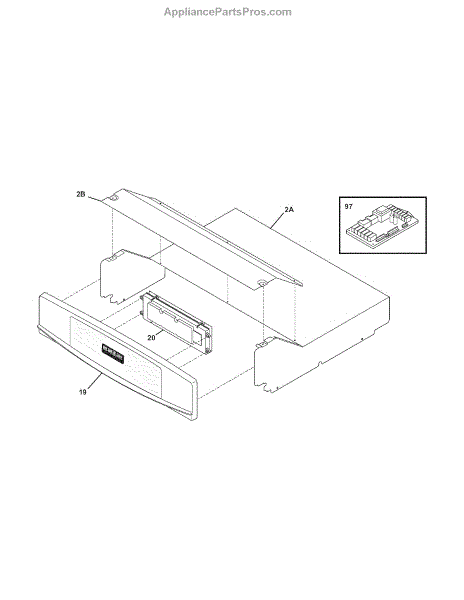

Parts for Kenmore 790.47772404 (79047772404, 790 47772404): Control Panel Parts

This control panel assembly replaces the front console that houses the oven's touch controls and display, restoring responsive buttons and clear readouts so you can select bake, broil and timer functions with confidence. What it does:

• Replaces a damaged or unresponsive front control console for electronic oven/range control
• Restores touchpad/button responsiveness and display visibility
• Resolves symptoms like blank or flickering display, non-working buttons, or intermittent control response
• Interfaces with the oven's control board to send user commands for bake, broil, timer and clock functions

• Disconnect power at the breaker before starting work to avoid shock or injury
• Handle the display and circuit board carefully; avoid flexing or contact with metal tools
• Some installations require transferring mounting brackets or wiring harnesses from the old panel—inspect and reuse as needed

Oven not heating or broil element staying on constantly? The relay control board regulates temperature by receiving signals from the main control board.

Replacement instruction sheet for your wall oven. Includes operating guidelines and care information. Ideal if your original manual is lost or damaged.

Wire harness for electric wall ovens. Connects electrical components within the oven cavity. Replace if wires are frayed, damaged, or connectors are broken.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.
