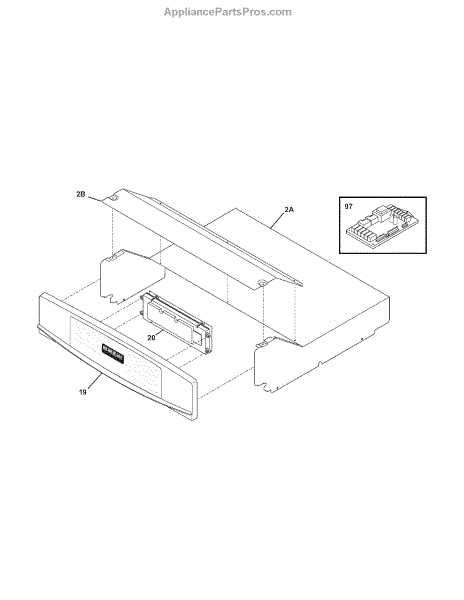

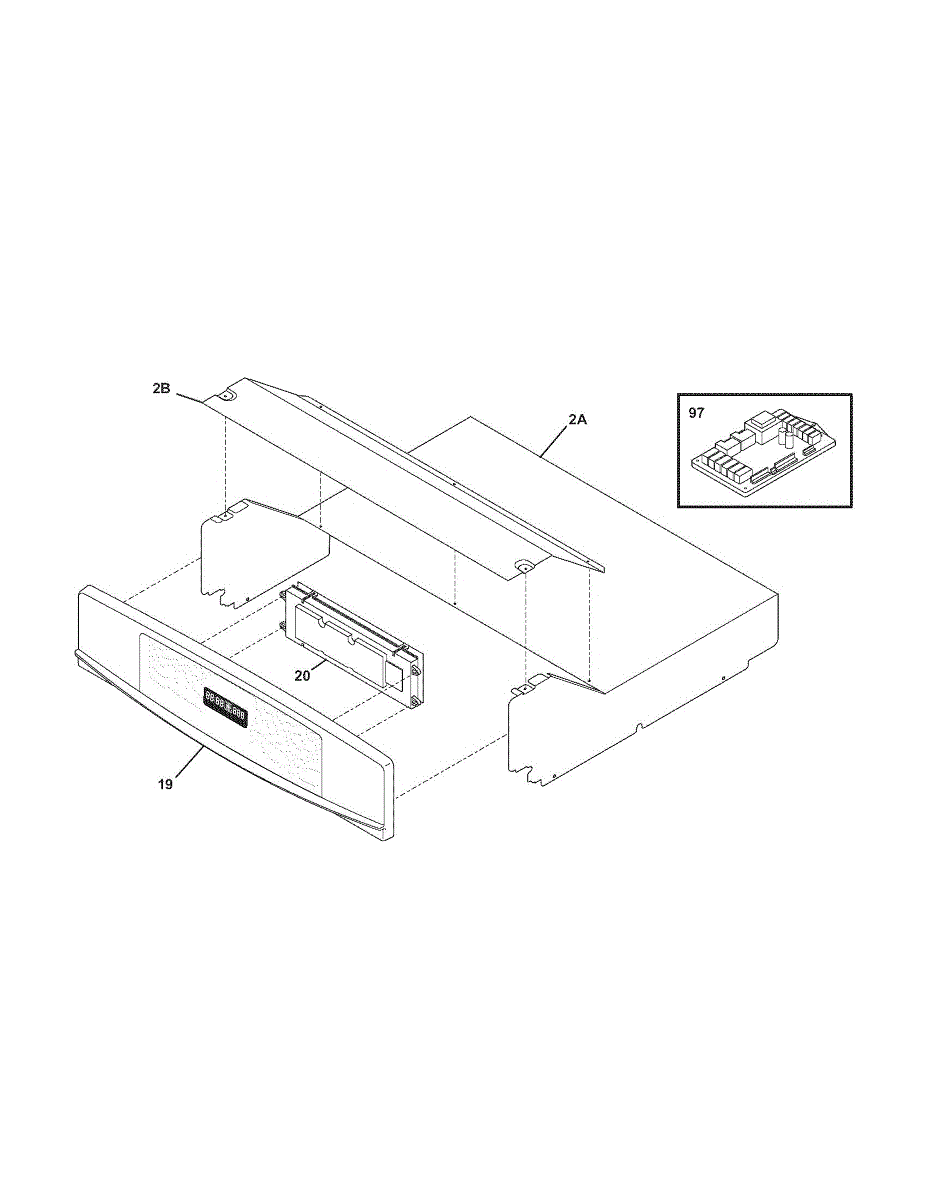

Parts for Kenmore 790.47779405 (79047779405, 790 47779405): Control Panel Parts

This control panel assembly replaces the front console that houses the oven's touch controls and display, restoring responsive buttons and clear readouts so you can select bake, broil and timer functions with confidence. What it does:

• Replaces a damaged or unresponsive front control console for electronic oven/range control
• Restores touchpad/button responsiveness and display visibility
• Resolves symptoms like blank or flickering display, non-working buttons, or intermittent control response
• Interfaces with the oven's control board to send user commands for bake, broil, timer and clock functions

• Disconnect power at the breaker before starting work to avoid shock or injury
• Handle the display and circuit board carefully; avoid flexing or contact with metal tools
• Some installations require transferring mounting brackets or wiring harnesses from the old panel—inspect and reuse as needed

Oven not heating or broil element staying on constantly? The relay control board regulates temperature by receiving signals from the main control board.

This repair parts list is a parts diagram and itemized list used to identify components and part numbers for service and replacement. It helps the correct parts before ordering and speeds accurate repairs. What it does:

• Shows component locations and reference numbers for the appliance
• Lists part names and corresponding reference numbers for easy identification
• Supports accurate ordering and reduces the chance of ordering the wrong part

• No installation required; use as a reference during diagnosis and repair
• Always disconnect power and follow safety instructions before servicing the appliance
• Keep the parts list with the unit or service records for future reference
• Follow OEM service instructions and diagrams when replacing parts

Replacement instruction sheet for your wall oven. Includes operating guidelines and care information. Ideal if your original manual is lost or damaged.

Wire harness for electric wall ovens. Connects electrical components within the oven cavity. Replace if wires are frayed, damaged, or connectors are broken.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation
