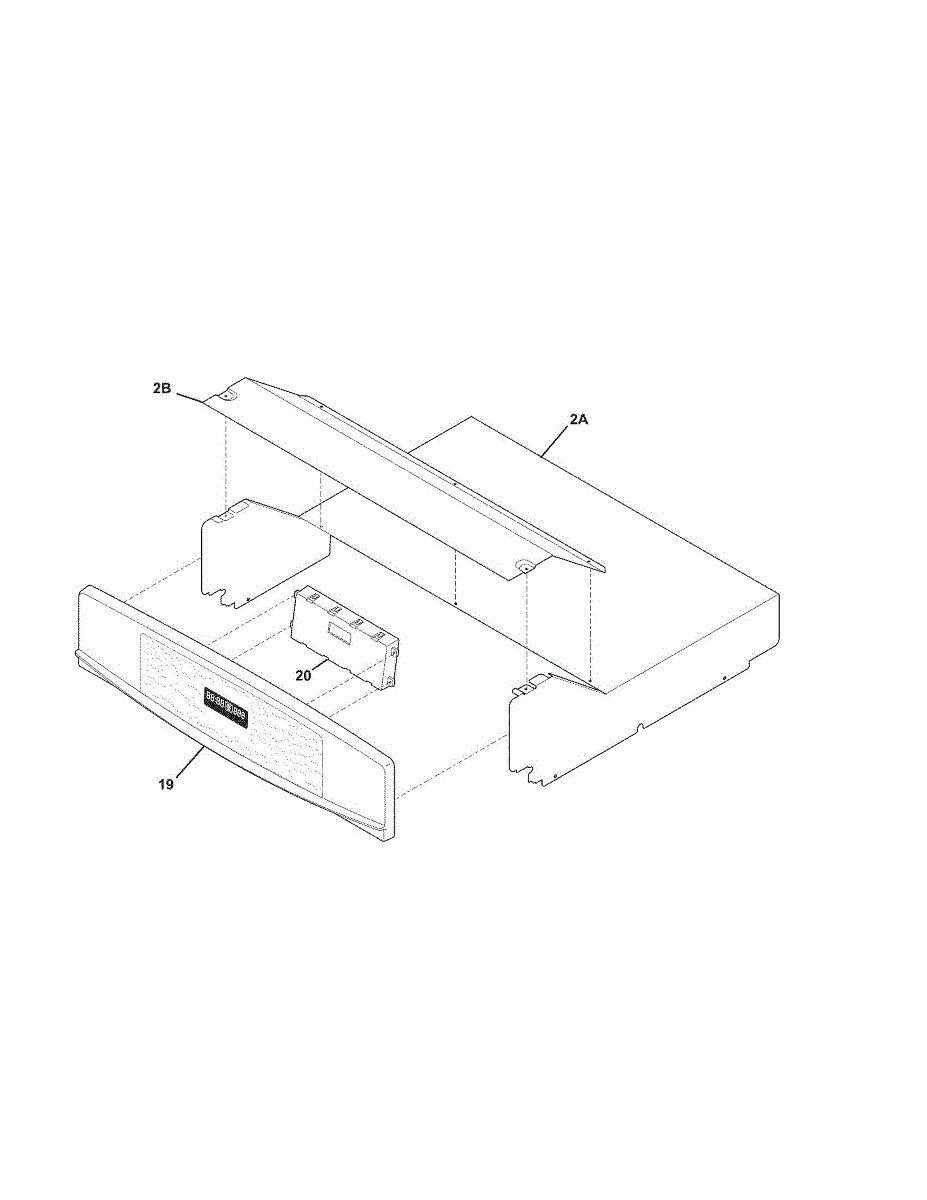

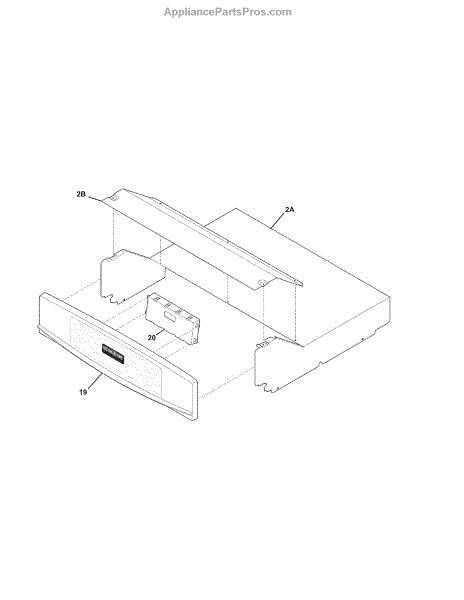

Parts for Kenmore 790.47782406 (79047782406, 790 47782406): Control Panel Parts

Replace your wall oven's cracked or unresponsive touch pad. This control interface installs on the front panel where buttons have worn or stopped responding.

Clock display blank or timer not working? This electronic clock timer control board restores time display and timed cooking functions in your wall oven.

Official service data sheet for your wall oven. Contains technical specifications, wiring diagrams, and repair information for technicians and DIYers.

This printed repair parts list is a service diagram booklet that helps identify appliance components and part numbers so you can order the correct replacement parts quickly and accurately. What it does:

• Shows exploded views and part callouts to locate specific components
• Lists OEM part numbers used to verify correct replacements
• Speeds troubleshooting by clearly mapping component locations

• This is a reference document; no physical installation required
• Keep the booklet dry and stored with appliance records for future repairs
• Use the listed OEM part numbers to order replacements
• When performing repairs, disconnect power and follow manufacturer safety instructions

Replacement instruction sheet for your wall oven. Includes operating guidelines and care information. Ideal if your original manual is lost or damaged.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation
