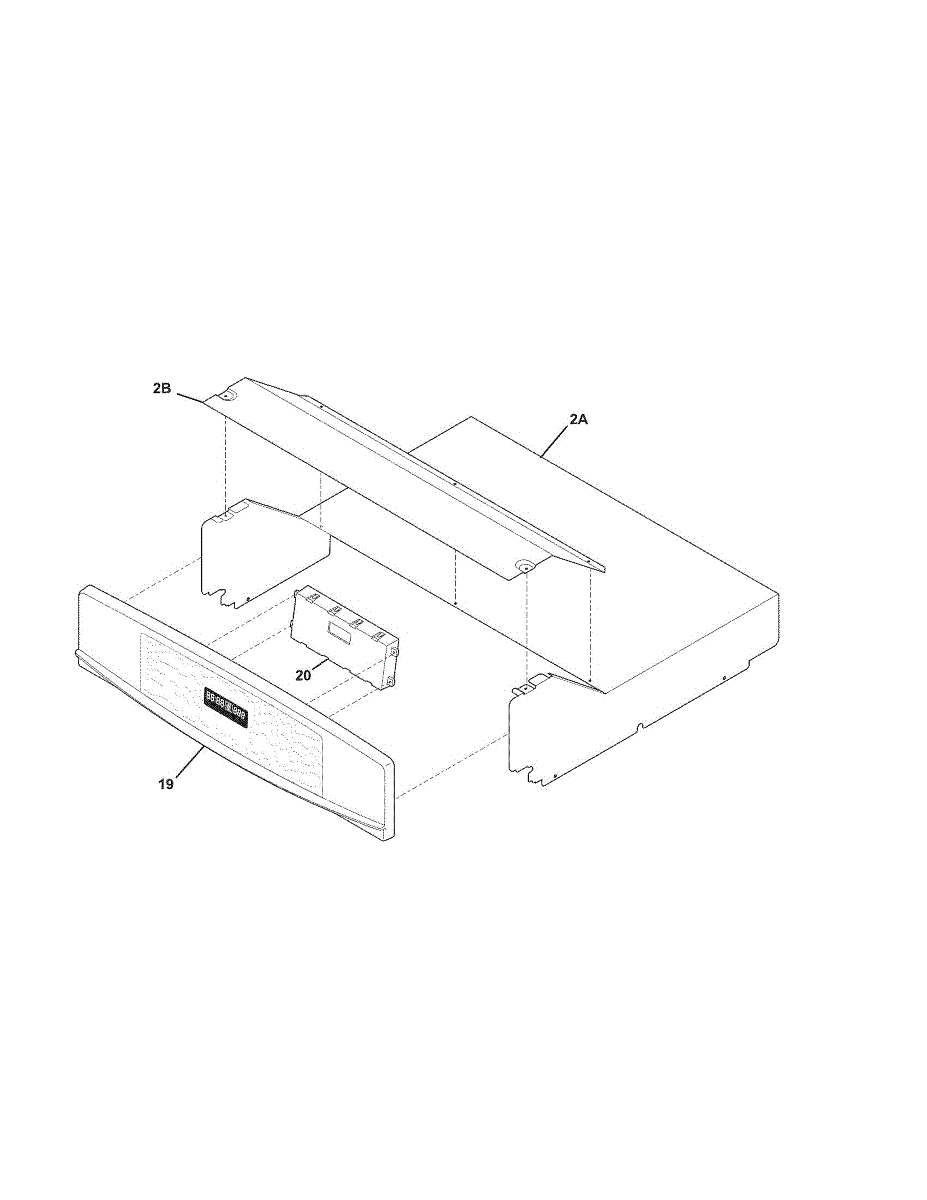

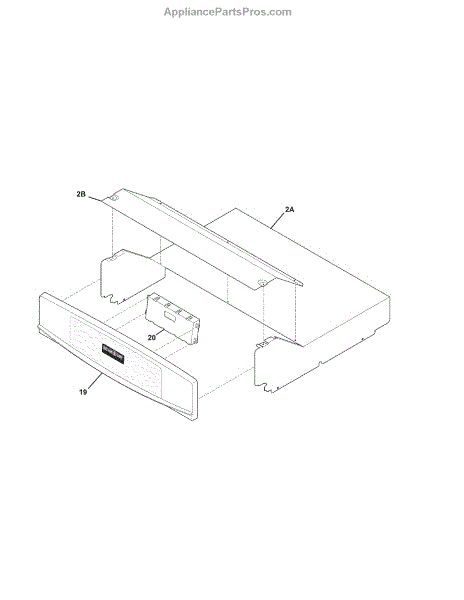

Parts for Kenmore 790.47832407 (79047832407, 790 47832407): Control Panel Parts

This repair parts list is the factory parts diagram and itemized list that helps identify replacement components and their part numbers for service or ordering. It speeds part selection by matching diagram callouts to OEM part numbers. What it does:

• Provides an exploded-parts diagram to show component locations and assembly relationships
• Lists OEM part numbers and callout references used for ordering replacements
• Helps technicians and DIYers the exact parts needed before repair
• Reduces ordering errors by clarifying part orientation and quantity in assemblies

• This is a reference document only; use with the appliance model-specific service manual when needed
• Keep the sheet dry and accessible in the service area for parts lookup during repairs
• If a component is corroded or unsafe, disconnect power and follow proper safety procedures before servicing

Official service data sheet for your wall oven. Contains technical specifications, wiring diagrams, and repair information for technicians and DIYers.

Replacement instruction sheet for your wall oven. Includes operating guidelines and care information. Ideal if your original manual is lost or damaged.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation
