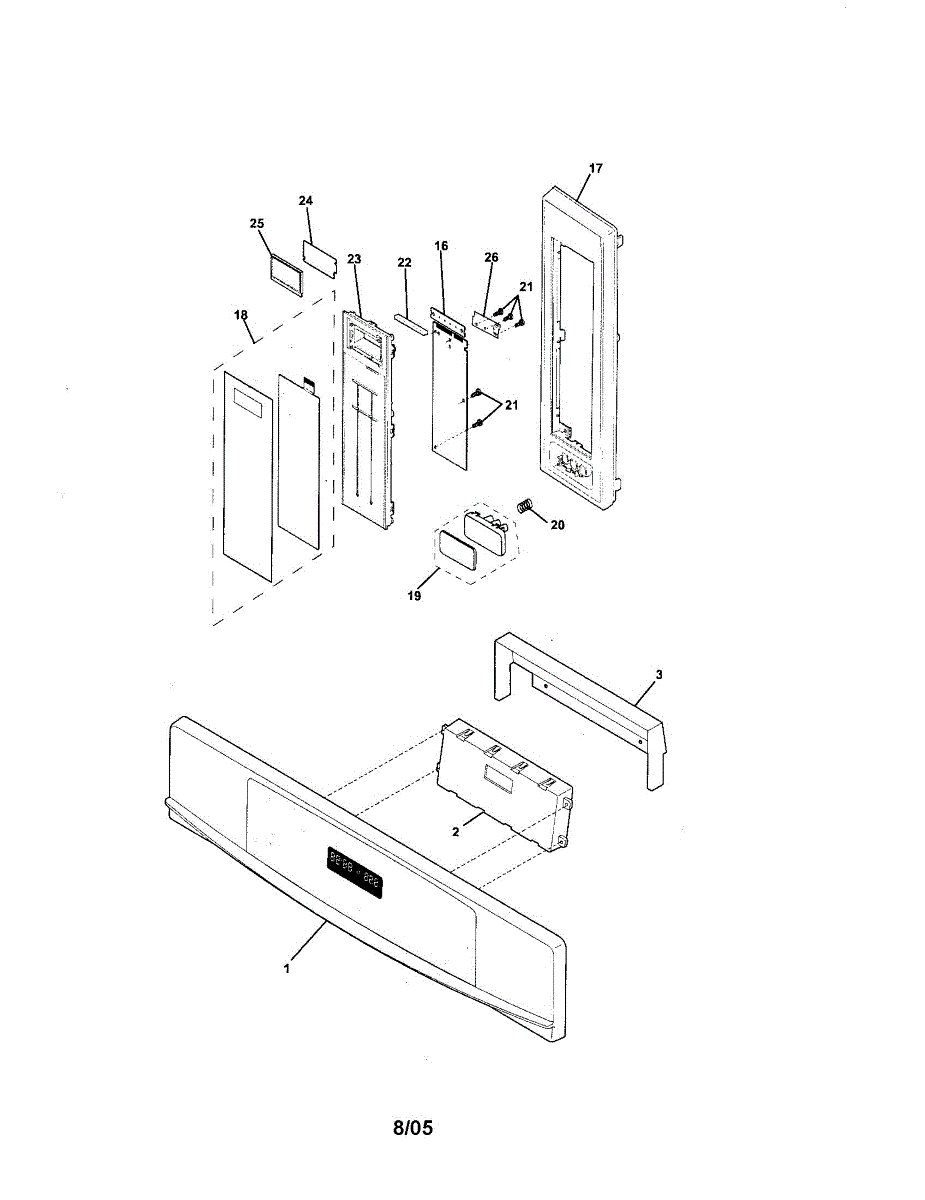

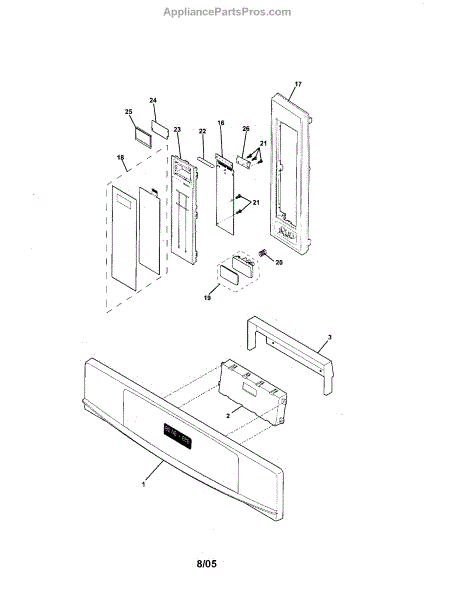

Parts for Kenmore 790.47844400 (79047844400, 790 47844400): Control Panel Parts

Replace your wall oven's touch pad control panel if the surface is cracked, worn, or unresponsive. Restores the appearance and function of your oven's interface.

A replacement hex-head screw used to secure appliance regulator brackets and similar small components. Restores proper fastener fit so panels and brackets stay firmly attached. What it does

• Fastens regulator bracket and related sheet-metal components
• Provides a secure threaded connection for components where an 8-18 thread is specified
• Helps eliminate looseness or rattling caused by a missing or damaged screw
• Matches the nickel/chrome finish commonly used on interior mounting locations

• One hex head screw (8-18 x 3/8), nickel finish

• Intended for use where an 8-18 x 3/8 hex screw is specified by the manufacturer
• Tighten to snug; avoid over-torquing which can strip sheet-metal threads
• Turn off power to the appliance before accessing internal components
• If the original screw used a lock washer or threadlocker, replace or reapply as appropriate

Fix F10 errors, runaway temperatures, or wrong element heating. This clock timer controls oven functions and timing. Moderate DIY repair solution.

Official service data sheet for your wall oven. Contains technical specifications, wiring diagrams, and repair information for technicians and DIYers.

Secures panels, brackets, and handles in refrigerators and other appliances. Replace missing or stripped screws to restore secure mounting.

This harness assembly is the appliance wiring connector bundle that carries power and signals between controls and components, restoring proper electrical connections for normal operation. What it does:

• Routes power and control signals between the control board and key components
• Replaces damaged, burned, or loose wiring that can cause intermittent operation
• Helps resolve symptoms like unresponsive controls, failure to start, or component loss of power
• Restores factory wiring layout and connector fit for reliable connections

• Disconnect power before starting; confirm power is off at the breaker
• Compare connectors and wire colors to the old harness before removal
• Route and secure harness to avoid heat or pinch points; use existing clips/mounts

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Mounting screw for electric range, oven, or wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged.

Fix a microwave that won't heat, turn, or run when you press start. This control board controls all functions and cycles. Moderate difficulty repair.

This door frame restores the outer trim that secures the refrigerator door assembly and improves fit-and-finish. It replaces a cracked, warped, or damaged outer frame to restore proper door alignment and appearance. What it does

• Replaces the outer trim that surrounds and supports the door assembly
• Helps maintain proper door alignment and sealing when the original frame is damaged
• Addresses visible cracks, dents, or separation around the door edge
• Prevents further damage to the door shell and mounting points

• One door frame (outer door trim) as shown

• High-level: remove the door from the appliance per manufacturer instructions before replacing the frame when required
• Use care to avoid scratching the door finish; soft surface and proper fastener handling recommended
• Tighten fasteners to manufacturer torque specs if provided; do not overtighten

Touch pad control panel overlay for wall ovens. Replaces worn, cracked, or unresponsive control panel surfaces. Restores clear button labels and functions.

A replacement tension spring used to restore normal movement and positioning for the affected appliance component. Replaces a worn or broken spring to help parts return to their intended position and reduce loose or uneven operation. What it does:

• Provides tension or counter-force for a door, drawer or linkage so the part moves smoothly and returns to position.
• Restores alignment and prevents sagging, slamming, or parts that don't stay in place.
• Reduces noise and uneven movement caused by a stretched or broken spring.
• Useful when a worn spring causes intermittent operation or poor component response.

• Disconnect power and water before servicing. Wear eye protection and gloves — springs can release suddenly.
• Inspect mounting points, clips and anchors; replace any damaged hardware to ensure proper function.
• Use appropriate tools (needle-nose pliers, spring hook) and follow OEM instructions for safe installation.

Mounting screw for microwave panels, trim, and brackets. Replaces lost or damaged fasteners to restore secure alignment and eliminate rattles or loose components.

Replace your microwave's touch pad panel if it's cracked, worn, or unresponsive. This control panel installs on the front console for easy navigation.

This LED light sheet is the refrigerator interior light assembly that provides even, long-lasting illumination so you can see inside the fresh food and freezer compartments. It replaces a failed or dim/fractured LED panel. What it does:

• Replaces the refrigerator's interior LED panel to restore consistent lighting
• Resolves symptoms such as no light, dim or flickering illumination, or visible damage to the light panel
• Provides a direct-fit LED sheet that mounts behind the interior lens or reflector
• Works with the refrigerator's existing wiring and connector

• Disconnect power to the appliance before beginning work to avoid shock
• Handle the LED sheet by the edges; avoid touching LEDs and circuit traces
• Use basic hand tools to remove the interior light cover and mounting screws; keep track of fasteners
