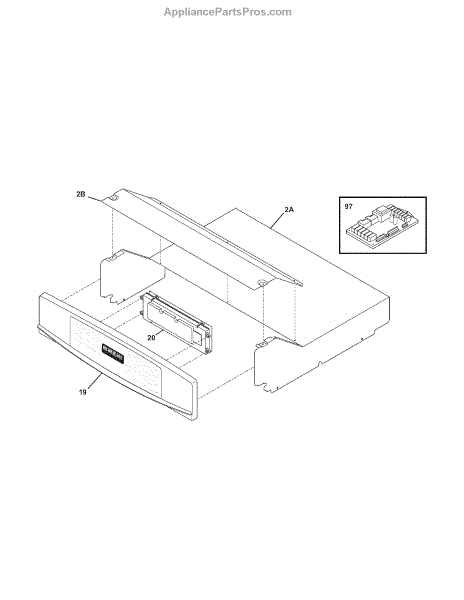

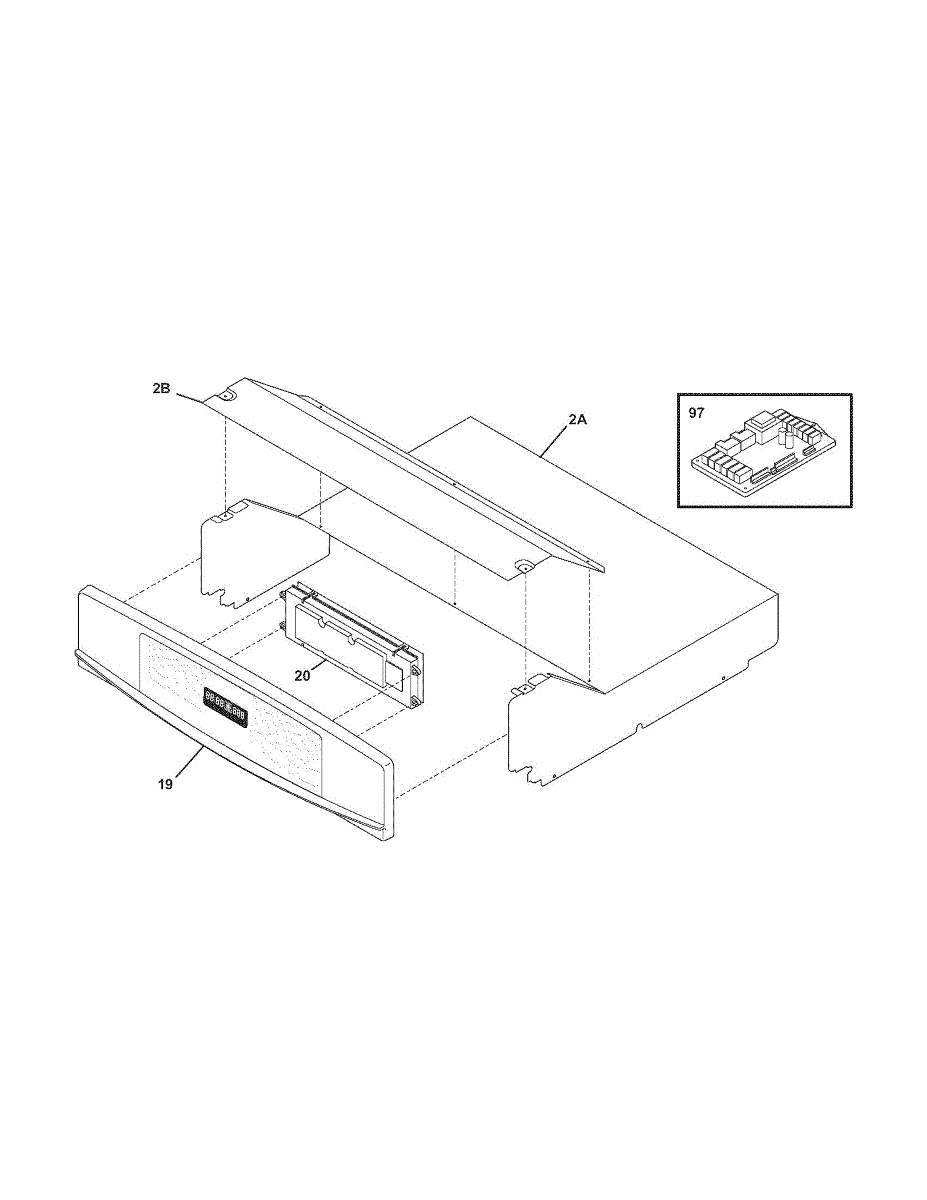

Parts for Kenmore 790.47872405 (79047872405, 790 47872405): Control Panel Parts

This control panel assembly replaces the console that houses the range's user interface and display, restoring reliable control of oven functions and cycle selection. It provides the buttons, display window, and mounting needed for normal operation. What it does:

• Replaces a damaged or unresponsive console that prevents setting oven temperature, timers, or cook modes
• Restores tactile buttons/touchpad and the LED/LCD display used for status and error messages
• Fixes symptoms like unlit or scrambled display, unresponsive control keys, or missing control functions
• Serves as the interface between the user and the oven control electronics

• Disconnect power to the appliance before starting any work to avoid shock or injury
• Installation typically requires removing the range backguard/console trim and unplugging the control cable(s)
• Handle the display and overlay carefully to avoid scratching or cracking; use correct fasteners and gaskets if present

Oven not heating or broil element staying on constantly? The relay control board regulates temperature by receiving signals from the main control board.

Wire harness for electric wall ovens. Connects electrical components within the oven cavity. Replace if wires are frayed, damaged, or connectors are broken.

Replacement instruction sheet for your wall oven. Includes operating guidelines and care information. Ideal if your original manual is lost or damaged.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.
