Parts for Kenmore 790.47902602 (79047902602, 790 47902602): Control Panel Parts

This wiring label is a self-adhesive diagram that identifies wire colors, terminal connections and circuit routing to help technicians and owners correctly reference electrical wiring during diagnosis or repair. It protects against miswiring and simplifies troubleshooting. What it does:

• Shows wire color codes, connector locations and hookup paths for the appliance's electrical components
• Helps prevent incorrect connections during service and reduces diagnostic time
• Makes it easier to confirm proper wiring after component replacement
• Useful when original markings have worn, been removed, or become hard to read

• Disconnect power to the appliance before inspecting or replacing the label
• Clean and dry the application surface; press label firmly to ensure full adhesion
• Place where it is visible and protected from heat, moisture, and abrasion

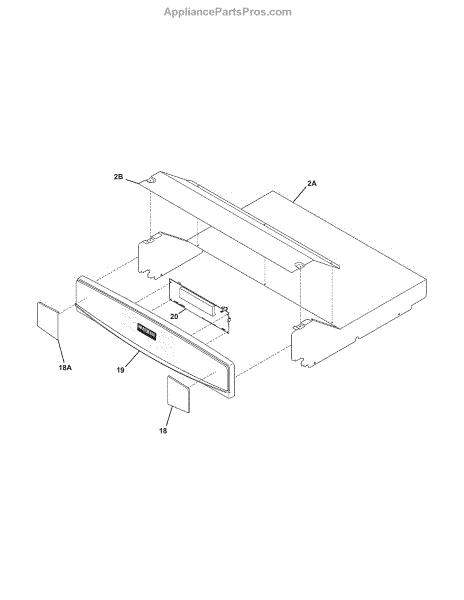

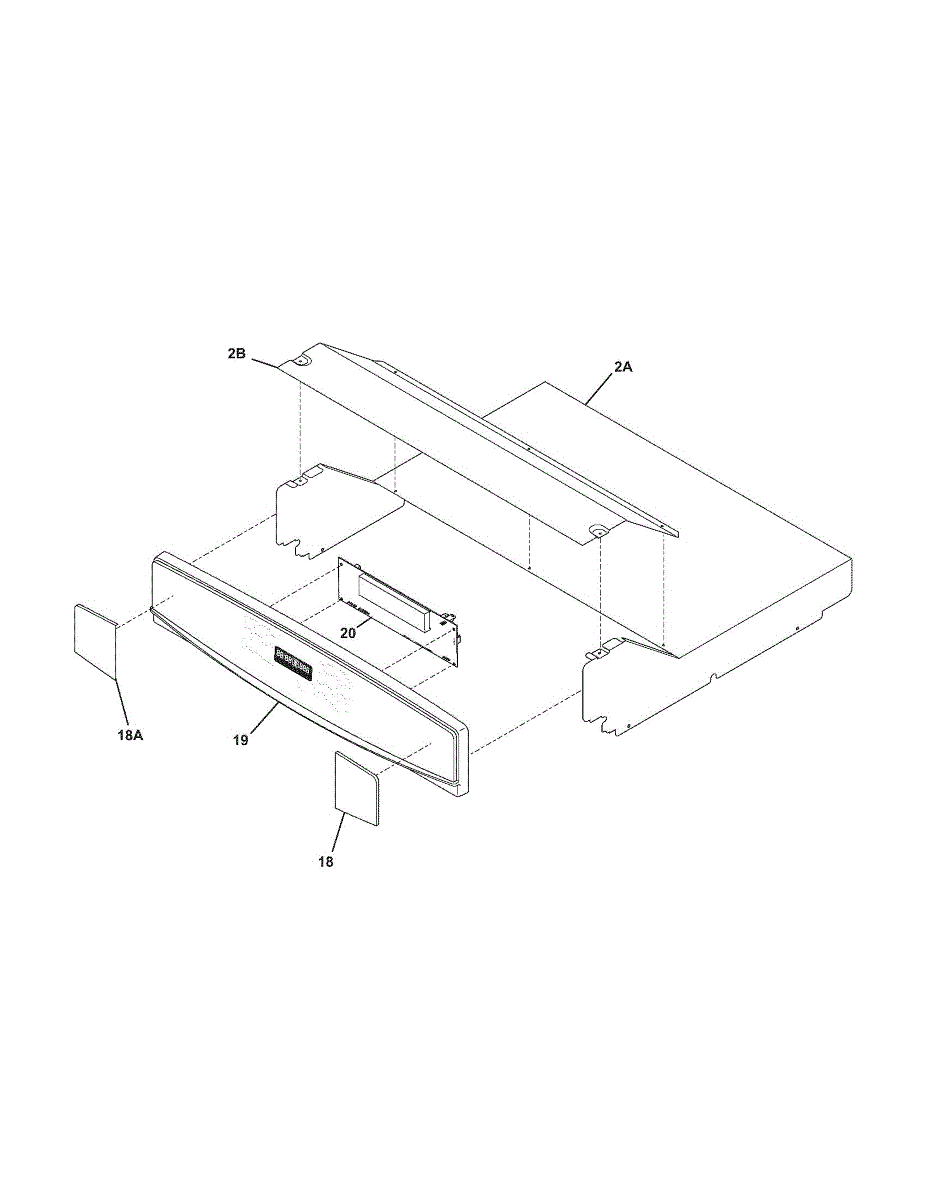

This repair parts list provides a clear parts diagram and reference to help identify individual components for ordering and repair. Use it to verify part locations and numbers before purchasing replacements. What it does:

• Shows an exploded parts diagram to identify components and their relative locations
• Maps parts to reference numbers used on parts lists and ordering pages
• Helps identify which component needs replacement when diagnosing visible damage or missing pieces
• Useful for technicians and DIYers to cross-check fit and mounting before ordering

• Informational only; not a functional or electrical component
• Keep dry and store with appliance documentation to reference during repairs
• Compare reference numbers on this list with product listings to ensure correct part selection

Wire harness for electric wall ovens. Connects electrical components within the oven cavity. Replace if wires are frayed, damaged, or connectors are broken.

Replacement instruction sheet for your wall oven. Includes operating guidelines and care information. Ideal if your original manual is lost or damaged.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

Oven not heating properly or showing temperature errors? The relay control board sends signals to regulate heating elements. Moderate DIY repair.
