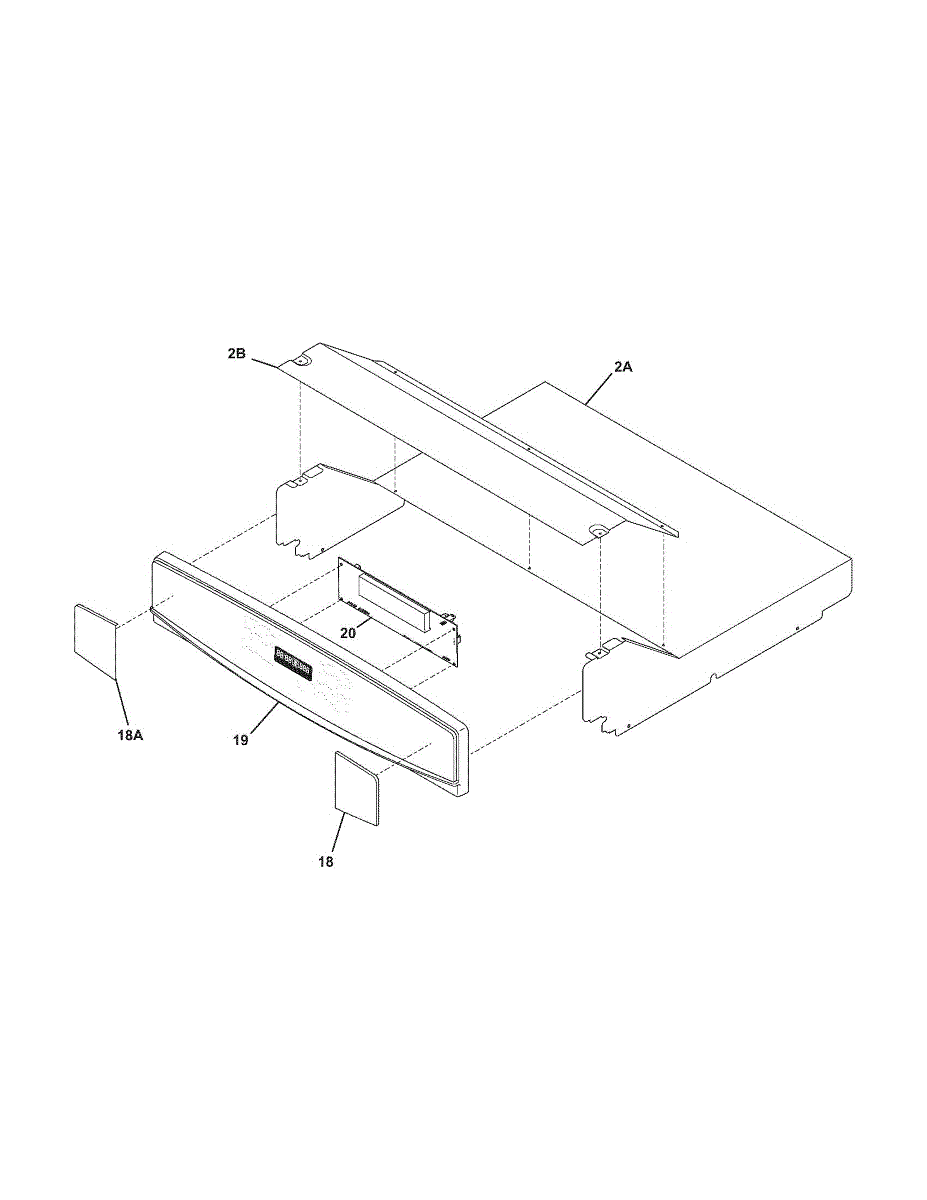

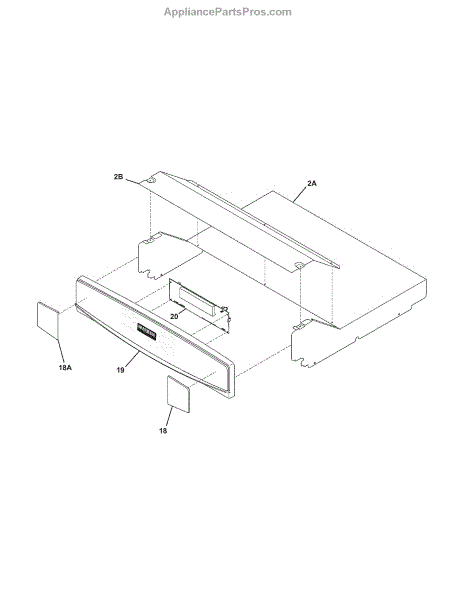

Parts for Kenmore 790.47913601 (79047913601, 790 47913601): Control Panel Parts

This control board is intended for use with ranges, ovens, and stoves. It's located on the top back area of the appliance, where users can press buttons and view temperature or time information. It's composed of a circuit board with a small display on top. The control board is used to ensure the appliance operates correctly. It controls the time and temperature of the oven and displays information for the user.If the control board is not working correctly, it may no longer show information on the display. It can also cause the oven to stop working, run at the wrong temperature, or otherwise create issues with heating. Before replacing the control board, unplug the oven from the wall. Work gloves are useful to protect the hands during the replacement process. Remove the mounting brackets on the side of the door to access the control board. Pull it out and note where wires and components are located. Remove the part and install the wires and components to the new board before installing it.This control board is typically used on ranges, stoves, and ovens made by Kenmore. It's sold as a single genuine OEM replacement part that is directly sourced from the manufacturer.

This wiring label is a self-adhesive diagram that identifies wire colors, terminal connections and circuit routing to help technicians and owners correctly reference electrical wiring during diagnosis or repair. It protects against miswiring and simplifies troubleshooting. What it does:

• Shows wire color codes, connector locations and hookup paths for the appliance's electrical components
• Helps prevent incorrect connections during service and reduces diagnostic time
• Makes it easier to confirm proper wiring after component replacement
• Useful when original markings have worn, been removed, or become hard to read

• Disconnect power to the appliance before inspecting or replacing the label
• Clean and dry the application surface; press label firmly to ensure full adhesion
• Place where it is visible and protected from heat, moisture, and abrasion

This repair parts list is a service diagram sheet that shows the appliance's component layout and part numbers to help identify replacement parts and speed ordering and repairs. It's a reference-only document for service and parts lookup. What it does:

• Shows exploded views and labeled component numbers to identify specific parts
• Lists OEM part numbers used for ordering the correct replacements
• Helps technicians and owners confirm exact part location and orientation
• Useful for planning repairs and communicating needed parts to suppliers

• One printed repair parts list / parts diagram sheet

• This is a reference document, not a replacement mechanical or electrical component
• Keep with the appliance's service records or owner manual for future reference
• Use alongside the model's service manual or schematic for installation guidance

Wire harness for electric wall ovens. Connects electrical components within the oven cavity. Replace if wires are frayed, damaged, or connectors are broken.

Replacement instruction sheet for your wall oven. Includes operating guidelines and care information. Ideal if your original manual is lost or damaged.

This stainless steel cleaner restores and protects stainless surfaces, removing fingerprints, smudges and light soils to improve appearance and make routine cleaning easier. Safe for finished stainless when used as directed. What it does:

• Cleans away fingerprints, grease, and light residue from stainless surfaces
• Restores a streak-free shine and improves overall appearance
• Helps reduce visible smudges for easier routine maintenance
• Leaves a light protective finish that helps resist fingerprints between applications

• Read and follow the product label before use; test on an inconspicuous area first
• Apply to a soft cloth and wipe with the grain of the stainless; avoid abrasive pads
• Do not use on hot surfaces, painted finishes, or unsealed metals unless manufacturer approves
• Keep out of reach of children and avoid contact with eyes; if contact occurs, rinse thoroughly

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation
