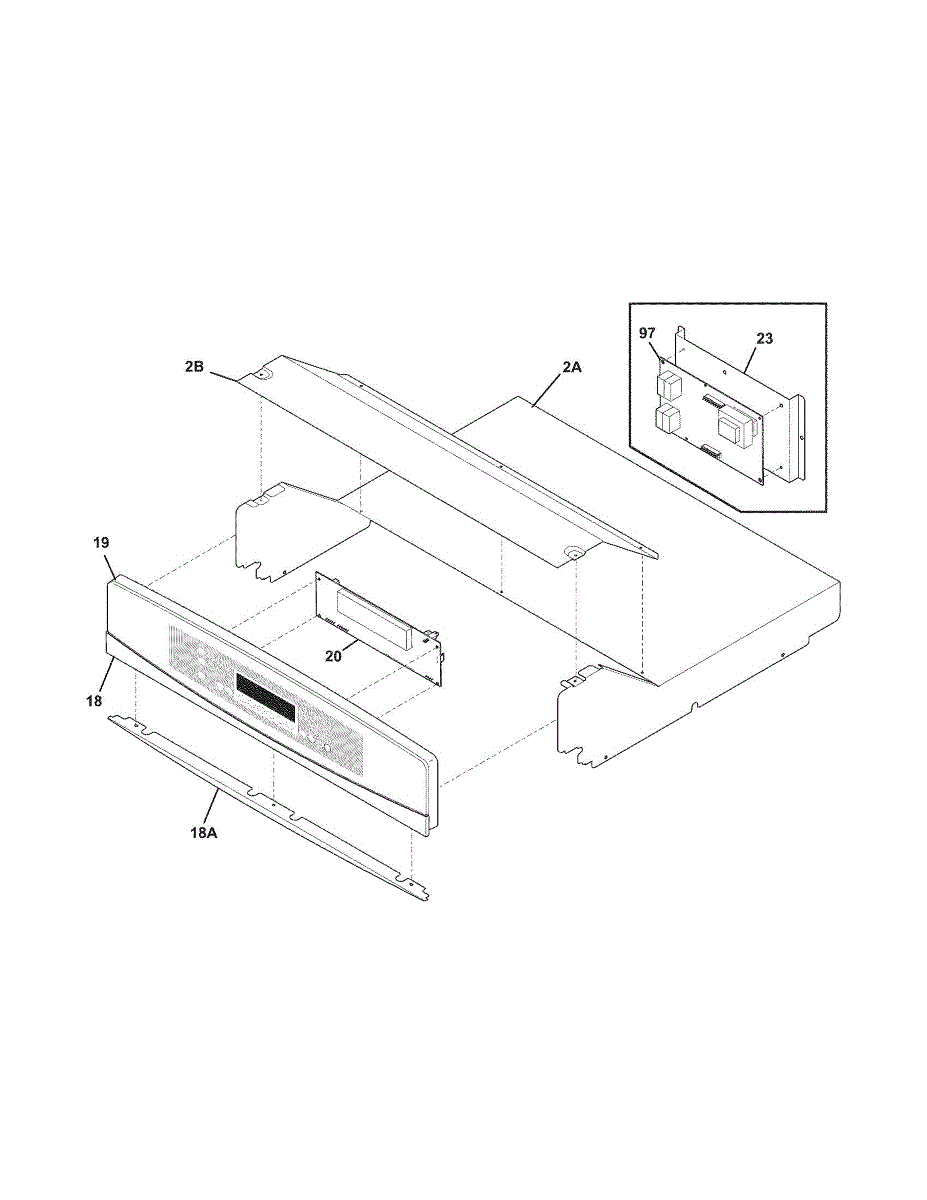

Parts for Kenmore 790.48122800 (79048122800, 790 48122800): Control Panel Parts

This electronic component controls oven functions including temperature, timing, and display, typically located behind the front control panel. Replace if the oven won't heat, displays error codes, or if buttons don't respond properly.

Oven not heating properly or showing temperature errors? The relay control board sends signals to regulate heating elements. Moderate DIY repair.

This is a replacement wiring label that restores the appliance's internal wiring diagram and identification markings so technicians can quickly read wiring routes and connector IDs during diagnosis or repair. What it does:

• Shows the appliance's wiring diagram, wire colors, and connector/terminal identifications
• Helps technicians locate and verify electrical connections during troubleshooting
• Prevents confusion when replacing harnesses or components after repairs
• Useful when the original label is missing, torn, or illegible

• Clean and dry the mounting surface before applying the adhesive label for best adhesion
• Align the label carefully; adhesive backing is permanent once placed
• Always unplug the appliance or disconnect power before servicing electrical components
• This label is informational; follow service manual and safety procedures when working on electrical systems

This printed repair parts list provides exploded diagrams and part callouts to help identify replacement parts and ordering information. Keep it with the appliance for quick reference during service or parts lookup. What it does:

• Shows exploded views and numbered part callouts for the appliance
• Identifies part numbers and locations to simplify parts selection
• Serves as a visual reference during diagnosis and repair

• This item is a reference document, not a replaceable mechanical component
• Store with the appliance manual or service records for future use
• Handle pages carefully; replace if damaged to ensure legible part callouts
• For actual replacement parts, order the specific part numbers shown on this list

Replacement broiler pan for your range or wall oven. Installs in the oven cavity to catch drippings during broiling. Needed when original is warped or damaged.

Wire harness for electric wall ovens. Connects electrical components within the oven cavity. Replace if wires are frayed, damaged, or connectors are broken.

Replacement instruction sheet for your wall oven. Includes operating guidelines and care information. Ideal if your original manual is lost or damaged.

Mounting screw for electric range, oven, or wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Two-piece broiler pan set for your range or wall oven. Includes vented insert and drip tray. Replace cracked, warped, or missing broiler pans.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
