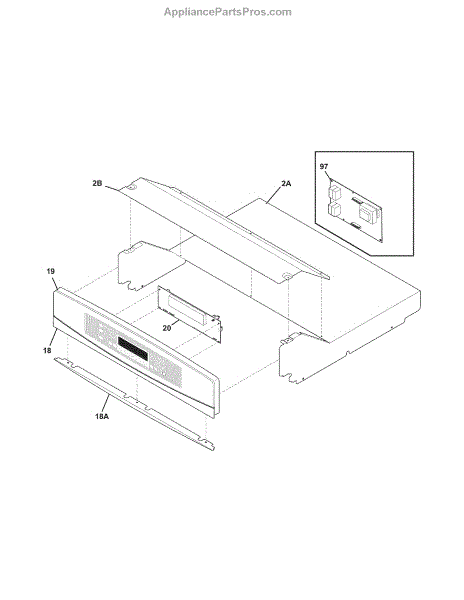

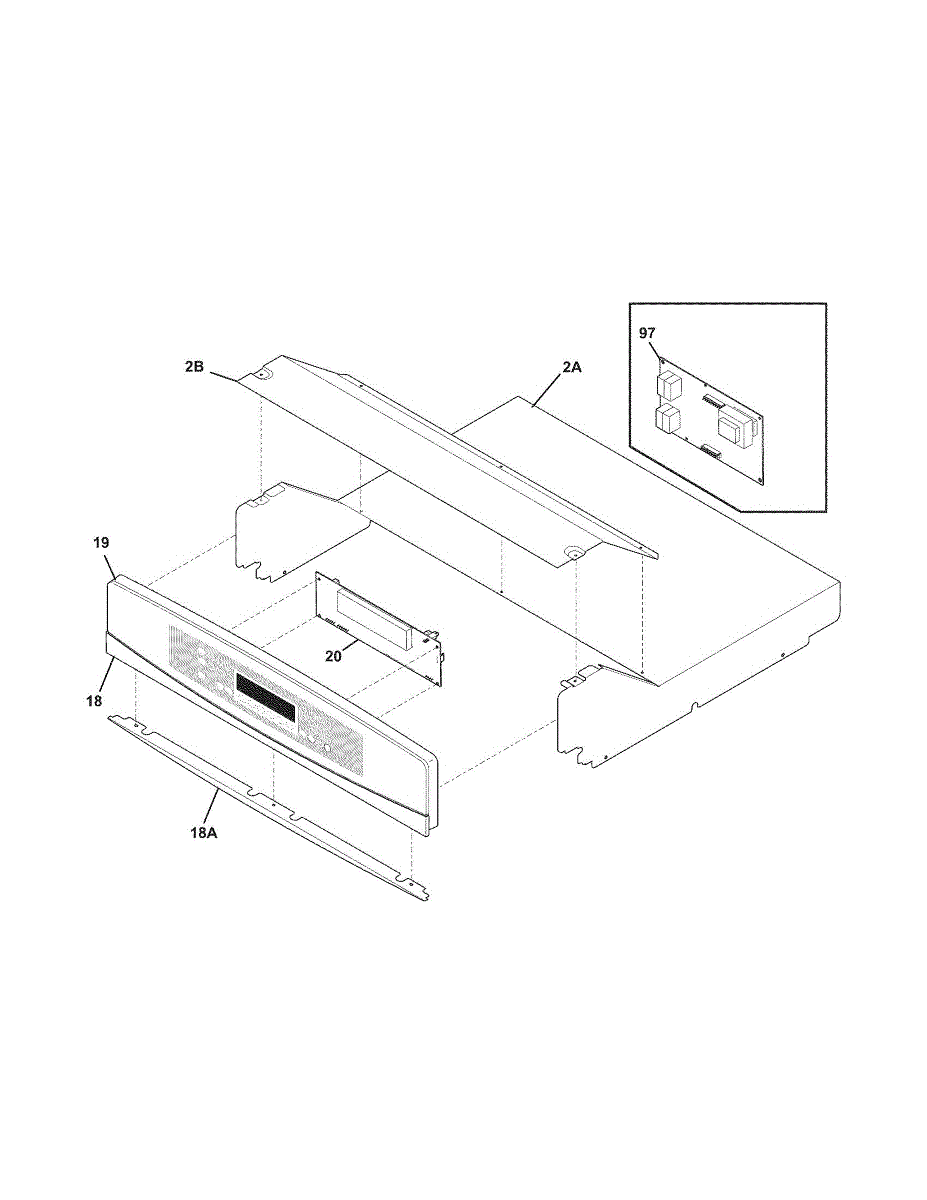

Parts for Kenmore 790.48122801 (79048122801, 790 48122801): Control Panel Parts

Oven not heating properly or showing temperature errors? The relay control board sends signals to regulate heating elements. Moderate DIY repair.

This is a replacement wiring label that restores the appliance's internal wiring diagram and identification markings so technicians can quickly read wiring routes and connector IDs during diagnosis or repair. What it does:

• Shows the appliance's wiring diagram, wire colors, and connector/terminal identifications
• Helps technicians locate and verify electrical connections during troubleshooting
• Prevents confusion when replacing harnesses or components after repairs
• Useful when the original label is missing, torn, or illegible

• Clean and dry the mounting surface before applying the adhesive label for best adhesion
• Align the label carefully; adhesive backing is permanent once placed
• Always unplug the appliance or disconnect power before servicing electrical components
• This label is informational; follow service manual and safety procedures when working on electrical systems

Wire harness for electric wall ovens. Connects electrical components within the oven cavity. Replace if wires are frayed, damaged, or connectors are broken.

Replacement instruction sheet for your wall oven. Includes operating guidelines and care information. Ideal if your original manual is lost or damaged.

Mounting screw for electric range, oven, or wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
