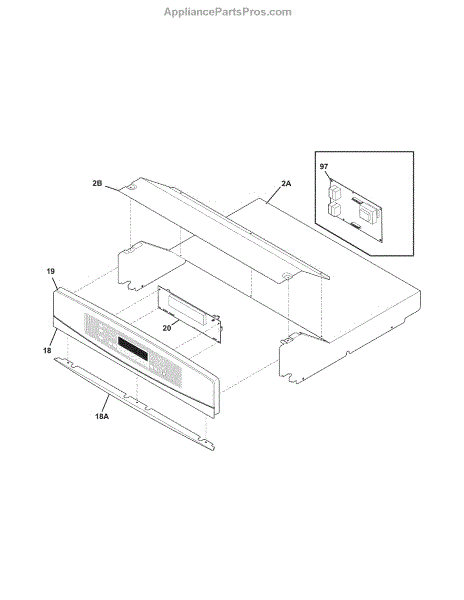

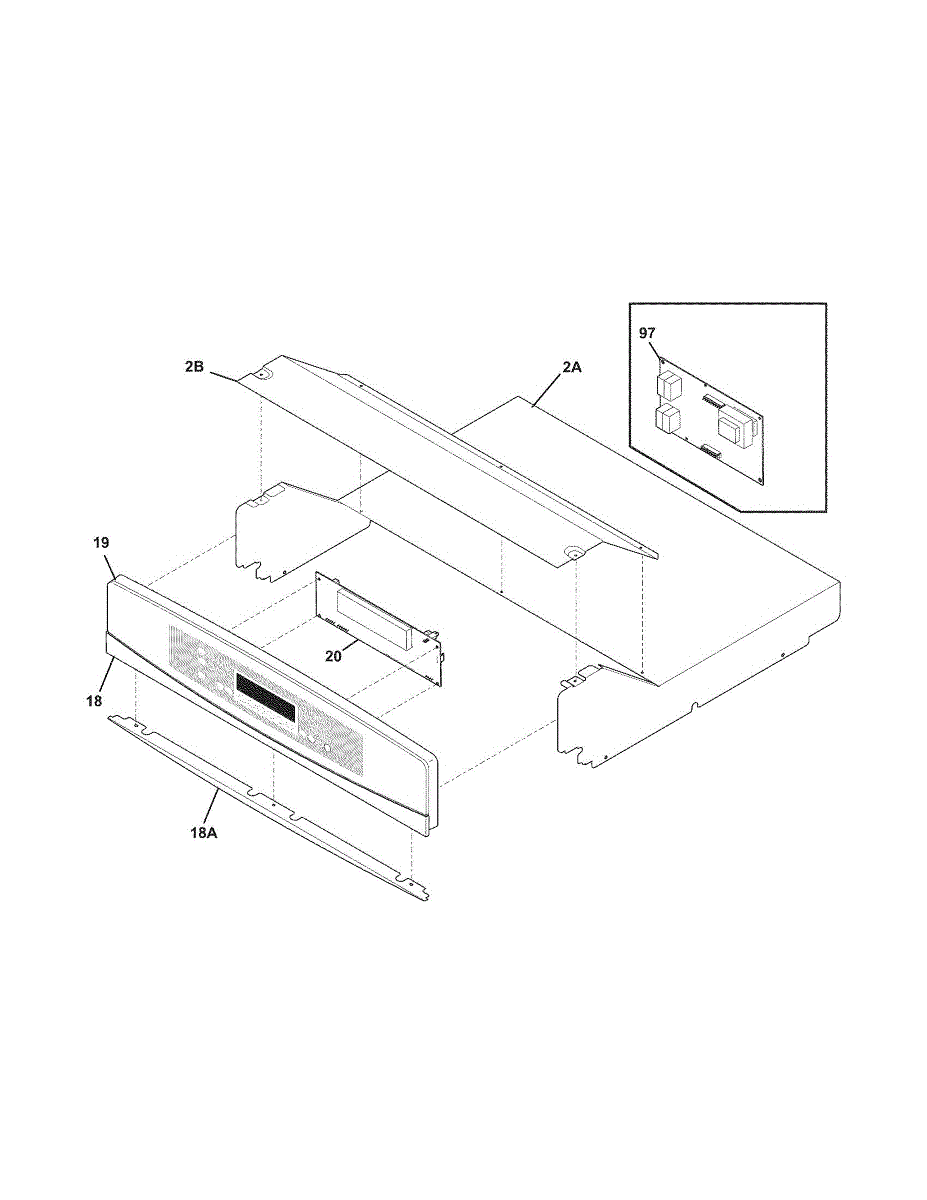

Parts for Kenmore 790.48132801 (79048132801, 790 48132801): Control Panel Parts

Oven not heating properly or showing temperature errors? The relay control board sends signals to regulate heating elements. Moderate DIY repair.

This is a replacement wiring label that restores the appliance's internal wiring diagram and identification markings so technicians can quickly read wiring routes and connector IDs during diagnosis or repair. What it does:

• Shows the appliance's wiring diagram, wire colors, and connector/terminal identifications
• Helps technicians locate and verify electrical connections during troubleshooting
• Prevents confusion when replacing harnesses or components after repairs
• Useful when the original label is missing, torn, or illegible

• Clean and dry the mounting surface before applying the adhesive label for best adhesion
• Align the label carefully; adhesive backing is permanent once placed
• Always unplug the appliance or disconnect power before servicing electrical components
• This label is informational; follow service manual and safety procedures when working on electrical systems

Wire harness for electric wall ovens. Connects electrical components within the oven cavity. Replace if wires are frayed, damaged, or connectors are broken.

Replacement instruction sheet for your wall oven. Includes operating guidelines and care information. Ideal if your original manual is lost or damaged.

Mounting screw for electric range, oven, or wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation
