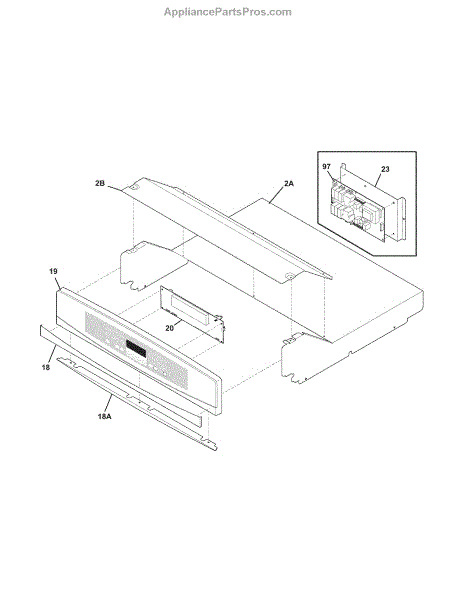

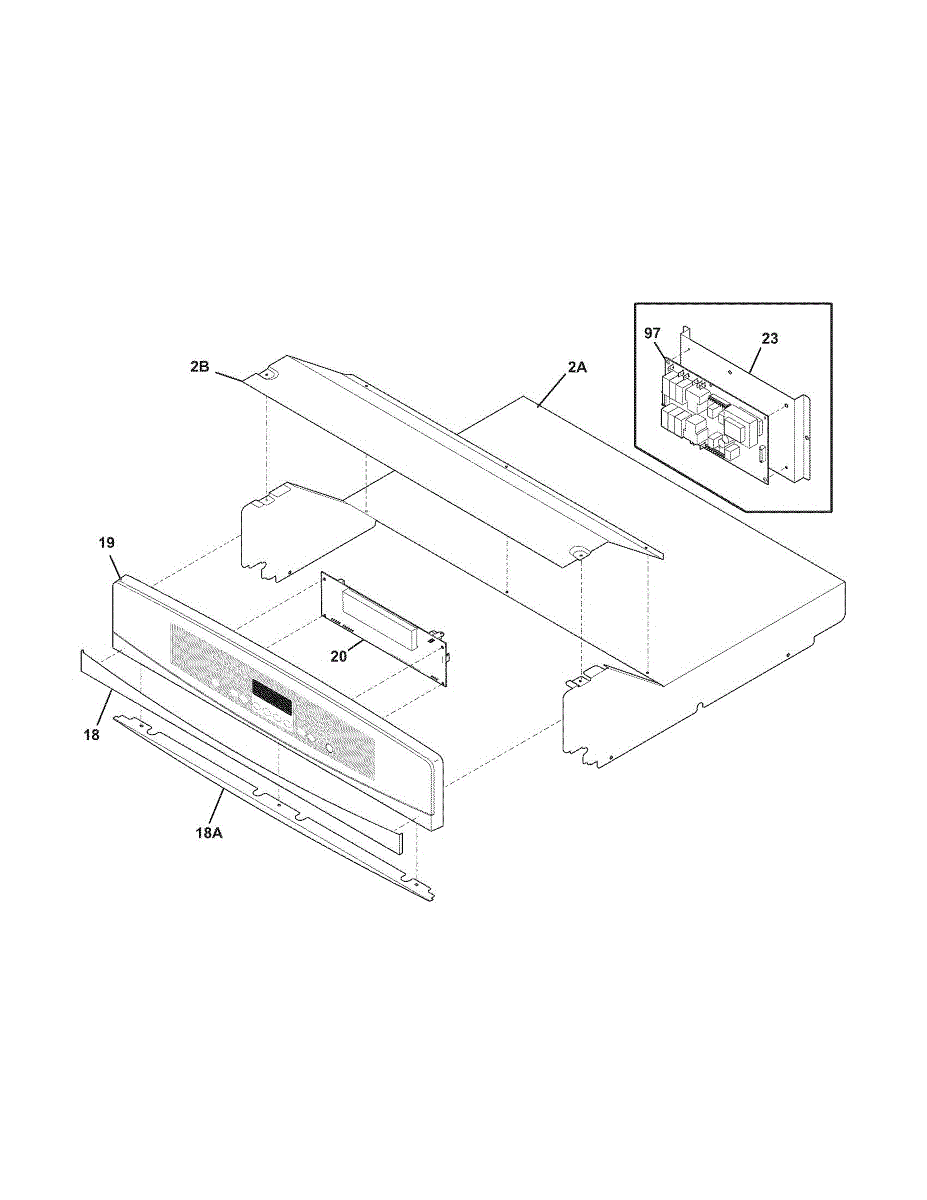

Parts for Kenmore 790.48143800 (79048143800, 790 48143800): Control Panel Parts

Replacement trim piece for wall oven exterior. Covers gaps between cabinet and oven body. Needed when original trim is cracked, damaged, or missing.

This electronic control board manages all oven functions including temperature, timing, and cooking modes. Replace it if the oven won't heat, displays error codes, or controls become unresponsive.

Fix unresponsive controls or erratic oven behavior. This electronic control board manages temperature and timing functions in your wall oven. Restore normal operation.

This printed repair parts list is a service reference that shows part locations and OEM part numbers to help identify the exact replacement components you need. Use it to order or perform repairs. What it does:

• Provides a labeled parts breakdown and diagram to locate components
• Lists OEM part numbers and quantities for accurate ordering
• Helps identify symptoms tied to specific components (e.g., broken trim, failed motor)
• Streamlines troubleshooting by showing assembly relationships
• Useful for technicians and DIYers to replacement parts

• This item is a reference document, not a replaceable mechanical part.
• Keep the sheet dry and store with appliance paperwork for future service.
• When using the parts list to perform work, always disconnect power to the appliance before servicing.

Replacement broiler pan for your range or wall oven. Installs in the oven cavity to catch drippings during broiling. Needed when original is warped or damaged.

This stainless steel cleaner restores and protects stainless surfaces, removing fingerprints, smudges and light soils to improve appearance and make routine cleaning easier. Safe for finished stainless when used as directed. What it does:

• Cleans away fingerprints, grease, and light residue from stainless surfaces
• Restores a streak-free shine and improves overall appearance
• Helps reduce visible smudges for easier routine maintenance
• Leaves a light protective finish that helps resist fingerprints between applications

• Read and follow the product label before use; test on an inconspicuous area first
• Apply to a soft cloth and wipe with the grain of the stainless; avoid abrasive pads
• Do not use on hot surfaces, painted finishes, or unsealed metals unless manufacturer approves
• Keep out of reach of children and avoid contact with eyes; if contact occurs, rinse thoroughly

Replacement instruction sheet for your wall oven. Includes operating guidelines and care information. Ideal if your original manual is lost or damaged.

Mounting screw for electric range, oven, or wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged.

Wire harness for electric wall ovens. Connects electrical components within the oven cavity. Replace if wires are frayed, damaged, or connectors are broken.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

Two-piece broiler pan set for your range or wall oven. Includes vented insert and drip tray. Replace cracked, warped, or missing broiler pans.
