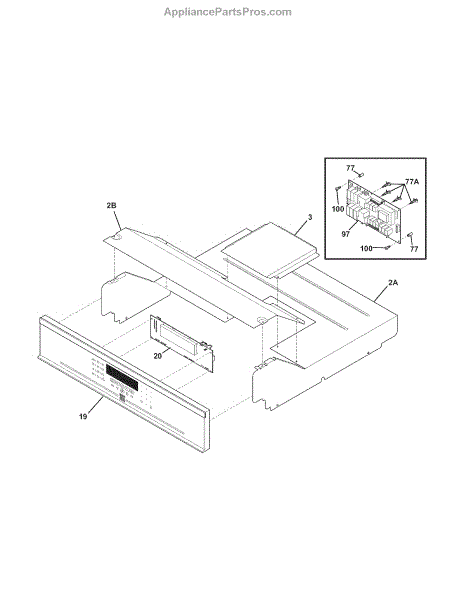

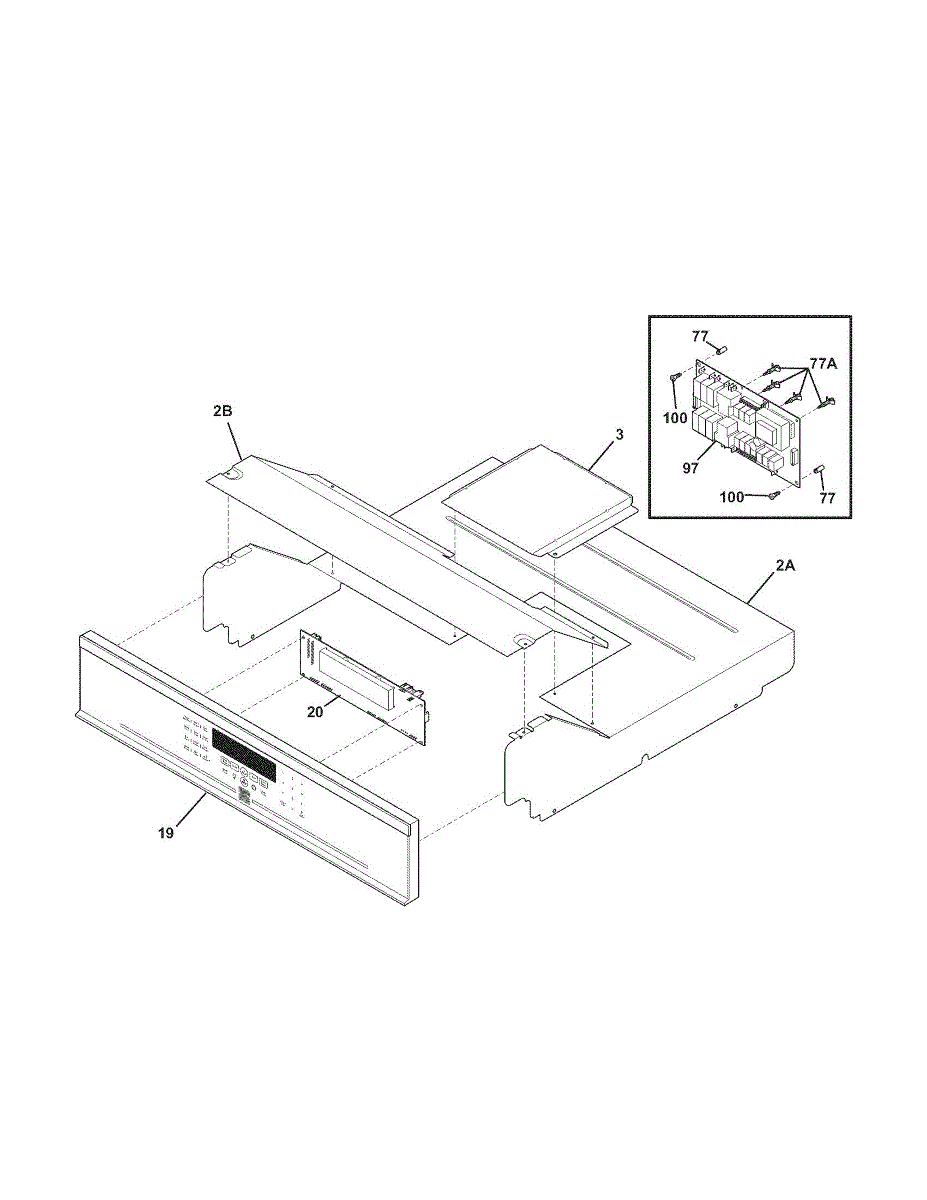

Parts for Kenmore 790.48193001 (79048193001, 790 48193001): Control Panel Parts

Spacer for ranges and ovens. Maintains proper spacing between components. Replace if worn, cracked, or missing to ensure correct alignment and fit.

Oven not heating, display blank, or buttons unresponsive? This electronic control board regulates oven functions and restores reliable operation.

This repair parts list is a service reference sheet that helps identify replacement parts and part numbers for service or ordering. Keep it with your service paperwork to speed diagnosis and parts selection. What it does:

• Lists part names and part numbers used in the appliance for easier identification.
• Helps locate the correct replacement parts when troubleshooting or ordering.
• Reduces guesswork by matching descriptions to service components.
• Useful to technicians and DIYers as a quick reference during repairs.

• One repair parts list/service sheet as shown.

• Not a functional appliance component; no installation needed.
• Store with the appliance manual or service records for future reference.
• Handle paper document carefully to avoid tears or smudging.
• Use the listed part numbers when ordering.

Wire harness for electric wall ovens. Connects electrical components within the oven cavity. Replace if wires are frayed, damaged, or connectors are broken.

Mounting screw for electric range, oven, or wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation
