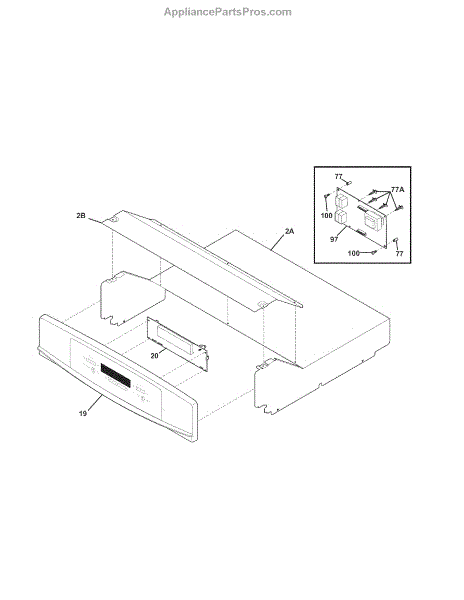

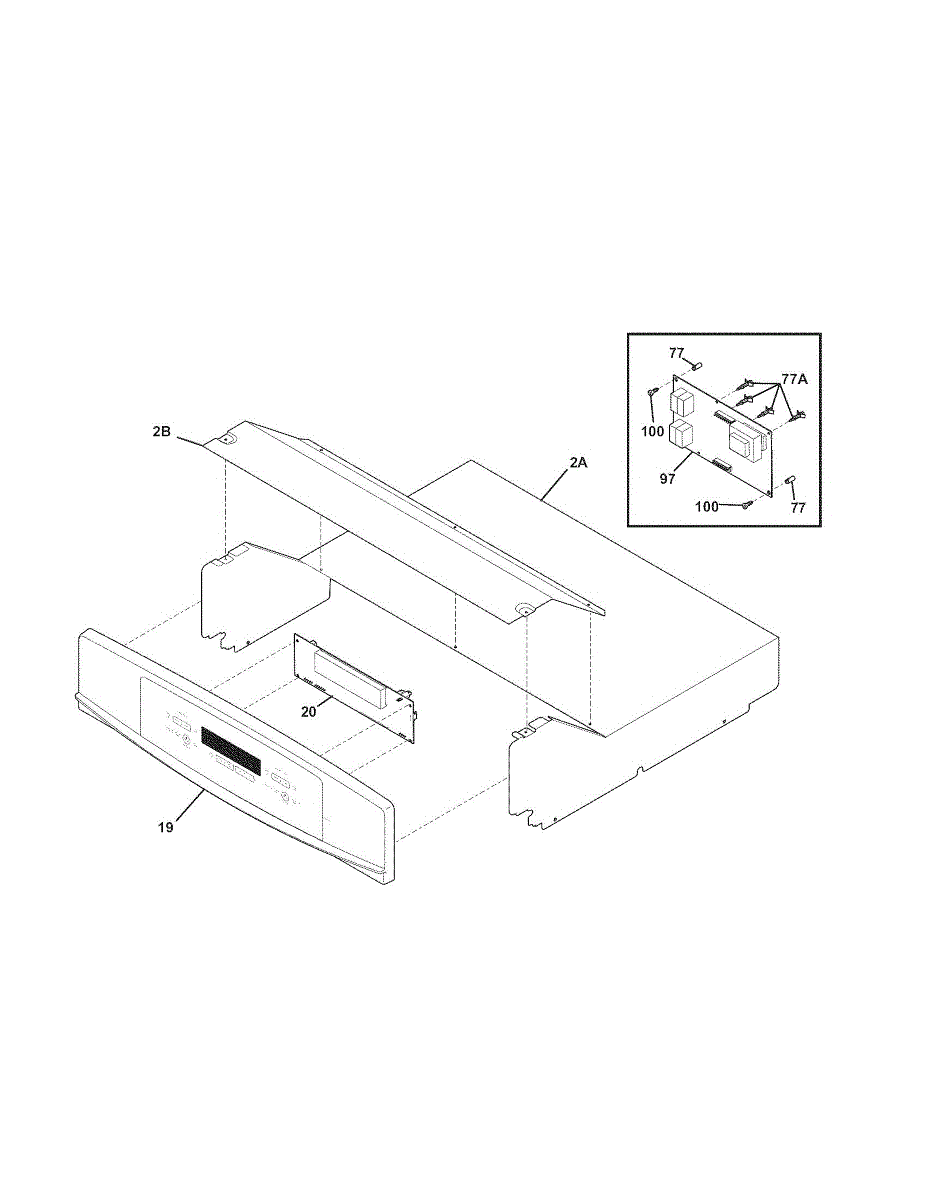

Parts for Kenmore 790.48779900 (79048779900, 790 48779900): Control Panel Parts

Spacer for ranges and ovens. Maintains proper spacing between components. Replace if worn, cracked, or missing to ensure correct alignment and fit.

Replace a cracked or missing power board spacer in your range. This insulating bushing mounts between the control board and chassis for proper spacing.

Oven not heating or broil element staying on constantly? The relay control board regulates temperature by receiving signals from the main control board.

This repair parts list is the factory parts diagram and number reference used to identify replacement components for service and repairs. Keep it for accurate part identification and ordering. What it does:

• Shows exploded diagrams and part numbers for the appliance
• Helps technicians and owners the correct replacement part
• Speeds up ordering by matching visual diagrams to part numbers
• Useful as a reference during troubleshooting and repair planning

• No tools required; store with appliance documentation for future service
• Use the part numbers on this list to replacements before ordering
• Request a replacement parts list from your dealer or the manufacturer
• Dispose of old documents per local recycling guidelines

Wire harness for electric wall ovens. Connects electrical components within the oven cavity. Replace if wires are frayed, damaged, or connectors are broken.

Mounting screw for electric range, oven, or wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation
