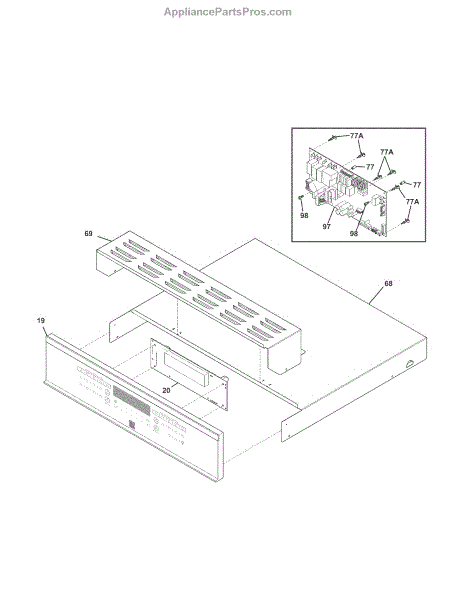

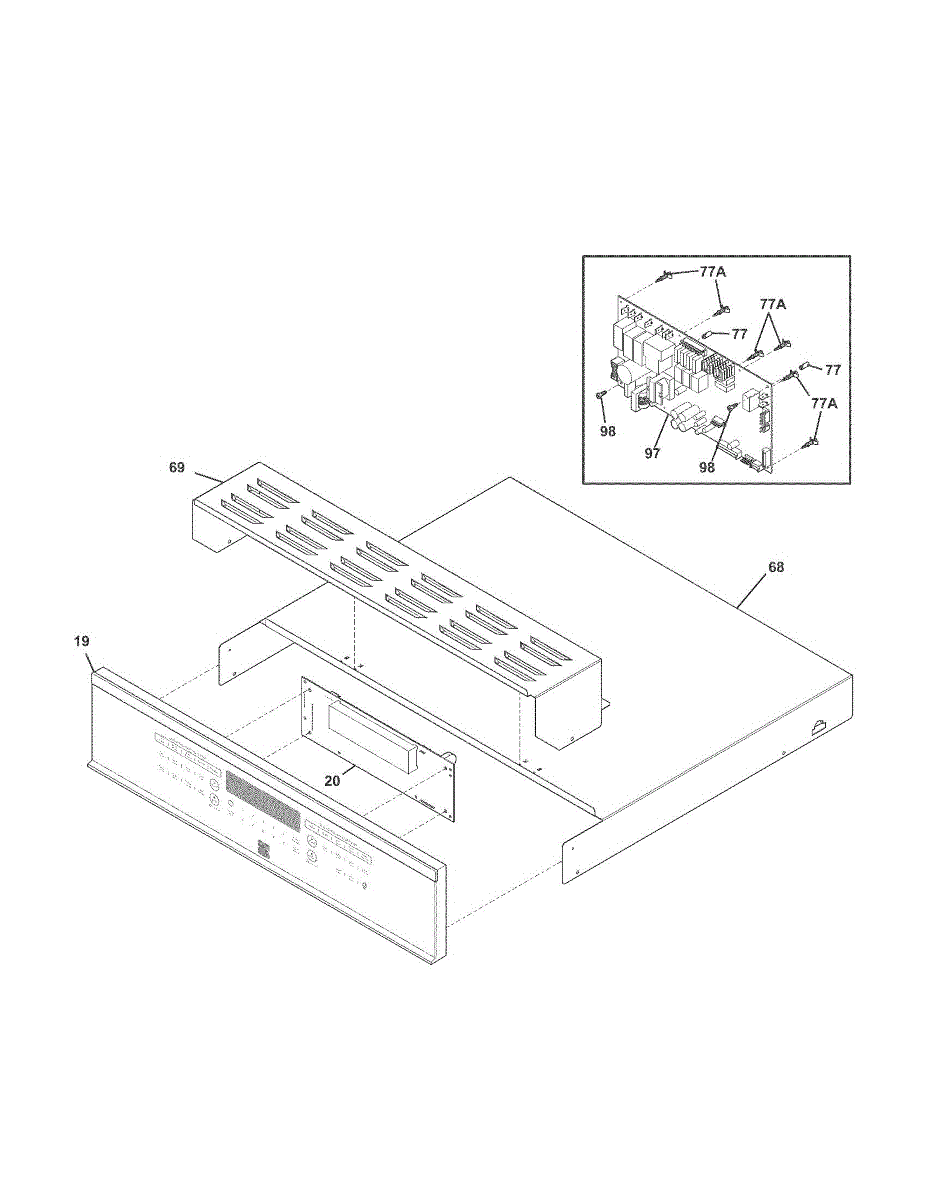

Parts for Kenmore 790.48809100 (79048809100, 790 48809100): Control Panel Parts

Spacer for ranges and ovens. Maintains proper spacing between components. Replace if worn, cracked, or missing to ensure correct alignment and fit.

Wire harness for wall ovens. Connects electrical components inside the oven cavity. Replace if wires are frayed, connectors are damaged, or harness is broken.

This is the instruction sheet that provides basic setup, operation and care information so you can use your appliance safely and correctly. Keep it with the appliance for reference and simple troubleshooting steps. What it does:

• Explains basic operating controls, cycles and settings in plain language
• Lists routine cleaning and maintenance recommendations to help performance
• Calls out common user-level troubleshooting steps and safety warnings
• Helps ensure correct hookup and initial setup guidance where applicable

• One instruction sheet/manual

• No tools required; store the sheet near the appliance or insert into the owner's packet
• Follow all safety warnings and disconnect power before servicing the appliance

This printed repair parts list is a reference sheet that shows the appliance's parts diagram and part numbers to help identify components for repair or ordering. It's a simple visual aid for service and parts selection. What it does:

• Shows the exploded diagram and OEM part numbers for quick identification
• Helps you find the correct replacement parts and their location
• Useful when planning a repair or communicating needed parts to a supplier
• Reduces guesswork during troubleshooting by matching physical parts to diagrams

• One printed repair parts list

• This is a reference document only; it is not a repair or replacement part for appliance operation
• Store dry and flat to avoid creases or damage to printed information
• Use alongside the appliance's service manual or OEM diagrams for accurate part ordering

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation
