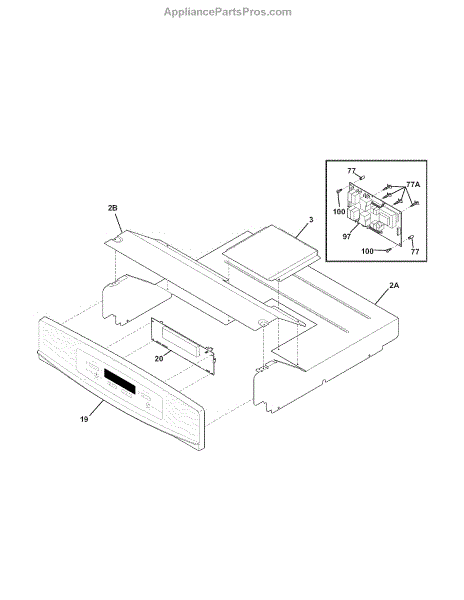

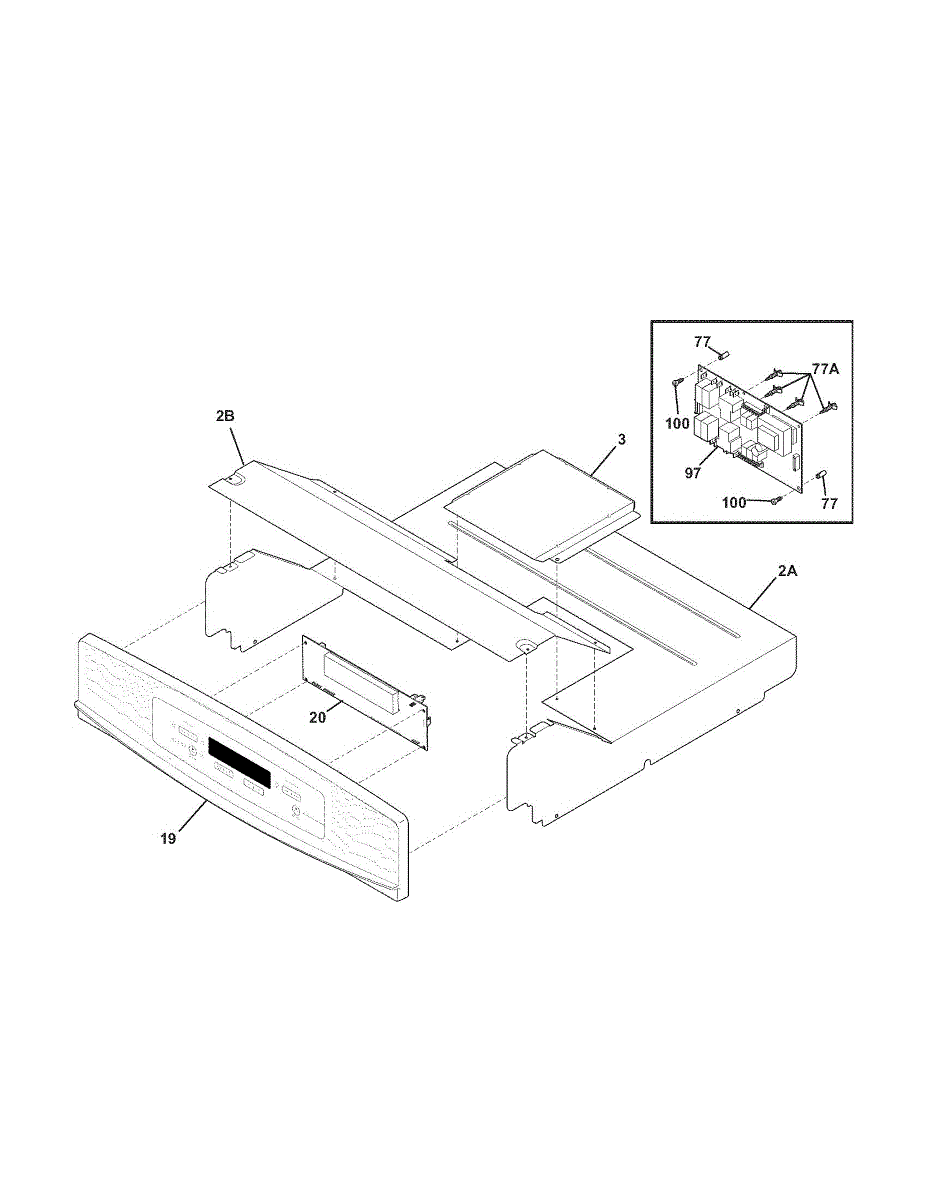

Parts for Kenmore 790.48873901 (79048873901, 790 48873901): Control Panel Parts

Spacer for ranges and ovens. Maintains proper spacing between components. Replace if worn, cracked, or missing to ensure correct alignment and fit.

Fix an oven that won't heat, respond to settings, or display properly with a main electronic control board replacement. Manages all oven functions.

This repair parts list provides the OEM parts diagram and list used to identify replacement components and part numbers. It helps technicians and DIYers locate parts on an appliance for accurate ordering and repair planning. What it does:

• Shows exploded diagrams and numbered parts to match components to part numbers
• Helps identify worn or broken components by visual reference
• Makes ordering the correct replacement parts faster and reduces guesswork
• Useful for planning repairs and required parts before disassembly

• Read the parts list carefully to match diagram numbers with exact part numbers before ordering
• This is a reference document, not a replacement part or repair kit
• Follow all safety precautions and disconnect power before servicing the appliance

Wire harness for electric wall ovens. Connects electrical components within the oven cavity. Replace if wires are frayed, damaged, or connectors are broken.

Mounting screw for electric range, oven, or wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation
