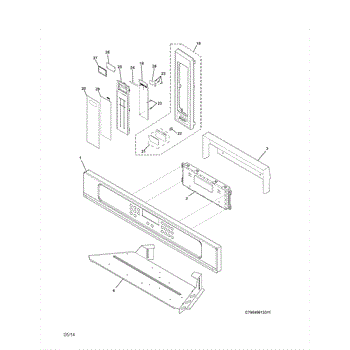

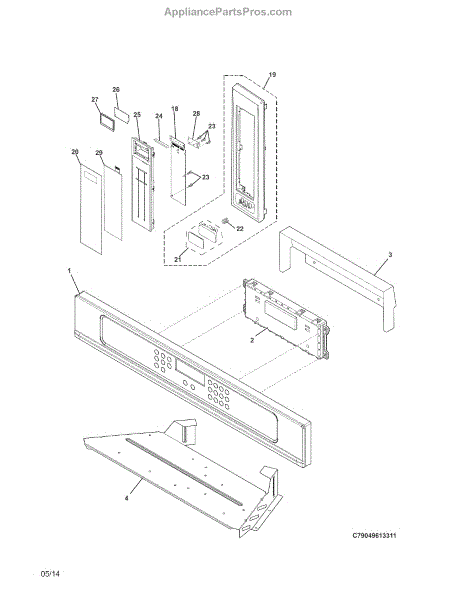

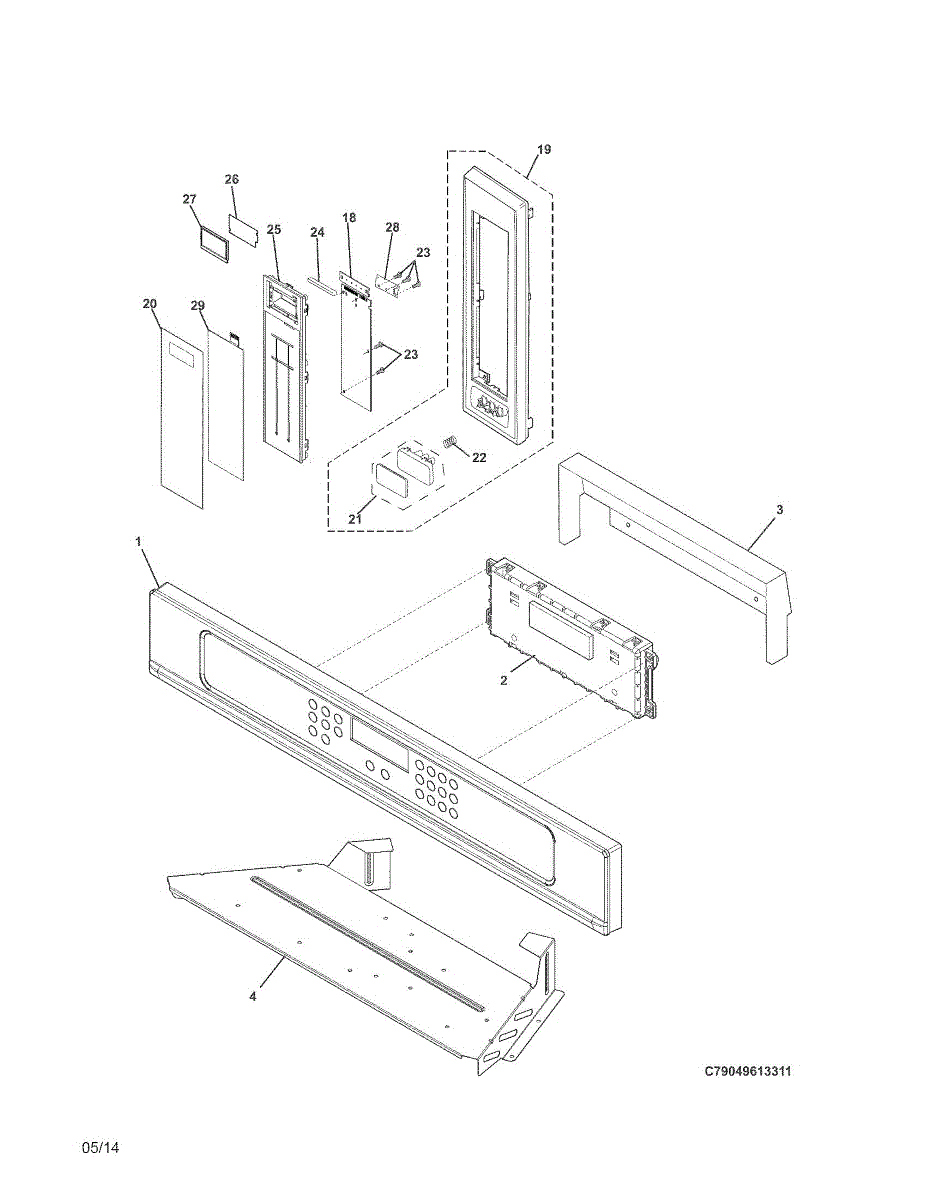

Parts for Kenmore 790.49619312 (79049619312, 790 49619312): Control Panel Parts

This electronic controller replaces the appliance's main control board to restore reliable operation of timed cycles, user commands and electronic functions. It provides a direct replacement for a failed or unresponsive control module. What it does:

• Receives input from buttons/sensors and sends commands to the appliance's components
• Manages cycle timing, modes and electronic feature control
• Common symptoms indicating replacement: unresponsive controls, no display or error codes, or functions that won't start
• Helps stop intermittent or incorrect operation caused by a faulty control board

• Disconnect power to the appliance before servicing to prevent shock or damage
• Handle the board by its edges and avoid static discharge; use an anti-static wrist strap if available
• Verify connectors are fully seated and routed clear of moving parts before restoring power

This electronic control board manages the oven/range user interface and core control functions so your appliance responds correctly to settings, timers and bake/broil commands. It replaces a failed or unresponsive control module. What it does:

• Interprets user inputs and runs oven cooking cycles, timers and clocks
• Sends signals to heating elements, relays and safety controls to regulate temperature
• Powers and updates the display and touchpad/controls
• Common symptom fixes: blank or error display, unresponsive keypad, oven not heating or not following selected cycles

• Disconnect all power at the breaker before starting work; this part is live-voltage sensitive
• Handle the board by the edges and avoid static discharge; wear an anti-static wrist strap if available
• Confirm the board PN and appliance model before ordering; mounting screws and wire harnesses must match

This door frame restores the outer trim that secures the refrigerator door assembly and improves fit-and-finish. It replaces a cracked, warped, or damaged outer frame to restore proper door alignment and appearance. What it does

• Replaces the outer trim that surrounds and supports the door assembly
• Helps maintain proper door alignment and sealing when the original frame is damaged
• Addresses visible cracks, dents, or separation around the door edge
• Prevents further damage to the door shell and mounting points

• One door frame (outer door trim) as shown

• High-level: remove the door from the appliance per manufacturer instructions before replacing the frame when required
• Use care to avoid scratching the door finish; soft surface and proper fastener handling recommended
• Tighten fasteners to manufacturer torque specs if provided; do not overtighten

This control panel overlay restores the front face and control labeling on your range or oven so buttons and settings are visible and the console looks finished. It replaces a cracked, faded, or worn overlay for clearer operation. What it does:

• Replaces the worn or damaged control panel face so labels and touchpoints are readable
• Protects underlying electronics from spills, grease, and daily wear
• Helps restore proper button feel and visual cues for temperature and function settings
• Common symptom: faded graphics, peeling, cracks, or missing button markings

• Designed to adhere to the existing control console; follow OEM alignment during installation
• Use a clean, dry surface and replace any old adhesive per OEM recommendations
• Disconnect power at the breaker before removing the control console to avoid electrical shock

A replacement tension spring used to restore normal movement and positioning for the affected appliance component. Replaces a worn or broken spring to help parts return to their intended position and reduce loose or uneven operation. What it does:

• Provides tension or counter-force for a door, drawer or linkage so the part moves smoothly and returns to position.
• Restores alignment and prevents sagging, slamming, or parts that don't stay in place.
• Reduces noise and uneven movement caused by a stretched or broken spring.
• Useful when a worn spring causes intermittent operation or poor component response.

• Disconnect power and water before servicing. Wear eye protection and gloves — springs can release suddenly.
• Inspect mounting points, clips and anchors; replace any damaged hardware to ensure proper function.
• Use appropriate tools (needle-nose pliers, spring hook) and follow OEM instructions for safe installation.

This is a genuine mounting screw used to secure appliance components and panels for a safe, stable fit. It replaces a lost or damaged fastener to restore proper alignment and reduce rattles or loose trim. What it does:

• Secures panels, trim, brackets or small assemblies to the appliance frame
• Prevents vibration-related noise and loose or sagging parts
• Restores proper fit after repair or disassembly
• Useful when the original screw is stripped, missing, or broken

• One mounting screw

• Use the correct screwdriver or bit to avoid stripping the head
• Power off and unplug the appliance before servicing when applicable
• Keep removed hardware organized to ensure correct reassembly
• If threads are damaged, replace with the specified OEM screw only

This LED light sheet is the refrigerator interior light assembly that provides even, long-lasting illumination so you can see inside the fresh food and freezer compartments. It replaces a failed or dim/fractured LED panel. What it does:

• Replaces the refrigerator's interior LED panel to restore consistent lighting
• Resolves symptoms such as no light, dim or flickering illumination, or visible damage to the light panel
• Provides a direct-fit LED sheet that mounts behind the interior lens or reflector
• Works with the refrigerator's existing wiring and connector

• Disconnect power to the appliance before beginning work to avoid shock
• Handle the LED sheet by the edges; avoid touching LEDs and circuit traces
• Use basic hand tools to remove the interior light cover and mounting screws; keep track of fasteners

The Switch/Overlay Assembly is an OEM component compatible with select Frigidaire microwave models. It includes both the control panel switches and overlay graphics that operate the unit. This assembly allows for accurate input and operation of cooking times, power levels, and other functions.

Causes of a bad switch/overlay assembly can include normal wear and tear over time. Repeated pressing of buttons can weaken electronic contacts. Steam, spills, or other damage could compromise the assembly's integrity.

Symptoms of a failed switch/overlay assembly include:

• Unresponsive or erratic control panel behavior
• Buttons sticking, sticking, or not working properly
• Inability to set or change cooking functions
• Missing or damaged overlay graphics

This OEM replacement is compatible with Electrolux, Gibson, Kelvinator, and Kenmore brands as well.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
