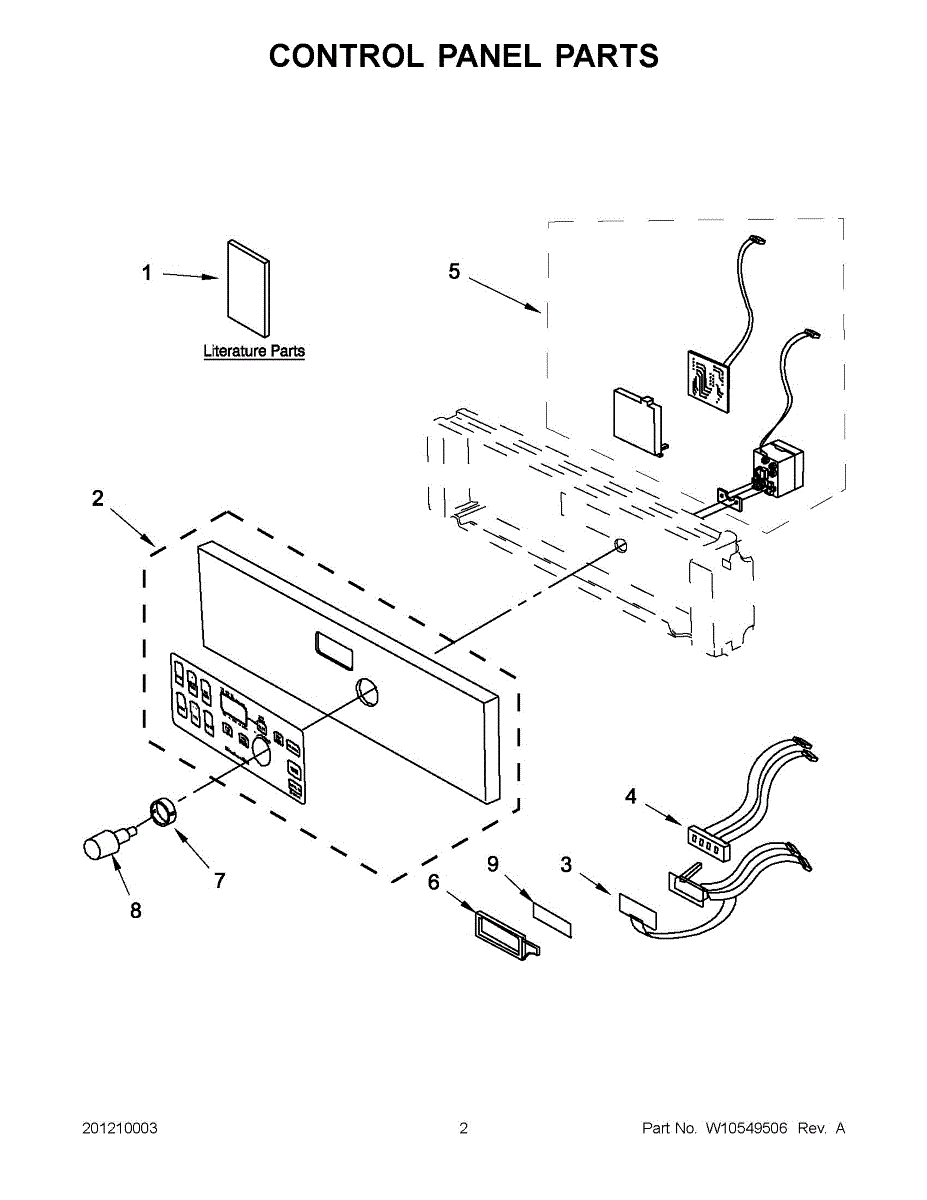

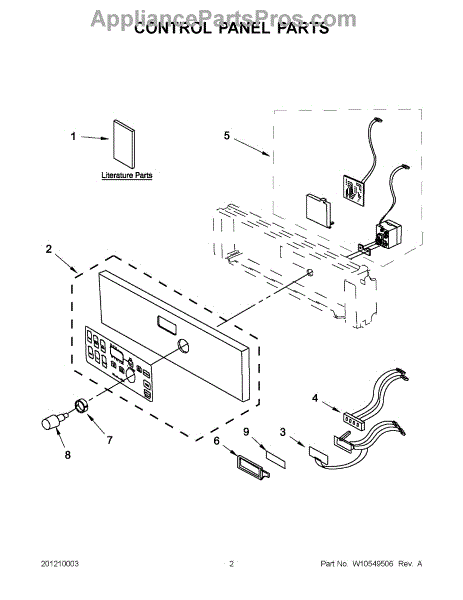

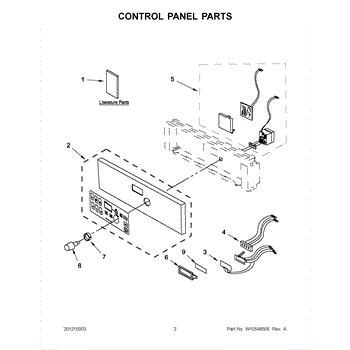

Parts for Kitchenaid KBMS1454BSS0: 01 - Control Panel Parts

This control panel is the user console that houses the range/oven controls and display, restoring command and feedback for cooking functions. Replaces a worn, cracked, or unresponsive console to regain normal control operation and readable display. What it does:

• Provides the front-facing buttons/touch controls and display area used to set oven and timer functions
• Transmits user commands to the appliance's control electronics so baking, broiling and timing work correctly
• Commonly replaces panels that are cracked, faded, or where buttons no longer register
• Can resolve symptoms such as unresponsive controls, missing or dim display segments, or cosmetic damage to the console

• One control panel (console) as shown

• Disconnect power to the appliance at the breaker before starting any repair
• Handle with care to avoid scratching the display or damaging connectors; use appropriate tools for removing trim/fasteners
• Keep screws and small parts organized during disassembly and reassembly

This electronic control board is the appliance's main brain. It manages power and timing for key functions so settings respond correctly and cycles run as designed, helping restore normal operation when the original board fails.

• Directs power to components based on inputs from the controls and sensors
• Coordinates cycle timing and overall operation
• Drives the display and status indicators

• Disconnect power at the breaker or unplug the unit before servicing
• Use anti-static precautions; handle the board by its edges
• Photograph wiring and transfer connectors and any mounting hardware to the new board
• Restore power and run a test cycle/diagnostics per your model's service instructions
