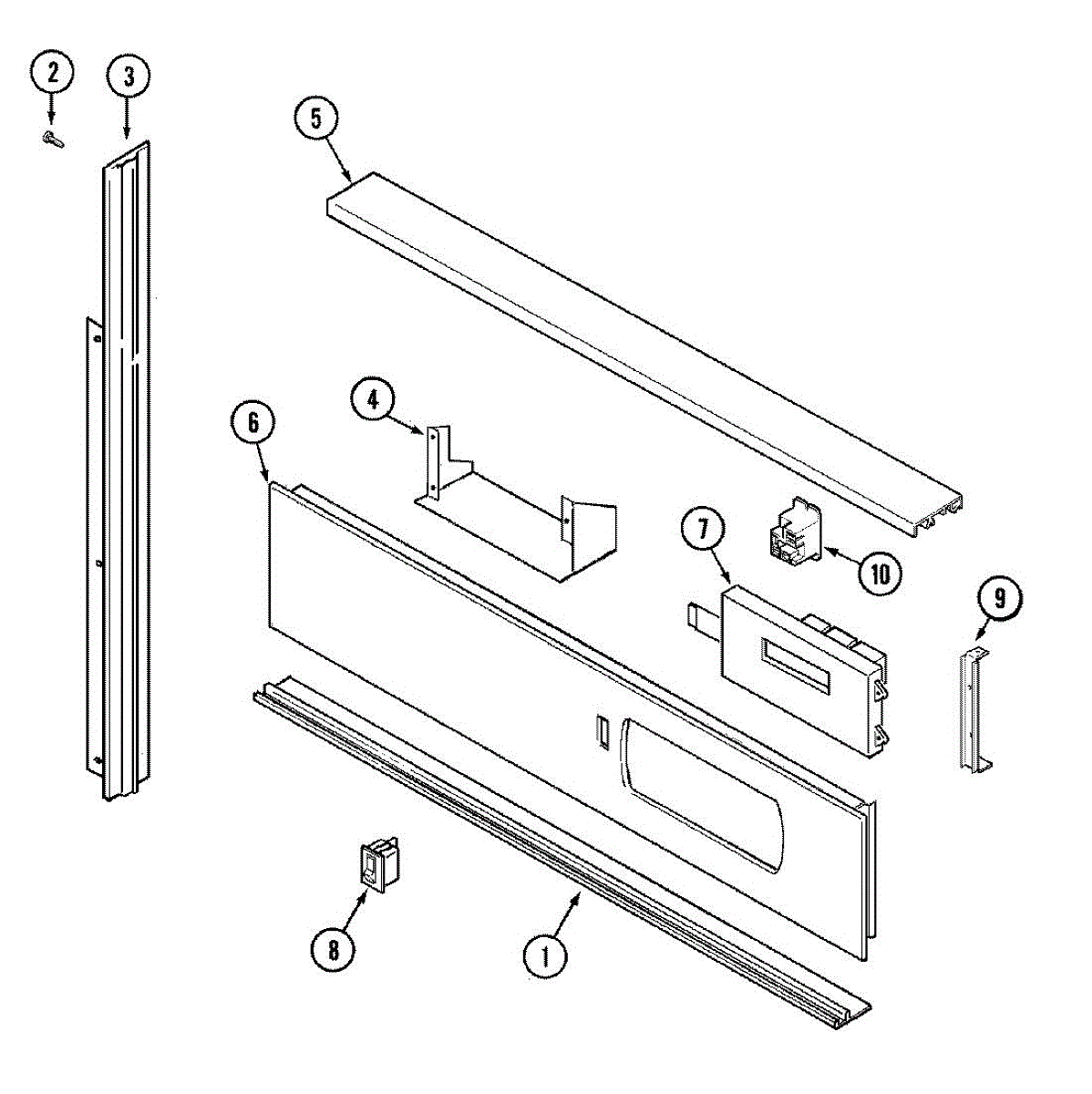

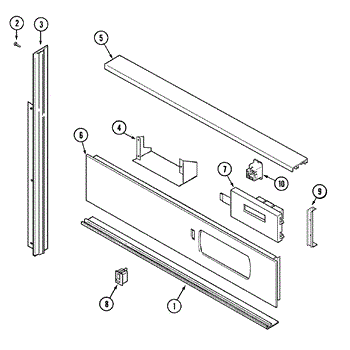

Parts for Magic Chef CEW3330ACB: 02 - Control Panel Parts

Color: Black. For biscuit order 98008169. For white order WP98008544.

Color: Black

This auxiliary relay is an electrical switch used by the control to route line voltage to high-demand components. Replacing a weak or failed relay restores reliable power delivery for consistent heating and fan operation, depending on the model.

• Switches power to elements, fans, or other high-load components when signaled by the control
• Offloads high current from the electronic control for durability and reliability
• Common symptoms can include: oven not heating or heating intermittently; element or blower won't run; audible clicking with no heat; discoloration or melting at relay terminals
• Supports stable operation by providing a dedicated, serviceable switching point in the circuit

• Disconnect power at the breaker and verify no voltage before servicing
• Access the relay near the control/wiring harness; note its mounting orientation
• Move wires one at a time to matching terminals; ensure snug spade connections and repair any heat-damaged wiring
• Secure the relay, reassemble panels, restore power, and test operation

A genuine replacement mounting screw that secures appliance panels and components to restore proper fit and reduce vibration. Use this screw to replace missing or damaged fasteners for a secure, rattle-free repair. What it does:

• Fastens panels, brackets, or components to the appliance frame
• Restores proper alignment and reduces rattling or vibration
• Prevents parts from coming loose during operation
• Works wherever the OEM screw W10828565 is specified

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Install only where the OEM screw is specified; do not overtighten
• Replace any stripped or damaged screws with this exact part
