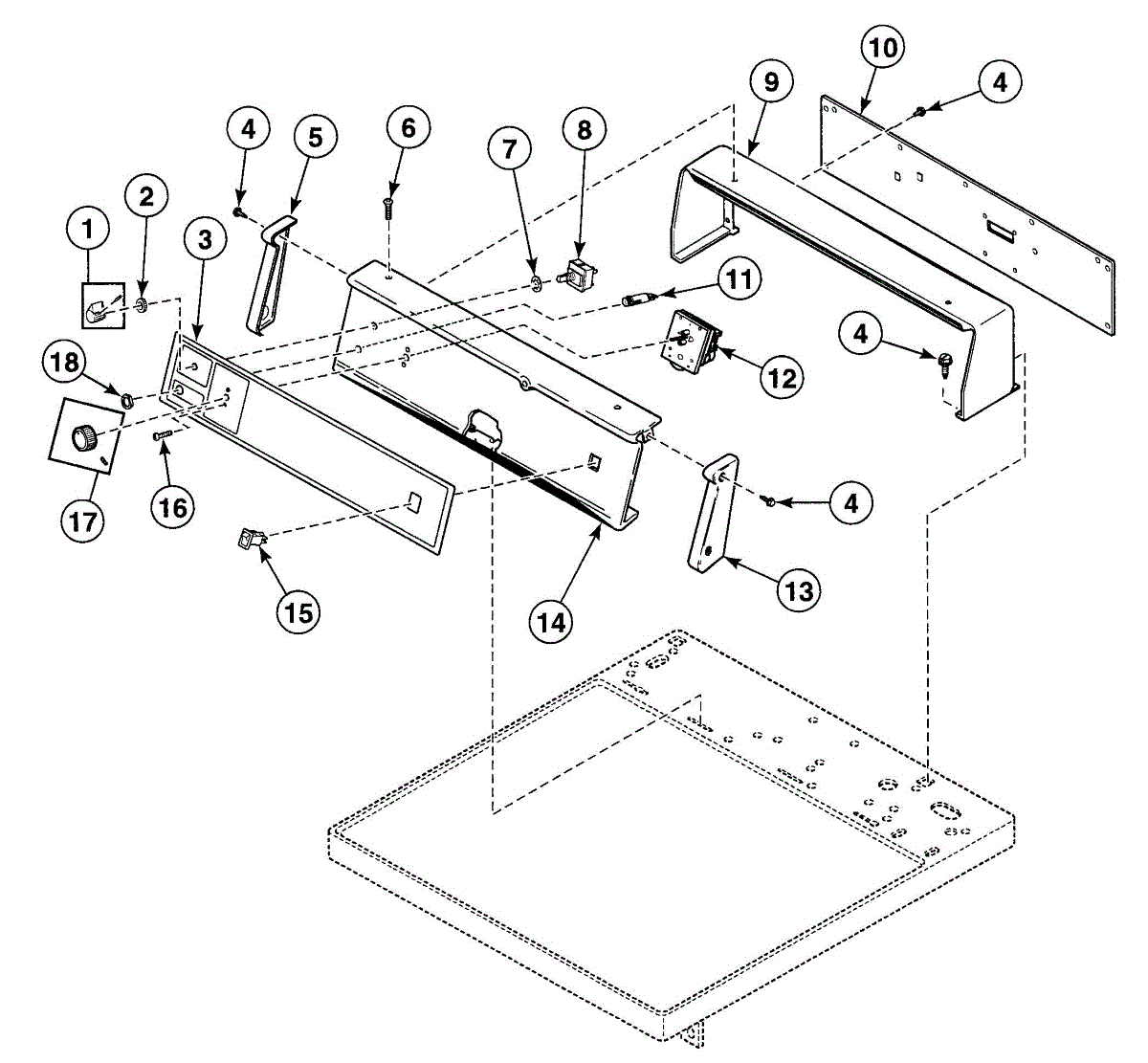

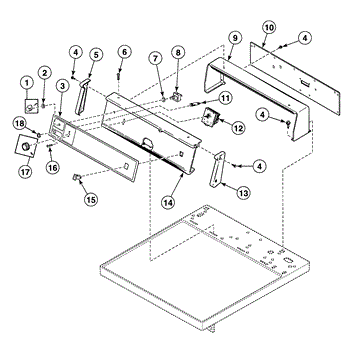

Parts for Speed Queen SDE807WF1500: Control Panel Parts

This switch knob fits onto the control switch shaft so you can select settings and operate the machine. Replacing a cracked, stripped, or missing knob restores smooth, reliable control and keeps daily use straightforward. What it does:

• Fits over the control switch shaft to turn the switch and choose settings
• Restores a secure grip and clear position when selecting options
• Helps resolve issues like slipping when turning or a knob that won't stay attached
• Common symptoms: cracked knob, stripped insert, loose or missing knob, difficulty selecting settings

• 1 switch knob

• Disconnect power before servicing
• Pull the old knob straight off; remove any retaining clip or set screw if present and save it
• Align the flat/D-shaft orientation and press the new knob fully onto the switch shaft
• Test the switch through all positions to confirm proper engagement

This replacement timer controls cycle sequencing and run time for compatible Speed Queen laundry machines, restoring proper cycle advancement and timing. Use it to replace a worn, stuck, or non-advancing timer for reliable operation. What it does:

• Advances washer/dryer cycles and signals when each cycle stage should start or stop
• Restores normal cycle progression when the timer knob or mechanism is stuck or skips steps
• Resolves intermittent or complete loss of timed functions when the original timer fails
• Interfaces with machine controls to trigger motors, valves, or heaters during cycles

• Disconnect power to the appliance before installing to avoid shock or injury
• Handle the timer carefully to avoid damaging terminals or the shaft/knob interface
• Basic hand tools and access to the control panel are typically required

This control panel assembly replaces the washer's user console to restore cycle selection and display functions, giving you clear controls and reliable operation. Fits into the front console area and houses the buttons and interface components. What it does:

• Provides the push-button controls and display used to select wash cycles and options
• Transmits user selections to the washer's control board so cycles start and run correctly
• Replaces cracked, unresponsive, or cosmetic-damaged panels that affect operation or usability
• Helps resolve symptoms like unresponsive buttons, missing display indicators, or intermittent command input

• One complete control panel assembly as pictured

• Disconnect power before starting; follow manufacturer service manual for safe removal and reassembly
• Use appropriate tools to remove the console trim and fasteners; handle wiring connectors gently
• Verify connectors are fully seated and routing is correct before restoring power

This DPST rocker switch controls two circuits with a single actuator, restoring reliable on/off operation for affected controls. It replaces a worn or broken rocker switch to get your appliance responding to user input again. What it does:

• Opens and closes two independent circuits simultaneously (double pole, single throw) with an Off-(On) rocker action
• Commonly used for power or function control on laundry equipment control panels
• Symptoms it can fix: unresponsive or intermittent control activation, loose or cracked rocker actuator, or complete loss of switch function
• Designed to match OEM form and function for direct replacement on compatible control assemblies

• One rocker switch (DPST Off-(On)) as shown

• Always disconnect power to the appliance before accessing controls to avoid shock hazard
• Removal typically requires opening the control panel or bezel; keep track of mounting hardware and orientation
• Verify terminal arrangement and wiring match before final installation; use proper connectors and secure connections
