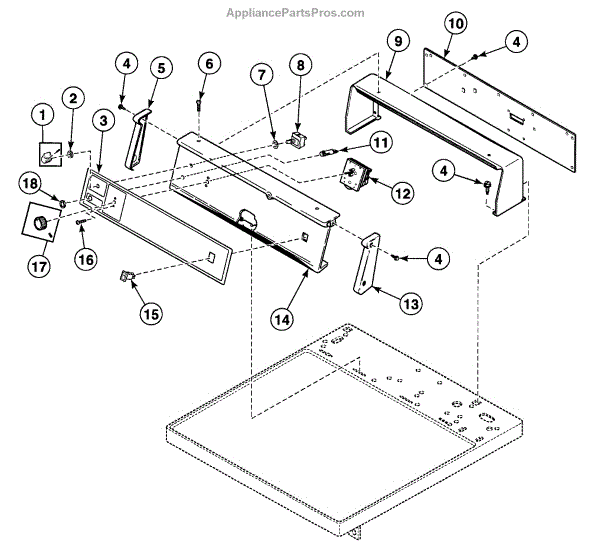

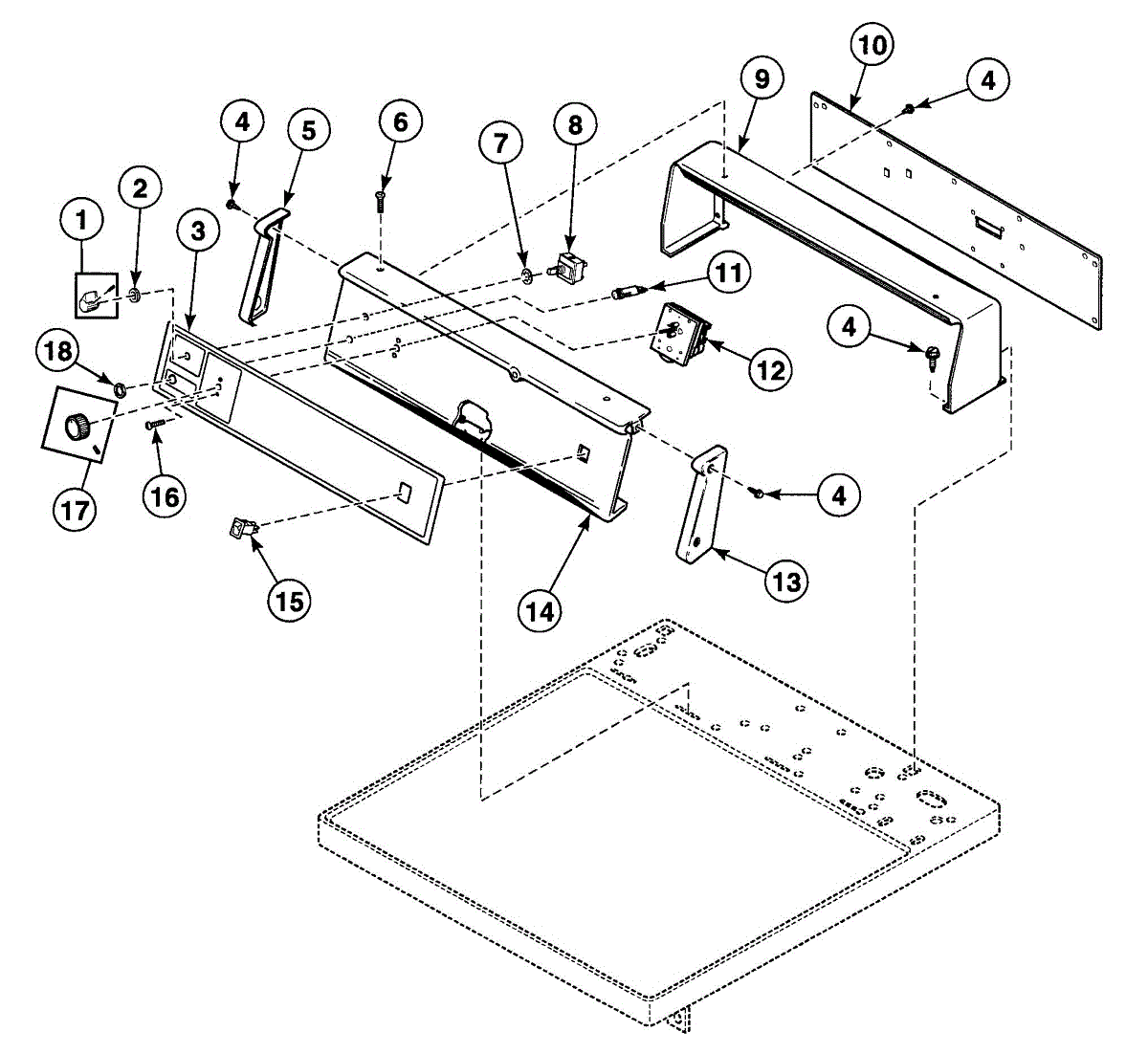

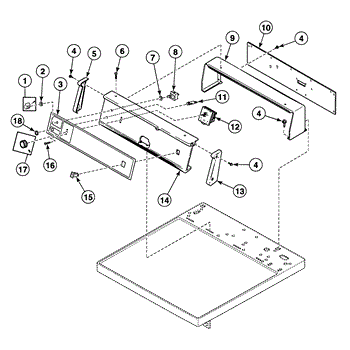

Parts for Speed Queen SDG809LF: Control Panel Parts

This switch knob fits onto the control switch shaft so you can select settings and operate the machine. Replacing a cracked, stripped, or missing knob restores smooth, reliable control and keeps daily use straightforward. What it does:

• Fits over the control switch shaft to turn the switch and choose settings
• Restores a secure grip and clear position when selecting options
• Helps resolve issues like slipping when turning or a knob that won't stay attached
• Common symptoms: cracked knob, stripped insert, loose or missing knob, difficulty selecting settings

• 1 switch knob

• Disconnect power before servicing
• Pull the old knob straight off; remove any retaining clip or set screw if present and save it
• Align the flat/D-shaft orientation and press the new knob fully onto the switch shaft
• Test the switch through all positions to confirm proper engagement

This replacement timer controls cycle sequencing and run time for compatible Speed Queen laundry machines, restoring proper cycle advancement and timing. Use it to replace a worn, stuck, or non-advancing timer for reliable operation. What it does:

• Advances washer/dryer cycles and signals when each cycle stage should start or stop
• Restores normal cycle progression when the timer knob or mechanism is stuck or skips steps
• Resolves intermittent or complete loss of timed functions when the original timer fails
• Interfaces with machine controls to trigger motors, valves, or heaters during cycles

• Disconnect power to the appliance before installing to avoid shock or injury
• Handle the timer carefully to avoid damaging terminals or the shaft/knob interface
• Basic hand tools and access to the control panel are typically required

This DPST rocker switch controls two circuits with a single actuator, restoring reliable on/off operation for affected controls. It replaces a worn or broken rocker switch to get your appliance responding to user input again. What it does:

• Opens and closes two independent circuits simultaneously (double pole, single throw) with an Off-(On) rocker action
• Commonly used for power or function control on laundry equipment control panels
• Symptoms it can fix: unresponsive or intermittent control activation, loose or cracked rocker actuator, or complete loss of switch function
• Designed to match OEM form and function for direct replacement on compatible control assemblies

• One rocker switch (DPST Off-(On)) as shown

• Always disconnect power to the appliance before accessing controls to avoid shock hazard
• Removal typically requires opening the control panel or bezel; keep track of mounting hardware and orientation
• Verify terminal arrangement and wiring match before final installation; use proper connectors and secure connections
