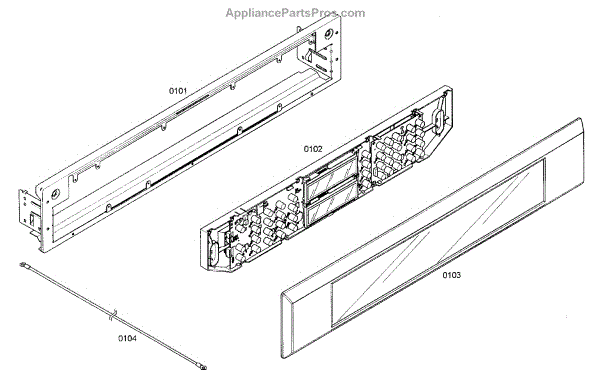

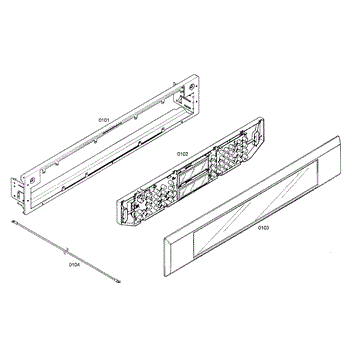

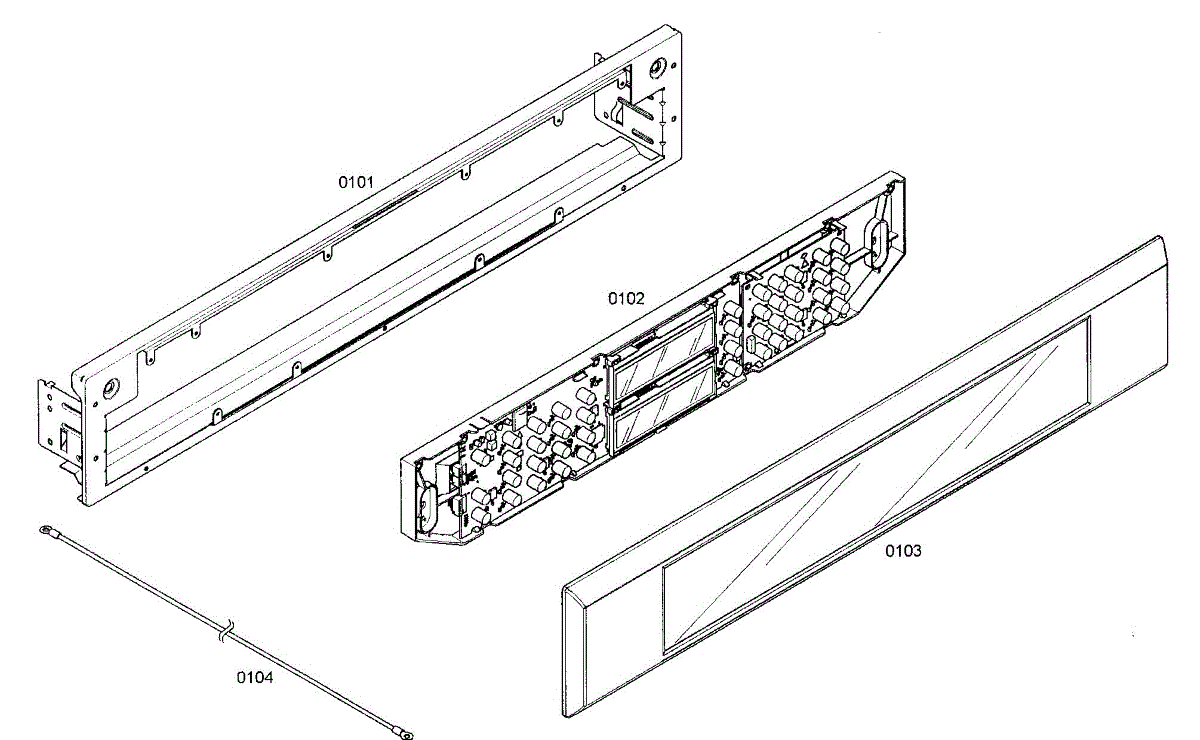

Parts for Thermador ME302ES01: Control Panel Parts

User interface control panel that provides the buttons and display used to select cycles and view appliance status. Replaces a faulty control panel to restore responsive controls and clear cycle/status feedback. What it does:

• Registers user input from the touchpad/buttons; may fail if buttons are unresponsive or intermittent.
• Displays cycle progress and status indicators; can show blank, garbled, or missing segments when faulty.
• Sends user commands to the appliance control system; failure can prevent cycles from starting or changing.
• Common symptom linkage: unresponsive controls, no display, incorrect cycle selection, or persistent status/errors.

• Always disconnect power (unplug or shut off breaker) before servicing the appliance.
• Handle the display/overlay and ribbon/wire connectors carefully to avoid damage.
• Remove and replace the console using correct fasteners; ensure all connectors are fully seated.

This cable harness routes power and signals between appliance controls and components to restore reliable electrical connections and normal operation. It replaces damaged, frayed, or disconnected wiring to help resolve intermittent or failed component function. What it does:

• Provides factory-style wiring and connector ends for secure electrical connections
• Re-establishes communication between control board and sensors, switches, or motors
• Helps eliminate intermittent power, no-start, or unresponsive control symptoms caused by damaged wiring
• Prevents arcing and shorting from exposed or broken wires when installed correctly

• One complete cable harness assembly as shown

• Disconnect power and water before starting work to avoid shock or injury
• Handle connectors by the housings; avoid pulling on individual wires
• Verify connector orientation and full seating; secure routing to original clips/retainers

This replacement cable harness is the factory-style wiring assembly that routes power and signals between the control and key components. It restores secure electrical connections for reliable appliance operation. What it does:

• Transfers power and control signals between the control board and components such as motors, pumps, switches and sensors
• Replaces damaged, frayed or corroded wiring that can cause intermittent operation or loss of function
• Helps resolve symptoms like no power to components, failure to start, intermittent cycles or unexpected error codes
• Maintains factory routing and connector fit to ensure correct electrical connections

• Disconnect power to the appliance before servicing to avoid shock
• Compare the new harness to the original and route connectors the same way
• Handle connectors by the housings; do not pull on wires

This cable harness connects key electrical components to restore power and signal flow in the appliance. It replaces a damaged or faulty wiring harness to help return controls and components to normal operation. What it does:

• Carries power and control signals between the control board and components
• Replaces frayed, burned, or broken wires that cause intermittent or no operation
• Common symptoms it can address: appliance won't start, controls unresponsive, intermittent cycles, or error codes related to open/shorted circuits
• Helps ensure secure connector mating and correct signal routing when installed properly

• Disconnect power at the breaker or unplug the appliance before starting any repairs
• Compare the new harness to the old one and follow the appliance wiring diagram for correct routing and connector placement
• Secure connectors fully; avoid sharp bends or pinching the wires during reassembly
