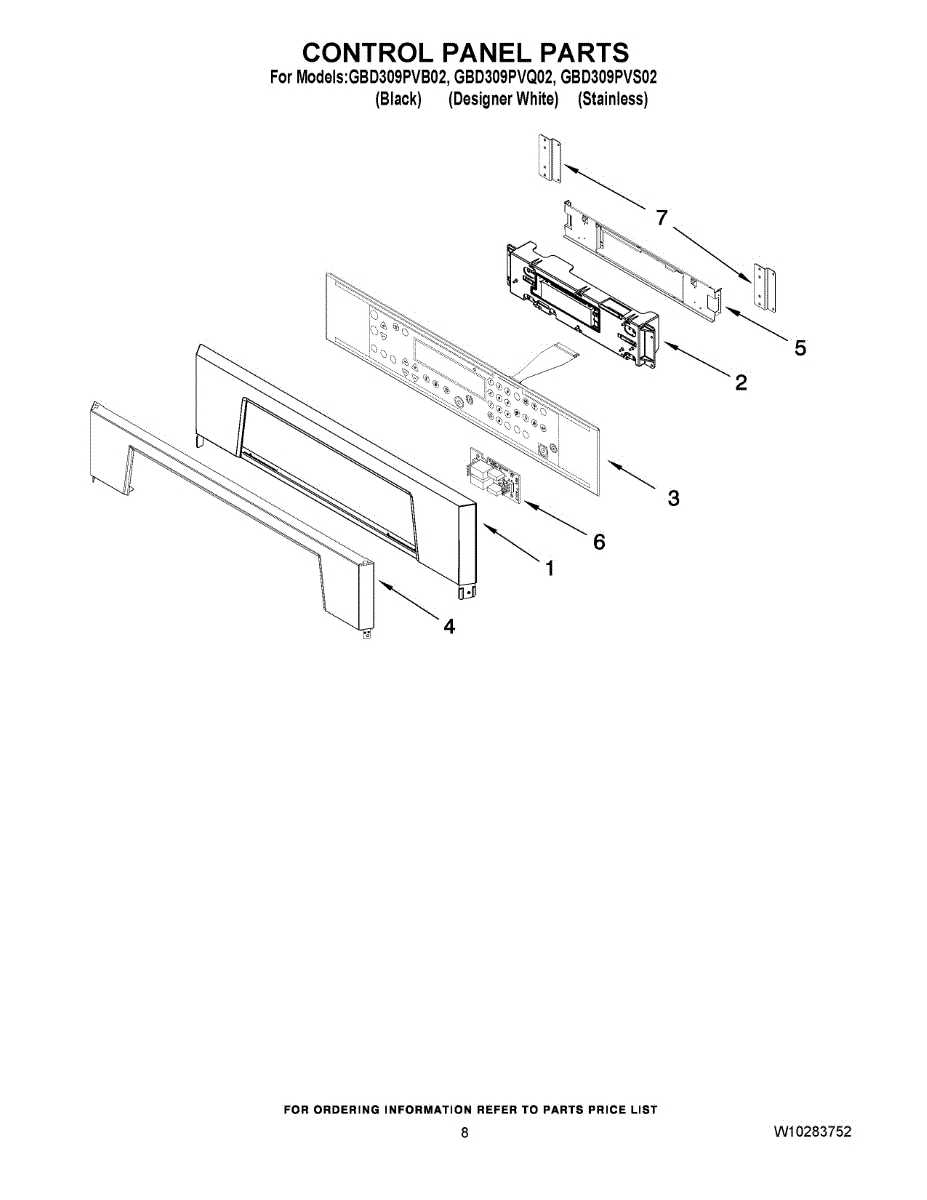

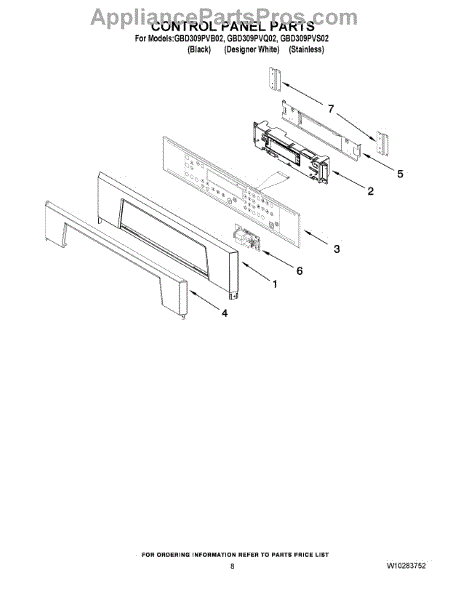

Parts for Whirlpool GBD309PVS02: 06 - Control Panel Parts

This control panel assembly houses the appliance's user interface, buttons and display so you can operate cycles and settings as intended. Replacing a damaged or worn panel restores a clean, functional console and readable controls. What it does

• Replaces the entire front console housing that holds the buttons and display.
• Restores responsive pushbuttons and visible indicators when the original panel is cracked, faded or otherwise damaged.
• Secures and protects internal switch and ribbon cable connections from everyday wear.
• Helps address symptoms such as loose or missing buttons, a cracked face, or faded markings that make controls hard to read.

• Disconnect power before beginning repair to avoid shock or damage to electronics.
• May require removal of the console trim and careful disconnection of ribbon cables or wire harnesses; keep fasteners organized.
• Handle the new panel and its connectors gently to avoid bending pins or scratching the display.

This is the front control panel assembly in a black finish. It restores a clean look and secure mounting for the appliance's user interface area so controls are easy to access and properly supported. What it does:

• Forms the front interface surface and mounting structure for the control components
• Aligns and supports the keypad/user interface and display area
• Shields internal components around the control area from heat, moisture, and debris
• Helps resolve issues such as a cracked, warped, or broken panel and loose/misaligned controls
• Refreshes worn or damaged exterior appearance

• 1 control panel assembly in black

• Disconnect power at the breaker before servicing; allow the appliance to cool completely
• Support the panel while removing the last fasteners to prevent dropping or damage
• Transfer any attached components from the old panel to the new one one-for-one, as applicable
• Seat ribbon cables/connectors fully and avoid pinching wires; use ESD-safe handling if moving electronic boards

This membrane switch touch pad replaces a worn or unresponsive control panel interface so you can restore reliable button response and regain normal oven/range control. It provides a direct user interface for selecting functions and settings. What it does:

• Registers user button presses on the oven/range control panel so the appliance accepts commands
• Replaces damaged, faded, or unresponsive keys that stop cycles from starting or changing settings
• Can correct intermittent or non-working touchpad behavior caused by wear or surface damage
• Works with the existing control housing and ribbon/connector to send signals to the control board

• One membrane switch touch pad

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Handle the flex ribbon and contacts carefully; avoid bending or creasing the conductor area
• Align the switch properly in the control housing and reconnect the ribbon/connector securely
• Test function with power restored before fully reassembling the control panel

This is a 30-inch stainless-steel trim panel that restores the front appearance and protective finish of the appliance. It gives a clean, finished look while covering damaged or missing factory trim. What it does

• Replaces damaged, dented, scratched or corroded front cladding to restore appearance
• Covers gaps and hides underlying cabinet or bracket edges for a finished look
• Protects the appliance front from everyday bumps and spills
• Matches stainless finish used on the original factory trim

• Removal of existing trim may require removing adjacent screws, clips or handles; retain fasteners for reinstallation
• Handle with care to avoid scratching the stainless finish; use gloves and a soft surface during install
• Align panel to existing mounting points before tightening fasteners to prevent warping or gaps

This latch sister board controls the oven's motorized door lock used for self-clean and safety interlock functions. Replacing a failed board restores reliable lock/unlock operation so your oven can start cycles and complete cleaning as designed.

• Powers the door-latch motor when commanded by the main control
• Engages or releases the door lock during self-clean cycles
• What's included: One latch sister board.

• Disconnect power at the breaker before servicing
• Use ESD protection and handle the board by the edges
• Access is typically behind the control/upper panel; photograph wiring and transfer connectors one at a time
• After reassembly, verify latch operation before running a full self-clean
