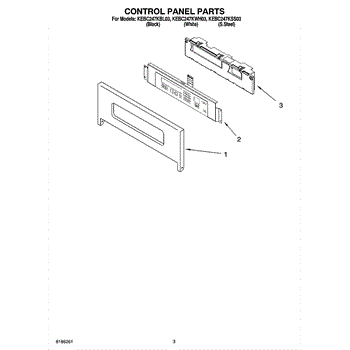

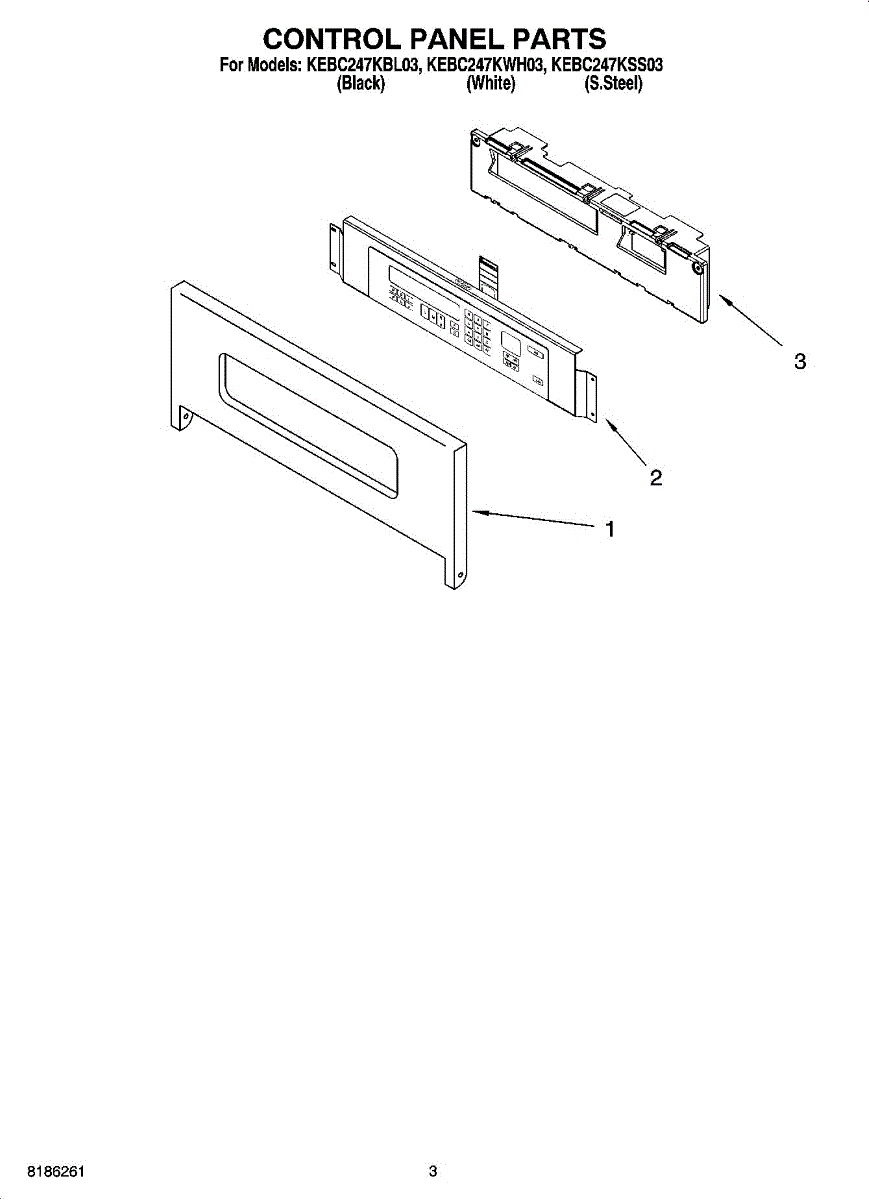

Parts for Kitchenaid KEBC247KBL03: 02 - Control Panel Parts

This control panel is the main user interface for the appliance, restoring button and display functions so cycles and settings can be selected and monitored. It delivers a factory-fit replacement to regain reliable control. What it does:

• Replaces a worn, cracked, or unresponsive control panel to restore button and touch operations
• Restores display readouts and control feedback so cycles and options can be selected normally
• Common symptom fix: unresponsive buttons, blank or erratic display, or missing control functions
• Works as the user-facing assembly that connects to the appliance's electronic control system

• One control panel assembly

• Disconnect power to the appliance before starting any repair to avoid shock
• Basic hand tools typically required; remove trim or bezels carefully to access mounting screws
• Label connectors before disconnecting and reconnect securely; avoid forcing plastic clips

Screw for side trim.

Screw for side trim.

Screw for control panel.

This latch sister board controls the oven's motorized door lock used for self-clean and safety interlock functions. Replacing a failed board restores reliable lock/unlock operation so your oven can start cycles and complete cleaning as designed.

• Powers the door-latch motor when commanded by the main control
• Engages or releases the door lock during self-clean cycles
• What's included: One latch sister board.

• Disconnect power at the breaker before servicing
• Use ESD protection and handle the board by the edges
• Access is typically behind the control/upper panel; photograph wiring and transfer connectors one at a time
• After reassembly, verify latch operation before running a full self-clean
