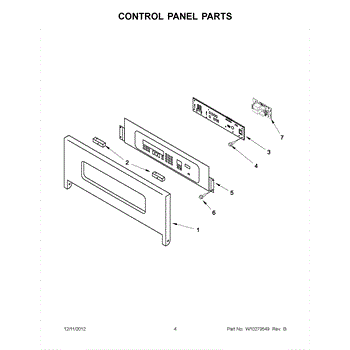

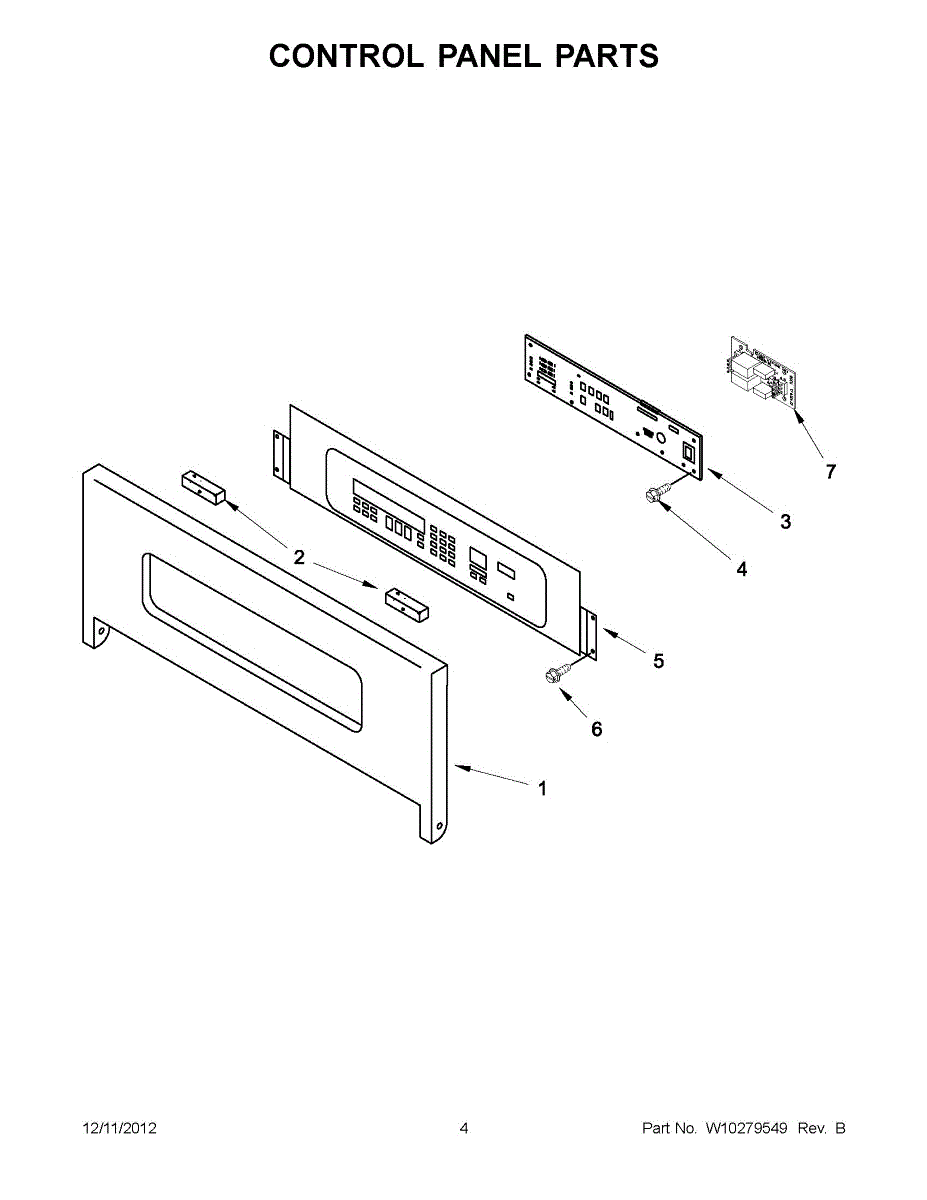

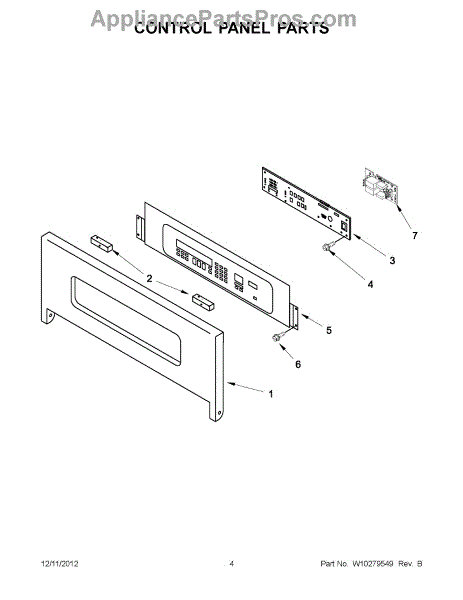

Parts for Kitchenaid KEBC247VWH02: 02 - Control Panel Parts

Replace your oven's control panel touch pad if buttons are unresponsive, cracked, or worn. This interface panel installs on the front control area.

Replacement control panel touch pad for your wall oven. Restores button and display interface when original is cracked, worn, or unresponsive.

If your oven display is blank or buttons aren't responding, this electronic control panel restores touch controls and visible display functionality.

Screw for control panel.

White membrane keypad overlay for oven control panels. Restores tactile button response and seals console from spills. Replaces worn, cracked, or faded keypads.

Mounting screw for securing trim, hinges, drawer guides, and interior components. Replace if missing, stripped, or broken during repair or maintenance.

This latch sister board controls the oven's motorized door lock used for self-clean and safety interlock functions. Replacing a failed board restores reliable lock/unlock operation so your oven can start cycles and complete cleaning as designed.

• Powers the door-latch motor when commanded by the main control
• Engages or releases the door lock during self-clean cycles
• What's included: One latch sister board.

Install notes:

• Disconnect power at the breaker before servicing
• Use ESD protection and handle the board by the edges
• Access is typically behind the control/upper panel; photograph wiring and transfer connectors one at a time
• After reassembly, verify latch operation before running a full self-clean
