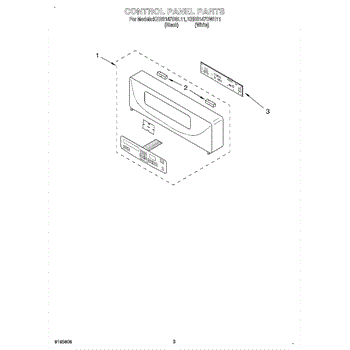

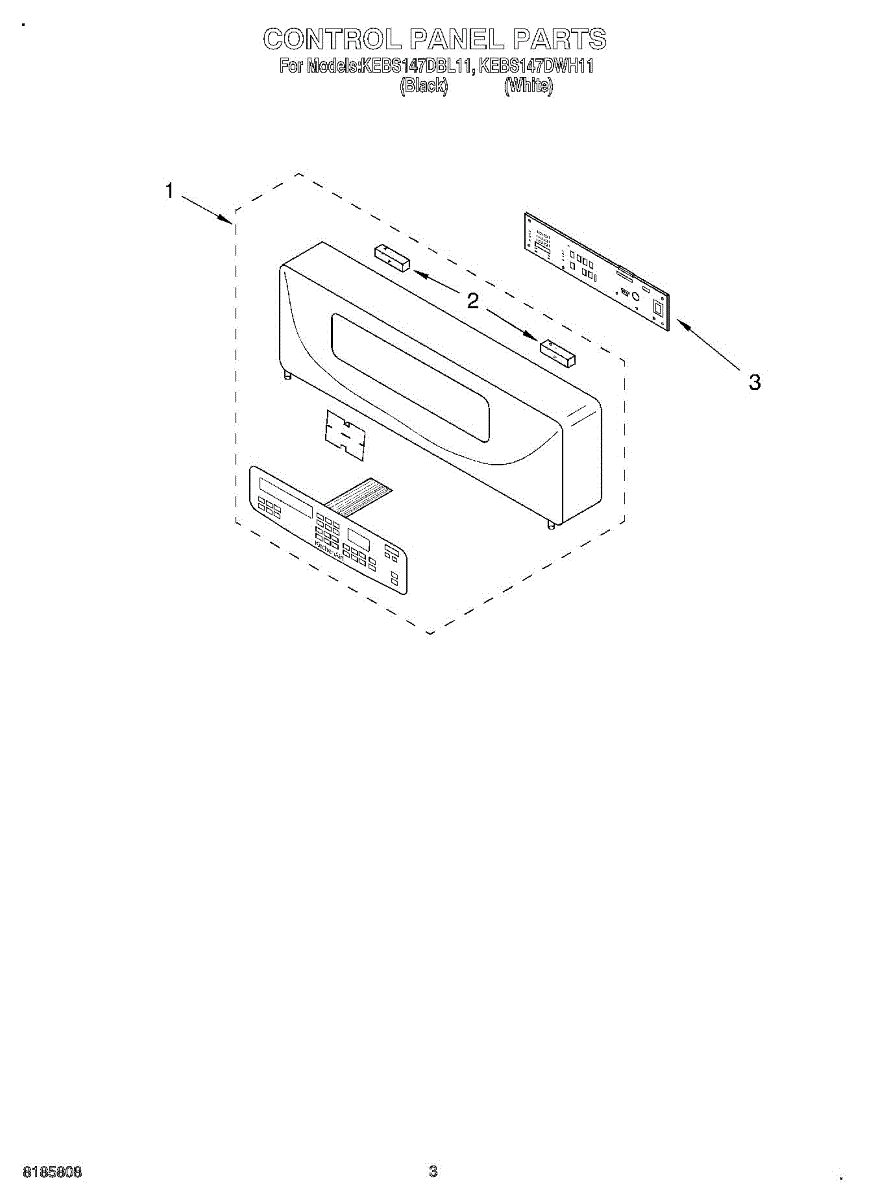

Parts for Kitchenaid KEBS147DBL11: 02 - Control Panel Parts

This control panel assembly with integrated membrane switch provides the user interface for selecting cycles and settings. Replacing a damaged or worn panel restores button response and normal control operation. What it does:

• Replaces a worn, torn, or unresponsive membrane switch and front control surface
• Restores button/keypad responsiveness so selections register properly
• Provides the complete front control surface used to change cycles and options
• Helps resolve symptoms like non-registering buttons, visibly damaged keys, or a detached control panel

• One control panel assembly with membrane switch

• Disconnect power (unplug or shut off breaker) before starting any repair
• Typically mounts to the appliance console; access may require removing the console or trim
• Handle the membrane surface and flex cable carefully to avoid damage

Screw for side trim.

Oven control

Screw for control panel.

Screw for side trim.
